Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operating high-power devices such as, for example, electrical
arc welders.
WE-EF LIGHTING
Installation and Maintenance
Instructions

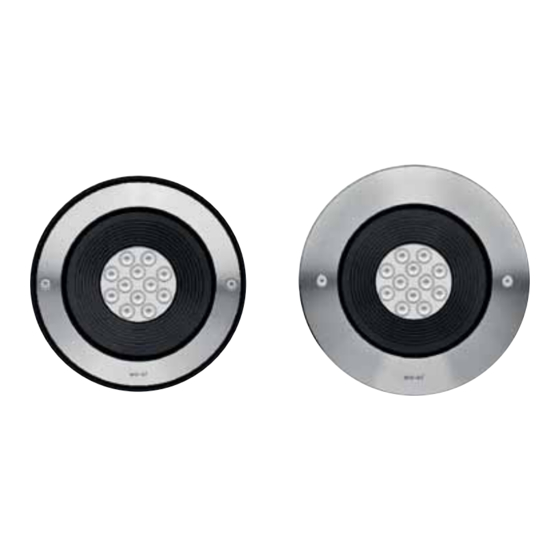

Inground Luminaire
ETC330-FS
EVC330-FS
ETC340-FS
EVC340-FS
ETC330-FS CC
EVC330-FS CC
ETC340-FS CC
EVC340-FS CC
ETC330-FS TW
EVC330-FS TW
ETC340-FS TW
EVC340-FS TW
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF ETC330-FS
Summary of Contents for WE-EF ETC330-FS
- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions Inground Luminaire ETC330-FS EVC330-FS ETC340-FS EVC340-FS ETC330-FS CC EVC330-FS CC ETC340-FS CC EVC340-FS CC ETC330-FS TW EVC330-FS TW ETC340-FS TW EVC340-FS TW Surge Protection Do not open during installation This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
- Page 2 Inground Luminaire ETC330-FS EVC330-FS ETC330-FS TW EVC330-FS TW ETC330-FS CC* EVC330-FS CC* ETC340-FS EVC340-FS ETC340-FS CC* EVC340-FS CC* ETC340-FS TW EVC340-FS TW IP67, Class I, ta = 40°C Accessories: DMX Wireless* 22AWG - 18AWG for ETC/EVC330-FS CC 430-0018 ø 0.217 - 0.472 in...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on. For operation as colour changer the inground of the ETC/EVC300-FS CC series require a DMX control signal (DALI on request). -
Page 4: Installation Methods
Installation Installation Methods The product must be installed and maintained by Attention: The luminaire is factory-sealed and does not need to be opened during installation. latest building/construction and/or electrical regula- tions and relevant legislation. For proper installation, use the supplied installation blockout. - Page 5 Phase One Blockout Installation Procedure 1) Ensure that proper drainage is provided for 2) Ensure a suitable recess. the shown installation methods: a) In landscape/paved areas, sand or concrete with gravel base (Fig. I). b) With fully concreted installation, drainage piping must be provided (Fig.
- Page 6 5) Set mounting ring B/M in position. Arrow R 6) Replace blockout cover Z prior to on mounting ring M is pointed towards the luminaire installation to prevent tripping object to be illuminated (wall, tree, column). hazard and concrete or dirt from getting into blockout.
- Page 7 Phase Two Luminaire Installation and Electrical Connection 9) Check that rating shown on luminaire label conforms with mains electrical supply. 03/17 IP67 ETC330-FS 120-277V/60/Hz, 0-10V 185-XXXX SOE XXXXXXX LED 4000K 12W item no. XXX (example) 10) Terminate cable E and mains supply cable O in...
- Page 8 12) Loosen countersunk screws C (do not turn out). Insert mounting lever L between head of countersunk screws C and cover lens. 13) Connect supply cables using supplied 14) Place housing A into installation blockout/ sealable junction box J and/or supplied mounting ring assembly B/M while aligning UL410-D wire nuts.
- Page 9 15) Remove lever L and tighten countersunk screws C 'hand-tight'.
- Page 10 WE-EF LIGHTING United States of America Tel +1 724 742 0030 Fax +1 724 742 0035 info.usa@we-ef.com TO9192W0422 © WE-EF 2022 Technical specifications are subject to change.
