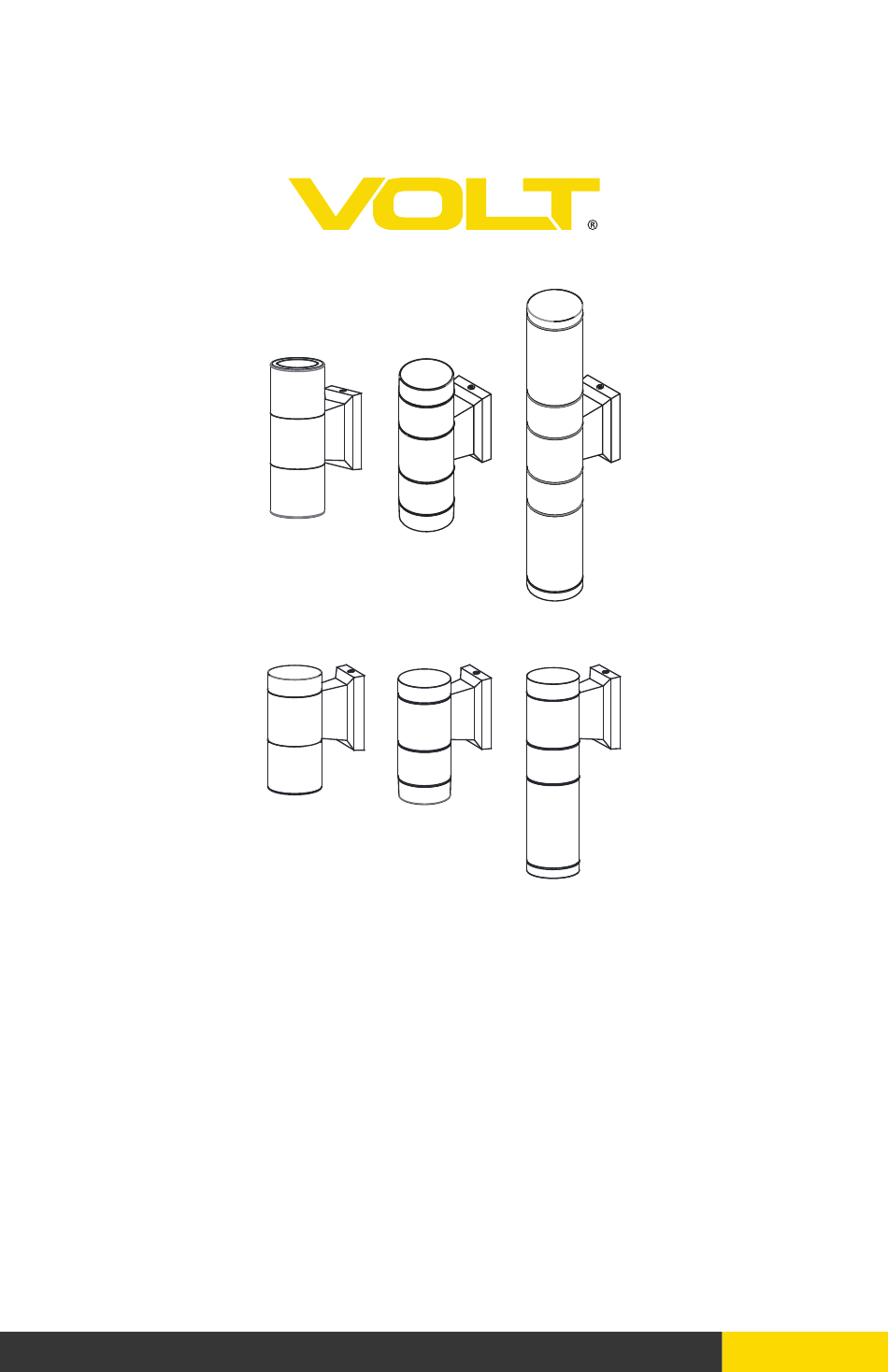

- Page 1 INSTALLATION INSTRUCTIONS LOW VOLTAGE LANDSCAPE LIGHTING VOLT Customizable Cast Brass Up/Down Sconce ® 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT Customizable Cast Brass Up/Down Sconce ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Mounting Bracket D. (2) Lock Screws B. (2) Mounting Screws E. (1) Fixture Body C. (2) Wall Anchors PARTS REQUIRED A. (1 or 2) Optional Lens 1 D. (1) Optional cover 4 (Part Number: VAC-GG17-BZZ) (Part Number: VAC-GG16-BZZ) B. -
Page 4: Product Dimensions
INSTALLATION INSTRUCTIONS VOLT Customizable Cast Brass Up/Down Sconce ® PRODUCT DIMENSIONS Assembly of Luminaire with Optional Lens Optional Lens 1 Optional Lens 2 Optional Lens 3 4.23” 2.43” 4.23” 4.23” 2.43” 2.43” 7.68” 3.5” 3.5” 15” 3.5” 7” 2” 2”... - Page 5 PRODUCT DIMENSIONS Assembly of Luminaire with Optional Lens and Cover Optional Lens 1 Optional Lens 2 Optional Lens 3 and Cover 4 and Cover 4 and Cover 4 4.23” 4.23” 4.23” 2.43” 2.43” 2.43” 3.5” 3.5” 3.5” 5.43” 5.83” 9.48” 2”...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Customizable Cast Brass Up/Down Sconce ® INSTALL LENS OR COVER Lens Cover Fixture Body Fixture Body Lens Thread the lens or cover onto the fixture body and hand tighten. Part Number: Part Number: Part Number: Part Number:...
-
Page 7: Install Mounting Bracket
REMOVE MOUNTING BRACKET Remove the mounting screws Mounting Screw from the fixture body then remove the mounting bracket. Mounting Bracket Mounting Screw Fixture Body INSTALL MOUNTING BRACKET 1. Place the mounting bracket at Main Low Voltage the desired location and mark Supply Cable WALL the two points on the wall... -
Page 8: Wire Connections
INSTALLATION INSTRUCTIONS VOLT Customizable Cast Brass Up/Down Sconce ® WIRE CONNECTIONS Using two UL Listed wire connectors (sold separately) connect the supply wires from the fixture body to the main low voltage supply cable leads. Main Low Voltage Supply Cable... - Page 9 MAINTENANCE – INSTALL/REPLACE MR16 LAMP Remove the lenses from the fixture to expose the MR16 lamp and replace it with the correct wattage and type marked on the fixture label. Reinstall the lenses. IMPORTANT: MR16 lamps must be protected from moisture and dust at all times.
- Page 10 INSTALLATION INSTRUCTIONS VOLT Customizable Cast Brass Up/Down Sconce ® 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 11 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 12 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2024, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
