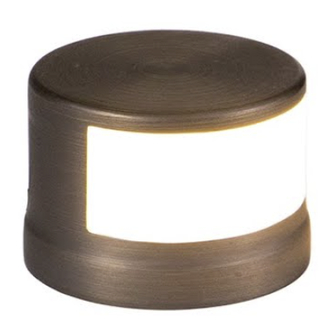

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Stemless Brass Bronze Directional Path Light ® ITEM: VPL-1053 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Stemless Brass Bronze Directional Path Light - VPL-1053 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body D. (3) Screws B. (1) Mounting Bracket E. (1) Coupling C. (3) Anchors Parts Required (Sold Separately) A. Mounting Accessory B. (1) G4 Bulb PRODUCT DIMENSIONS 2.58” 1.96” 2.71” REMOVE SHADE Remove the shade from the fixture body by removing the Shade screw on the bottom.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Stemless Brass Bronze Directional Path Light - VPL-1053 ® INSTALL G4 BULB Insert G4 bulb into the socket Socket G4 Bi-Pin Bulb properly with the correct wattage and type marked on the fixture label. CAUTION: Do not exceed maximum wattage marked on luminaire label.
- Page 5 Mounting Option A: Surface Mount Install Mounting Bracket 1. Attach the mounting Hole Mark bracket to your desired mounting surface. Use a pencil, mark 3 points on the mounting surface from Anchor 3 holes on the mounting bracket. Mounting WALL 2. Set the mounting bracket Screw aside and drill 1/4”...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Stemless Brass Bronze Directional Path Light - VPL-1053 ® Mounting Option B: Stake Mount Install Stake to Fixture Body Pass supply cables through Fixture the coupling and the stake. Thread the coupling and the stake to the fixture body Coupling and hand tighten until snug.
- Page 7 WIRE CONNECTIONS Wire Connectors Supply Cable Main Supply Cable Pigtail Strip both leads from the luminaire pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. Install/Replace Lamp Remove the fixture body from the mounting bracket or the stake first.
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
