Volt VAL-1813-40-BBZ Installation Instructions

Low voltage landscape lighting, woodsman single source led downlight

Download this manual

INSTALLATION INSTRUCTIONS

VOLT

Low Voltage Landscape Lighting

VOLT

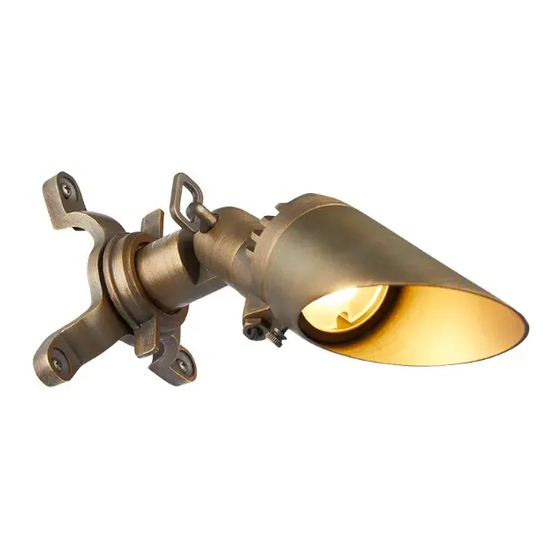

Woodsman Single Source LED Downlight

VAL-1813-40-BBZ

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

Specifications and product details subject to change without notice.

customersupport@voltlighting.com • 813.978.3700

- 1 -

Need help?

Do you have a question about the VAL-1813-40-BBZ and is the answer not in the manual?

Page 1 VAL-1813-40-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
Page 2 INSTALLATION INSTRUCTIONS Package Contents VOLT Woodsman Single Source LED Downlight ® VAL-1813-40-BBZ A. (1) Fixture Important: Please Read Before Installation Product Dimensions This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the 6 5/8”...
Page 3 INSTALLATION INSTRUCTIONS Install / Replace Optic VOLT Woodsman Single Source LED Downlight ® VAL-1813-40-BBZ Remove Glare Guard Wire Connections Loosen the set screw and remove the glare guard from Strip both leads from the the fixture. Fixture luminaire pigtail. Using...
Page 4 INSTALLATION INSTRUCTIONS VOLT Woodsman Single Source LED Downlight ® VAL-1813-40-BBZ Replace Optic Loosen the screws, and remove the optic from the fixture. Fixture Install the new optic in the fixture LED Board and reverse Step 6 - Step 4. Confirm the optic is properly aligned over the LED board before tightening down.
