INSTALLATION INSTRUCTIONS
VOLT
®
VOLT
®
VPL-1049-4-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2022, VOLT
reserved. customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting

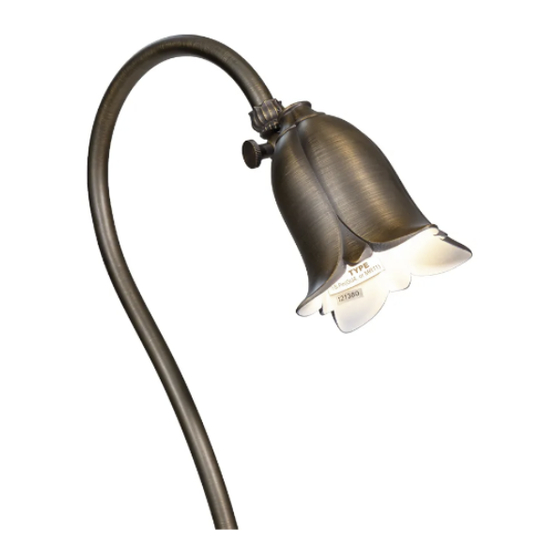

Low Voltage Path Light
Lighting, Lutz FL USA 33549 • All rights
®
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Volt VPL-1049-4-BBZ
Summary of Contents for Volt VPL-1049-4-BBZ
- Page 1 VPL-1049-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2022, VOLT Lighting, Lutz FL USA 33549 • All rights ® reserved. customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 INSTALLATION INSTRUCTIONS VOLT Low Voltage Path Light ® VPL-1049-4-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body Parts Required (Sold Separately) A. (1) Mounting Accessory B. (1) GU4 or M11 LED Bulb Product Dimensions 5” 7.5” 4.87” 4.87” 26” customersupport@voltlighting.com • 813.978.3700 - 3 -...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Low Voltage Path Light ® VPL-1049-4-BBZ Remove Lens Using a screwdriver, loosen screws on the lens and remove the lens from the Shade shade. Lens Screw Install Bulb Insert bulb with correct Socket wattage and type marked on fixture label and push into place.
- Page 5 Install Stake Determine the desired Board location for mounting the luminaire. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, Stake place a board on top of the stake while hammering. Note: If the ground is hard Ground and the stake is difficult to...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Low Voltage Path Light ® VPL-1049-4-BBZ Wire Connections Fixture Wires Wire Connectors Main Supply Cable Strip two leads from fixture wires. Using two UL listed wire connectors (sold separately), connect leads from fixture wires to main supply cable leads.
- Page 7 - 7 -...
- Page 8 Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2022, VOLT Lighting, Lutz FL USA 33549 • All rights ® reserved. customersupport@voltlighting.com • 813.978.3700 IS-VPL-1049-4-BBZ-ver1.pdf - 8 -...
