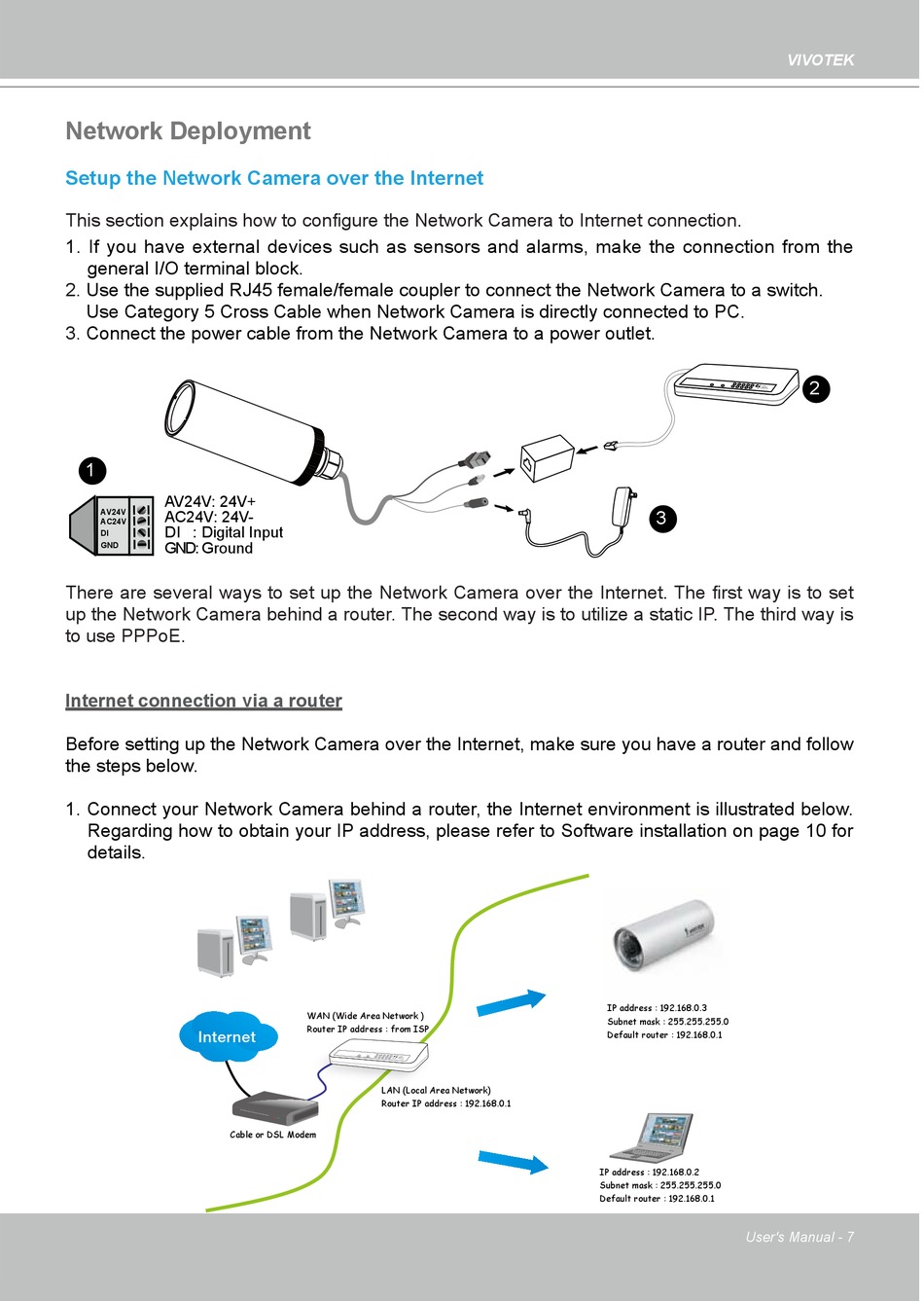

Network Deployment

Setup the Network Camera over the Internet
This section explains how to configure the Network Camera to Internet
1. If you have external devices such as sensors and alarms, make the connection from the
general I/O terminal block�
2� Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch.
Use Category 5 Cross Cable when Network Camera is directly connected to PC�
3� Connect the power cable from the Network Camera to a power outlet�
1
AV24V: 24V+
AV24V AC24V: 24V-
AC24V
DI : Digital Input
DI
GND: Ground
GND
There are several ways to set up the Network Camera over the
up the Network Camera behind a
to use PPPoE�
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below�
1� Connect your Network Camera behind a router, the Internet environment is illustrated below�
Regarding how to obtain your IP address, please refer to Software installation on page 10 for
details�
Internet
Cable or DSL Modem
router� The second way is to utilize a static
WAN (Wide Area Network )
Router IP address : from ISP
LAN (Local Area Network)
Router IP address : 192.168.0.1
connection�
3
Internet� The first way is to set
IP� The third way is
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
User's Manual - 7
VIVOTEK
2
