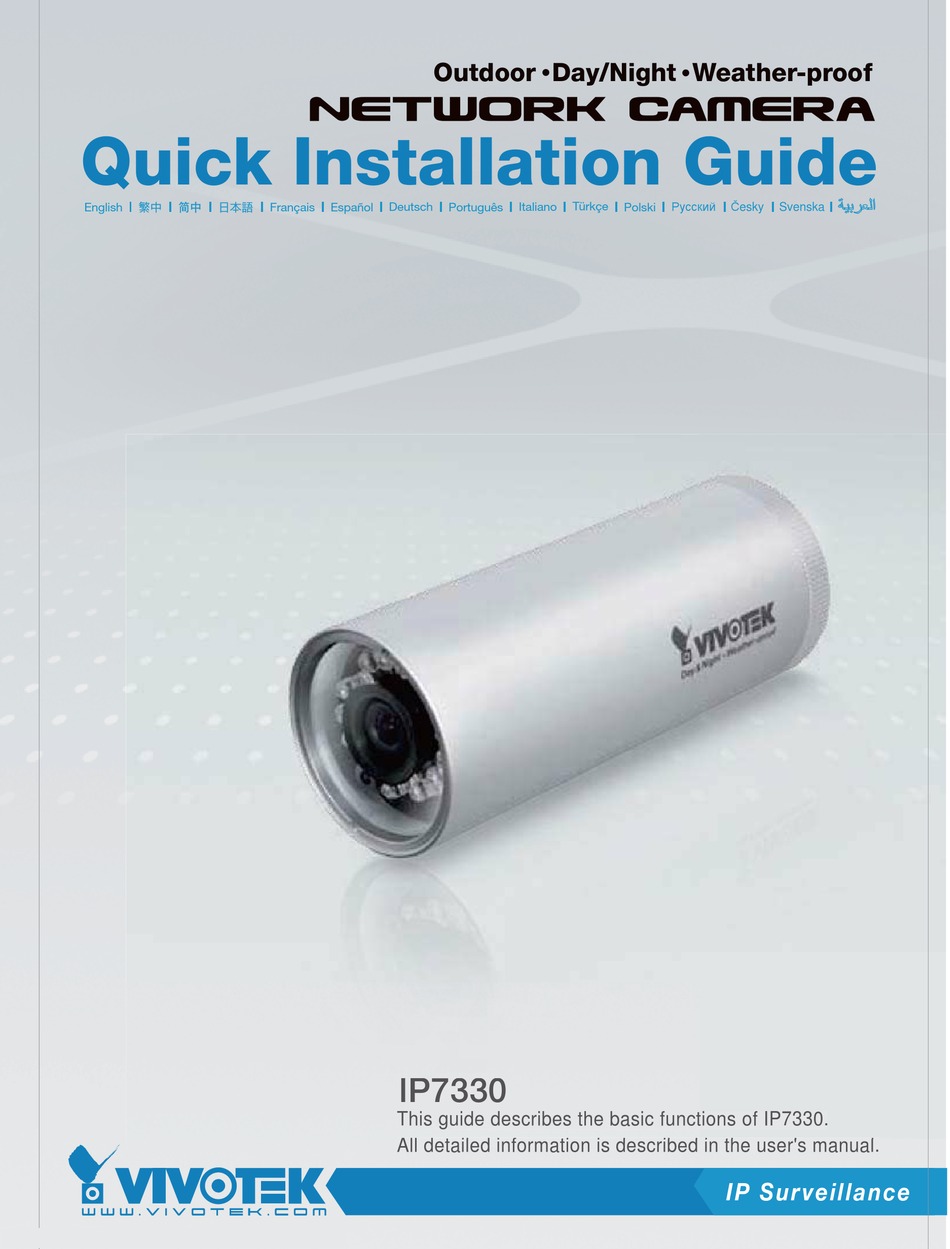

Page 1: Quick Installation Guide
Polski Svenska IP7330 IP7330 This guide describes the basic functions of IP7330. This guide describes the basic functions of IP7330. All detailed information is described in the user's manual. All d t il d i f ib d i th... -
Page 2: Warning Before Install
Warning Before Install Power off the Network Camera as Refer to your user’s manual for the soon as it is found smoking or smelt operating temperature. unusual. Contact your distributor when such cases happen. Do not touch the Network Camera Do not place the Network Camera on when it’s lightening. -
Page 3: Package Contents
Package Contents Liquid tight connectors (3 holes, for IP7330 backup use) Silica gel Camera stand Power adapter RJ45 female/female coupler Quick installation guide / Software CD Warranty card ST7501 Central Management Software EN-2... -
Page 4: Physical Description
Physical Description Front panel IR LED Lens Light sensor Back panel Status LED Reset button Connectors General I/O terminal block Ethernet 10/100 RJ45 plug Power cord socket (black) EN-3... -
Page 5: Hardware Installation
Hardware Installation 1. Loose the liquid tight connectors, and then remove the rubber. 2. Loose the back cover. 3. Tear down the aluminum foil vacuum bag and take out the silica gel. Attach the supplied silica gel to the inner side of the Network Camera. (Please replace the silica gel with a new one if you open the back cover after installation.) 4. -
Page 6: Network Deployment
Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, make connections from general I/O terminal block. AV24V: 24V+ AV24V AC24V: 24V- AC24V : Digital Input 2. Use the supplied RJ45 female/female GND : Ground coupler to connect the Network Camera to a switch. - Page 7 Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable. See the following illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and...
-
Page 8: Assigning Ip Address
"Next" button to continue the program. Installation Wizard 2 3. The program will search the VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect the Internet Explorer to the Network Camera. -
Page 9: Ready To Use
Ready to Use 1. Access to the Network Camera from the Internet. 2. Retrieve live video through web browsers or recording software. For further setup, please refer to user’s manual on the software CD. EN-8...
