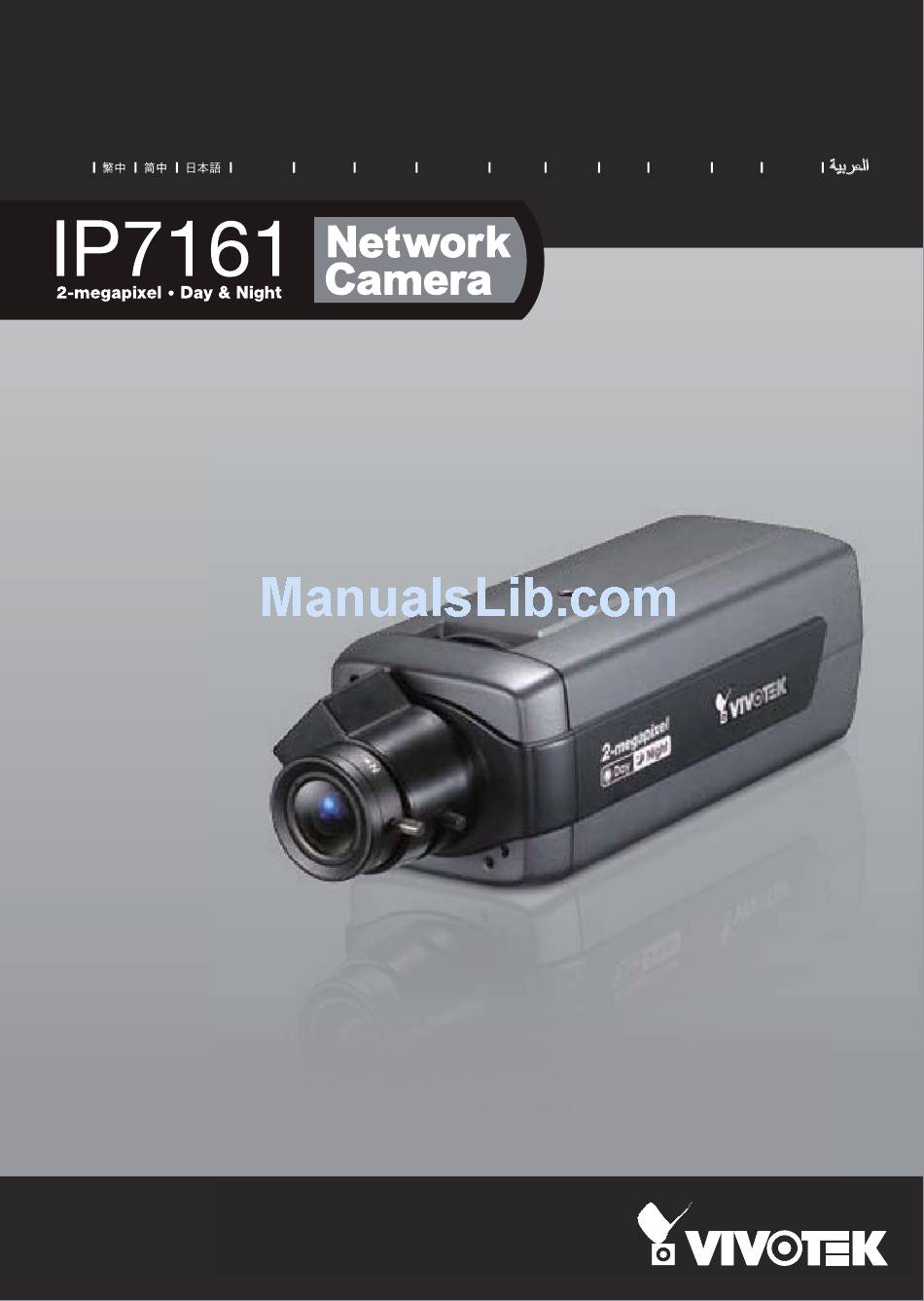

Page 1: Quick Installation Guide
Quick Installation Guide Türkçe Français Deutsch Italiano Polski Русский Česky Svenska English Español Português... - Page 2 Warning Before Installation Power off the Network Camera as soon as smoke or unusual odors are detected. Contact your distributor in the event of occurrence. Do not place the Network Camera around heat sources, such as a television or oven. Keep the Network Camera away from direct sunlight.
- Page 3 Do not place the Network Camera on unsteady surfaces. Do not disassemble the Network Camera. Do not insert sharp or tiny objects into the Network Camera. Do not touch the Network Camera during a lightning storm. Do not drop the Network Camera.
-
Page 4: Package Contents
Package Contents IP7161 Camera Stand Quick Installation Guide Warranty Card Power Adapter CS-mount Lens Software CD L-type Hex Key Wrench... -
Page 5: Physical Description
Physical Description Front Panel Light Sensor Lens Back Panel Status LED Microphone In Ethernet 10/100 RJ45 Socket Recessed Reset Button Lens Audio Out External/Internal MIC Switch Built-in Microphone SD/SDHC Card Slot Power Cord Socket General I/O Terminal Block Focus Controller Zoom Controller... -
Page 6: Mounting The Lens To The Camera
Mounting the Lens to the Camera 1. Mount the lens by turning it clockwise onto the camera mount until it stops. If necessary, turn the lens counterclockwise slowly until it gets the best attitude. 2. Connect the lens cable plug to the camera connector. For further setup, please refer to the lens’... -
Page 7: Power Over Ethernet (Poe)
Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch. -
Page 8: Assigning Ip Address
"Next" button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer. -
Page 9: Ready To Use
Ready to Use 1. Access the Network Camera from the LAN. 2. Retrieve live video through a web browser or recording software. 3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom controller. 4. Unscrew the focus controller to adjust the focus range. Upon completion, tighten the focus controller. -
Page 10: Fine-Tune The Camera Focus
Fine-tune the Camera Focus Please follow the steps below to fi ne-tune the camera focus: 1. Use the supplied L-type hex key wrench to loosen the ring screw; the adjustment ring will become rotatable. 2. Rotate the adjustment ring to fi ne-tune the distance between the sensor and the lens;... - Page 11 P/N:625008300G Ver.1.02 Copyright 2009 VIVOTEK INC. All rights reserved.
