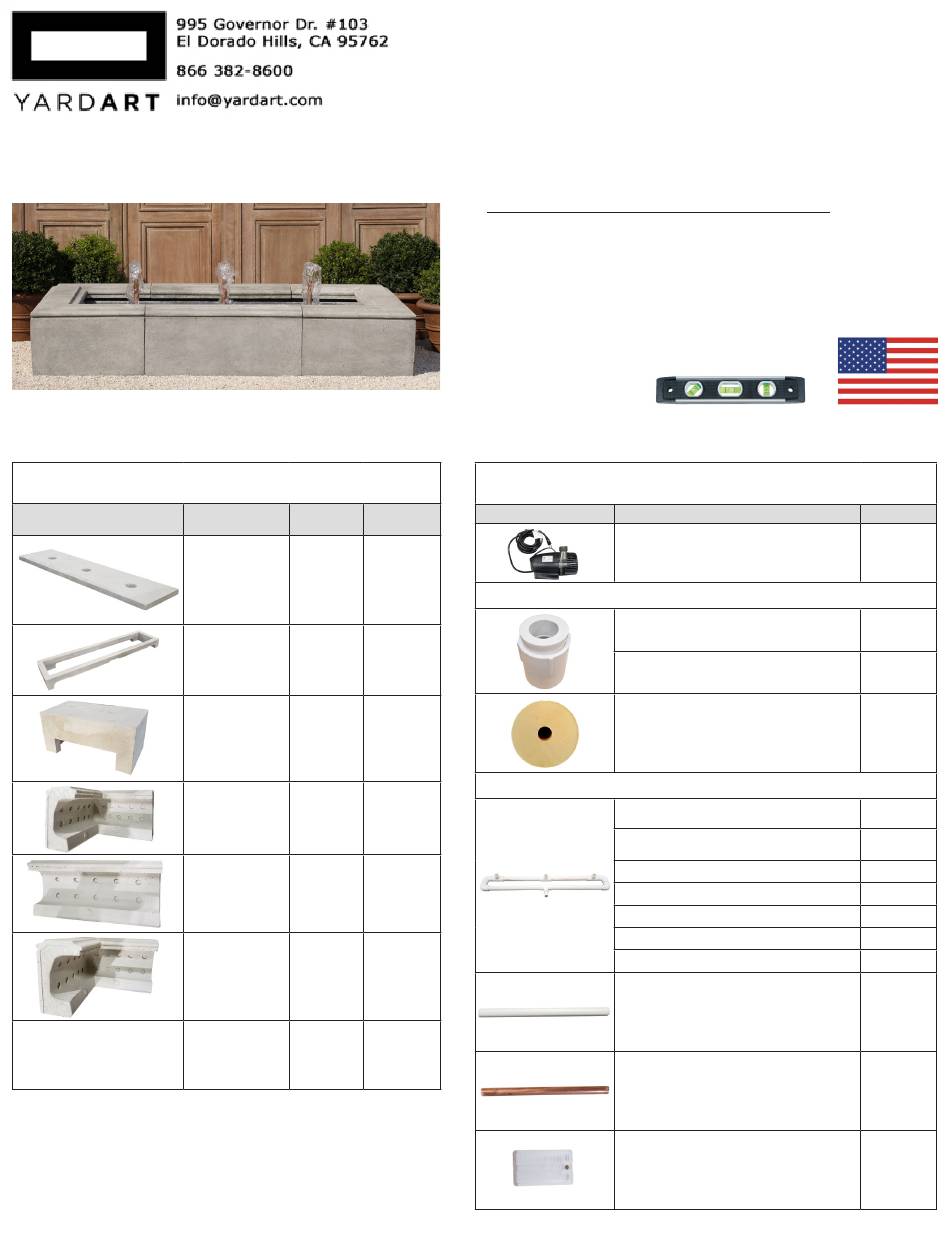

Fountain Components
Item Description
Embarcadero
Fountain - Plate
Embarcadero
Fountain - Plate
Base
Embarcadero
Fountain -
Pump Cover
La Riviere
Fountain -
Coping 1
La Riviere
Fountain -
Coping 2
La Riviere
Fountain -
Coping 3
Rectangular
Fiberglass Basin
- 6' x 3'
Fountain Information:
• Professional installation is recommended for this fountain!
• This fountain holds approximately 75 gallons of water.
• This fountain does not fit under a Campania fountain cover.
• Compatible with #7 Refill Device and LED kit
• A special stopper is required to use the refill kit for this fountain
Pump Information:
52352 - 2300GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Component
Quantity
Item #
FT-427A
1
FT-427B
1
FT-427C
1
FT-416F
2
FT-416G
2
FT-416H
2
FGB-2266
1
FT-427 Embarcadero Fountain
Assembly Instructions
Pump Kit Parts List
(remove any adapters already attached
Pump Adapter
1-1/4" x 3/4" PVC Reducer Bushing
1-1/4" PVC Female Adapter
Pipe Assembly
16-1/2" of 1" PVC pipe
13-1/2" of 1" PVC pipe
2-1/4" of 1" PVC pipe
1-1/2" of 1" PVC pipe
2-1/4" of 3/4" PVC pipe
1" x 3/4" x 1" PVC T connector
20" of 1" copper pipe
MADE IN USA
Component
PK2300
to the pump)
#7 Stopper
1" PVC elbow
20" of 3/4" PVC pipe
Wedges
Proudly
Quantity
1
1
1
1
2
2
2
2
1
4
4
3
3
22
rev 08/29/2023
Advertisement
Related Manuals for YARDART Embarcadero FT-427
Summary of Contents for YARDART Embarcadero FT-427
- Page 1 FT-427 Embarcadero Fountain Assembly Instructions Fountain Information: • Professional installation is recommended for this fountain! • This fountain holds approximately 75 gallons of water. • This fountain does not fit under a Campania fountain cover. • Compatible with #7 Refill Device and LED kit •...
- Page 2 FT-427 Embarcadero Fountain Assembly Instructions Professional installation is recommended for this fountain! Assemble your fountain on a level surface using crushed stone, gravel, or cement pad as the base. Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-427 Embarcadero Fountain Assembly Instructions Step 10 – Place the plate base (FT-427B) over the Pipe Assembly with the pump outside of the base. 10a – There is a shorter side of the base plate with an indent in the center. This area fits over where the pump and Pipe Assembly meet.
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
