Moisture meter
Operating Manual
PMSA

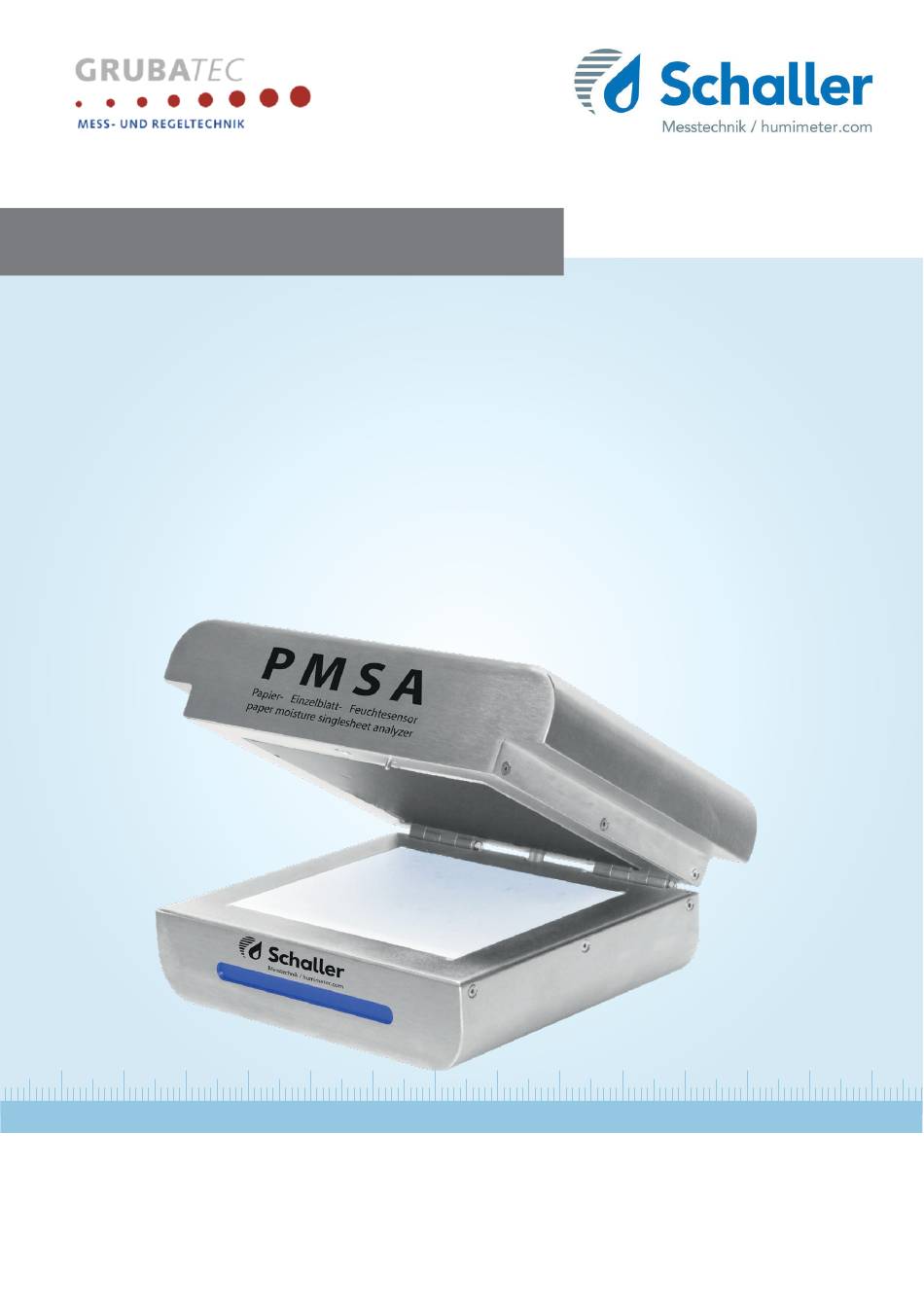

Single paper sheet moisture analyser
for measuring the moisture content of a single sheet
of paper
78,0°F | 6,16% | 456kg/m
| -27,3td | 0,64aw | 51,9%r.H. | 14,8%abs | 100,4g/m
| 09m/s | 4,90Ugl | 1
3
2
Always read this operating manual before using the PMSA!
Version 2.2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schaller PMSA
Summary of Contents for Schaller PMSA
- Page 1 78,0°F | 6,16% | 456kg/m | -27,3td | 0,64aw | 51,9%r.H. | 14,8%abs | 100,4g/m | 09m/s | 4,90Ugl | 1 Always read this operating manual before using the PMSA! Version 2.2...
-
Page 2: Your Psma At A Glance
PMSA Operating Manual Your PSMA at a glance The main unit Name Lid push button Sensor plate LED status bar IR temperature sensor Page 2... -
Page 3: The Rear Of The Main Unit
The rear of the main unit Name Identification plate Reset button USB port ATTENTION Sensitive sensor plate The white sensor surface consists of a thin ceramic plate. This plate may be destroyed by mechanical pressure! ► Take care of the sensitive sensor surface during cleaning! Page 3... -
Page 4: Table Of Contents
PMSA Operating Manual Table of contents Your PSMA at a glance ..............2 The main unit ................. 2 The rear of the main unit ..............3 Introduction ..............6 Information about this operating manual ........6 Limitation of liability ............. 6 Symbols used in this manual ........... - Page 5 7.1.1 Filter by date ..............16 7.1.2 Filter by keyword ..............17 Additional database functions ..........18 7.2.1 Deleting measurements ............18 7.2.2 Edit measurements ............18 7.2.3 Printing measurements ............18 7.2.4 Exporting measurements ............18 Configuring the device ............19 Sensor settings ..............
-
Page 6: Introduction
Introduction Information about this operating manual This operating manual is designed to enable you to use the PMSA safely and effec- tively. It is part of the device, has to be stored nearby and must be easily accessible to users at all times. -
Page 7: Symbols Used In This Manual
For technical advice, please contact our customer service department at: Schaller Messtechnik GmbH Max-Schaller-Straße 99 A - 8181 St.Ruprecht an der Raab Telephone: +43 (0)3178 28899 Fax: +43 (0)3178 28899 - 901 E-Mail: info@humimeter.com Internet: www.humimeter.com © Schaller Messtechnik GmbH 2024 Page... -
Page 8: For Your Safety
PMSA Operating Manual For your safety The device complies with the following European directives: • Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS) • Electromagnetic compatibility (EMC) The device corresponds to state-of-the-art technology. However, it is still associated with a number of residual hazards. -
Page 9: General Safety Information
General safety information Follow the safety instructions below to avoid personal injury and material damage: • If you notice loose parts or damage on the device contact your distributor. All of the device’s technical features have been inspected and tested before delivery. Every device has a serial number. -
Page 10: On Receipt Of Your Device
PMSA Operating Manual On receipt of your device Taking the device out of its packaging • Take the device out of its packaging. • Next, make sure that it is not damaged and that no parts are missing. ATTENTION Sensitive sensor plate The white sensor surface consists of a thin ceramic plate. -
Page 11: Setting Up
After successful installation exit the installation wizard with Finish (figure 2). Setting up the device • Insert the USB Mini B connector into the PMSA (figure 3). • Insert the USB connector into the computer. The required driver was installed with the evaluation »... -
Page 12: Setting The Com Port
4.3 Determining the COM port" from the drop-down menu. After selecting the COM interface, the con- nection to the PMSA can be tested via the "Test" button. After successful completion of the test, a » message appears and the LED bar of the device lights up blue. - Page 13 Now the device performs a blank measurement. During the blank measurement, the progress window closes. » After successful completion of the blank mea- surement, the progress window opens again (figure 10). Now place the paper to be measured in the device and close the lid (figure 11).
-
Page 14: Product Types
Selecting the product type Due to the wide range of different types of papers in use, there are no default product type categories. For the different product types of the PMSA, the grammage of the paper sheet and the paper type are decisive. -
Page 15: How Moisture Content Is Defined
How moisture content is defined The device measures and shows a material’s moisture content. The moisture content readings it displays are calculated in relation to the material’s overall mass: Mass of the sample with average moisture content Mass of the sample with zero moisture content %MC: Moisture content (in accordance with EN ISO 287) Page... -
Page 16: Database / Archive
PMSA Operating Manual Database / Archive In the database all stored measuring values can be displayed. Each stored measurement has its own identification number. Filter To facilitate the search, filters can be applied to the stored measurements in the data- base. -
Page 17: Filter By Keyword
In the second field enter the end date of the desired time period (figure 16). » By default, the current date is selected as the end date. » The end date can be chosen on the calendar or entered manually in the format (TT-MM-JJJJ). -
Page 18: Additional Database Functions
PMSA Operating Manual Additional database functions All data from the database can be deleted, further processed or exported. 7.2.1 Deleting measurements • Mark the desired measurement series by clicking on the empty field in front of the "ID" column. To select an entire area, keep the Shift key pressed. -
Page 19: Configuring The Device
Carry out adjustment If the error message "Calibration out of limits" appears frequently during a blank meas- urement (without paper), your PMSA can be adjusted. To do so: You are in the "Measurement" tab. In addition, there must be no paper or other material in the PMSA! •... -
Page 20: Paper Type Recording
» menu if necessary. • You can now enter the target value of the paper in the PMSA in the "Water con- tent" window. However, this can also be added directly in the table later. The recording of a new paper type can also be ordered from Schaller Messtech- nik GmbH. - Page 21 Reference water contents are the reference values on the basis of which the calibration curve is created in the PMSA. The PMSA compares internal frequencies with the manually entered water content and assigns the calibration curve.
- Page 22 PMSA Operating Manual » A batch number can be entered manually if required. • This measurement can now be saved using the "Save" button (figure 22). • Carry out at least seven measurements under different humidity conditions! » To do this, start again at the point: " Now click on the "Start"...
-
Page 23: Recording Of Paper With Different Grammages
8.3.2 Recording of paper with different grammages If you want to measure papers of the same type with different grammages, then » several papers of this type (with different grammages) must also be measured. • Now take at least two more recordings with other grammages of the same paper type. -
Page 24: Importing Characteristic Curves
PMSA Operating Manual • This means that the calibration curve/paper type recording was successful and can be selected for the measurement. The grammage can be changed again manually during the measuring process, » but must not be below the lowest and not above the highest specified value (see "5. -
Page 25: Create/Change Paper Types Manually
Create/change paper types manually To do so: The following display is shown (figure 27). • To manually create a new paper type, the name and grammage must first be entered manually in the left-hand block. • This new paper type is now created by pressing the "New"... -
Page 26: Cleaning And Maintenance
PMSA Operating Manual Cleaning and maintenance Regularly cleaning and maintaining the device will ensure that it will have a long service life and stay in good condition. Resetting the hardware/device If the device has stopped operating for some reason, the hardware/device can be reset. -
Page 27: Care Instructions
Care instructions • Do not leave the device out in the rain. The device is not waterproof. • Do not expose the device to extreme temperatures. • Protect the device from strong mechanical shocks and loads. • During transport, secure the lid of the device against unintentional opening. •... -
Page 28: Faults
PMSA Operating Manual Faults If the measures listed below fail to remedy any faults or if the device has faults not listed here, please contact Schaller Messtechnik GmbH. Fault Cause Remedy Measuring error The temperature of the ma- The temperature of the... -
Page 29: Storage And Disposal
Storage and disposal 11.1 Storing the device The device must be stored as follows: • Do not store outdoors • Store in a dry and dust-free place • Protect the device from sunlight • Avoid mechanical shocks/loads • Storage temperature: -20 °C to +60 °C 11.2 Disposing of the device Devices marked with this symbol are subject to Directive 2012/19/ EU of the European Parliament and of the Council of 4 July 2012 on... -
Page 30: Device Information
PMSA Operating Manual Device information 12.1 EC declaration of conformity KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY Name/ Adresse des Herstellers: Schaller Messtechnik GmbH Name/ address of manufacturer: Max-Schaller-Straße 99 A – 8181 St. Ruprecht Produktbezeichnung: Schaller Product designation: Typenbezeichnung: PMSA Type designation: Produktbeschreibung: Messgerät zur Bestimmung des Wassergehalts in Papier... - Page 31 Für das angeführte Produkt ist eine vollständige Dokumentation mit Betriebsanleitung in Originalfassung vorhanden. For the mentioned product a complete documentation with manual of instruction in original version is available. Bei Änderungen, die nicht vom Hersteller spezifiziert sind, verliert diese Konformitätserklärung die Gültigkeit.
- Page 32 PMSA Operating Manual DECLARATION OF CONFORMITY Name/ address of manufacturer: Schaller Messtechnik GmbH Max-Schaller-Straße 99 A – 8181 St. Ruprecht Product designation: Schaller Type designation: PMSA Product description: Measuring instrument for determining the water content in paper The designated product is in conformity with the following directives: •...
- Page 33 For the mentioned product, a complete documentation with manual of instruction in original version is available. In case of any changes not agreed upon with the manufacturer, this declaration of conformity loses its validity. St. Ruprecht a.d. Raab, 31.07.2022 …............Bernhard Maunz Legal binding signature of the issuer Page...
-
Page 34: 12.2 Technical Data
PMSA Operating Manual 12.2 Technical data Measuring range 1 % to 20 % moisture content (product type dependant) 0.01 % moisture content Resolution of the measure- ment 0.1 °C / 0.3 °F temperature Operating temperature +10 °C to +40 °C Storage temperature -20 °C to +60 °C... -
Page 35: Notes
