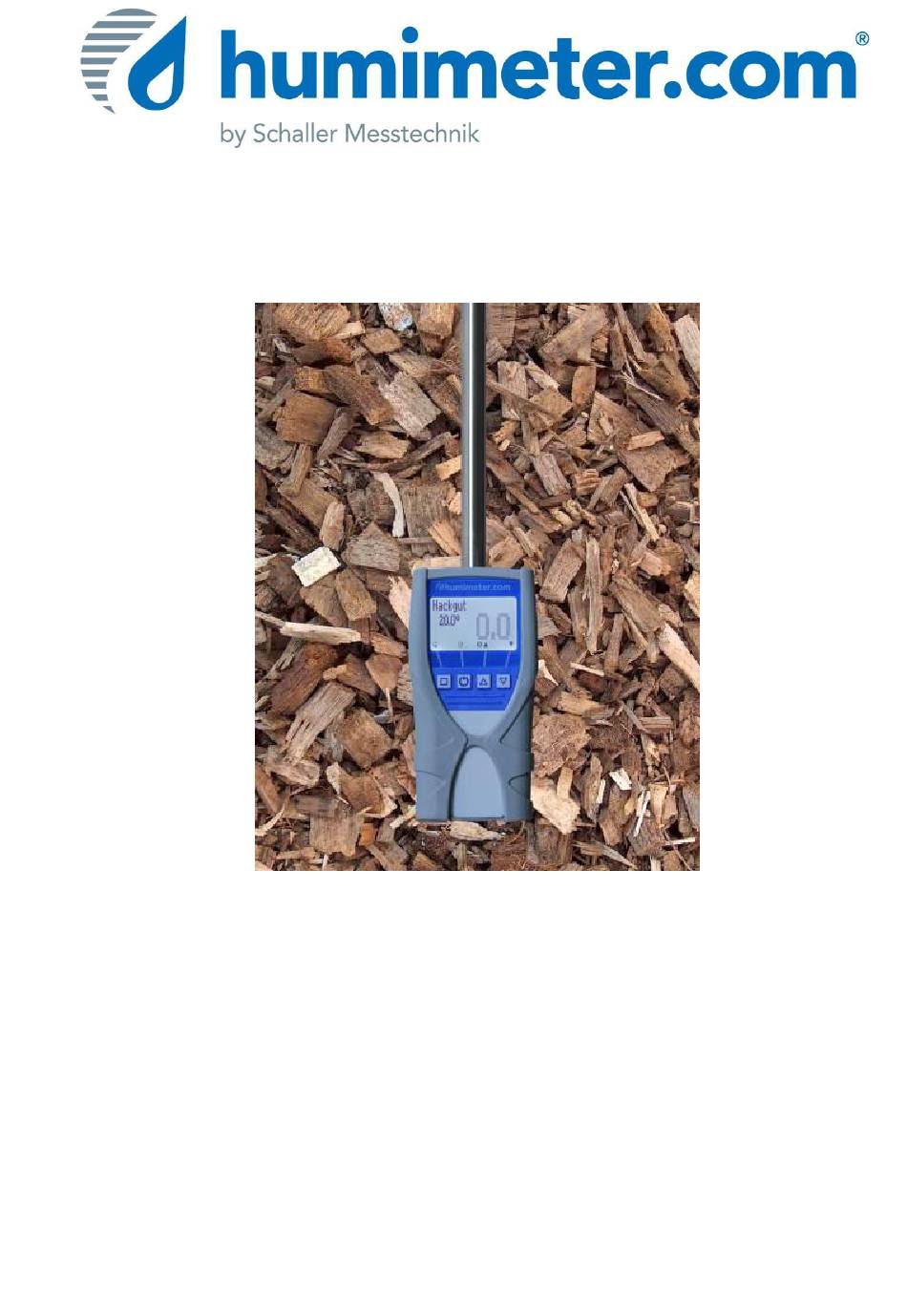

- Page 1 User manual Moisture meter with insertion probe for determination of water content of wood chips humimeter BLL Version 2.4_en © Schaller GmbH 2015...

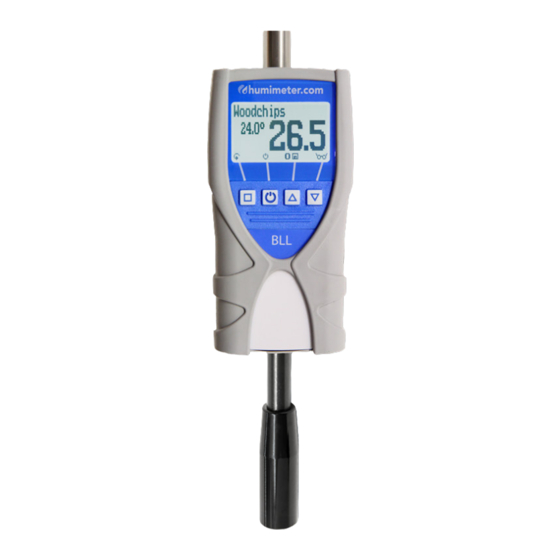

- Page 2 Design of the device Measuring head Insertion probe Temperature Water content Batteries slot Grap bar (flipside) page 2 Version 2.4_en...
- Page 3 1. For a correct measurement please ensure that the device has the same temperature than the wood chips (+/-3°C). For that reason, let your humimeter BLL adjust to the surrounding temperature of the material for at least half an hour before measuring.
- Page 4 75% of the bulk is between 8 and 63 mm Compression of wood chips The humimeter BLL is calibrated for normally compressed wood chips. If the measured wood chips are compressed to a much lesser or greater extent, this will cause measuring imprecisions. Normally compressed wood chips are defined in norm EN 15103 (determination of the bulk density).
- Page 5 Menu level overview Keypad symbols Measuring window: Rolling Menu Store menu Power ON / OFF Watch the saved data (logs) Switch upper Save new value Power off (3 sec.) Switch lower Save Type selection menu Hold Next calibration curve Watch the Previouse calibration curve Power off (3 sec.) saved data...
-
Page 6: Changing Batteries
Changing batteries Your new device is provided with batteries. Please find enclosed the manual for changing of batteries: 1.) At first remove the rubber protective housing. For that, hold the rubber housing at the upper side and pull it over. If your BLL is provided with an optional USB port, you have to remove the protection cap before. -
Page 7: Running The Instrument
Running the instrument Switch on: Press the key for 3 seconds Set the clock: Press 3 times the key -> Options -> Date/Time Save measuring value: Save the measuring value by pressing the button below the symbol. The storage was successful when the number in front of the symbol increased. - Page 8 Activation of the “super user” function - Options – Unlock 2 times Enter the 4-digit password by using the button (standard is the 4-digit serial number) and confirm by pressing the button. Changing the Userlevel Changing from advanced user to single user: Make sure that you have activated the “super user”...
- Page 9 The bigger connector has to be connected to a USB slot on your PC. Start the LogMemorizer software on your PC and switch on your humimeter BLL. The data transfer can be started on your humimeter or on the software.
- Page 10 BLL. At first plug in the side of the connector with the close plastic casing at the humimeter BLL. Then switch on the device. Not till then the other side of the cable has to be plugged in at the printer. Switch on the printer by pressing .
-
Page 11: Exemption From Liability
Each device includes a serial number and the guarantee stamp. If those are broken, no claims for guarantee can be made. In case of a faulty device, please contact Schaller GmbH (www.humimeter.com) or our dealer. Version 2.4_en... - Page 12 Most common reasons for miss readings Product temperature out of application range Material below 0°C resp. above +40°C (32 to 104 °F) may cause faulty measurements. The storage of cold material in a warm storage area usually creates condensed water which may lead to major measuring errors.
