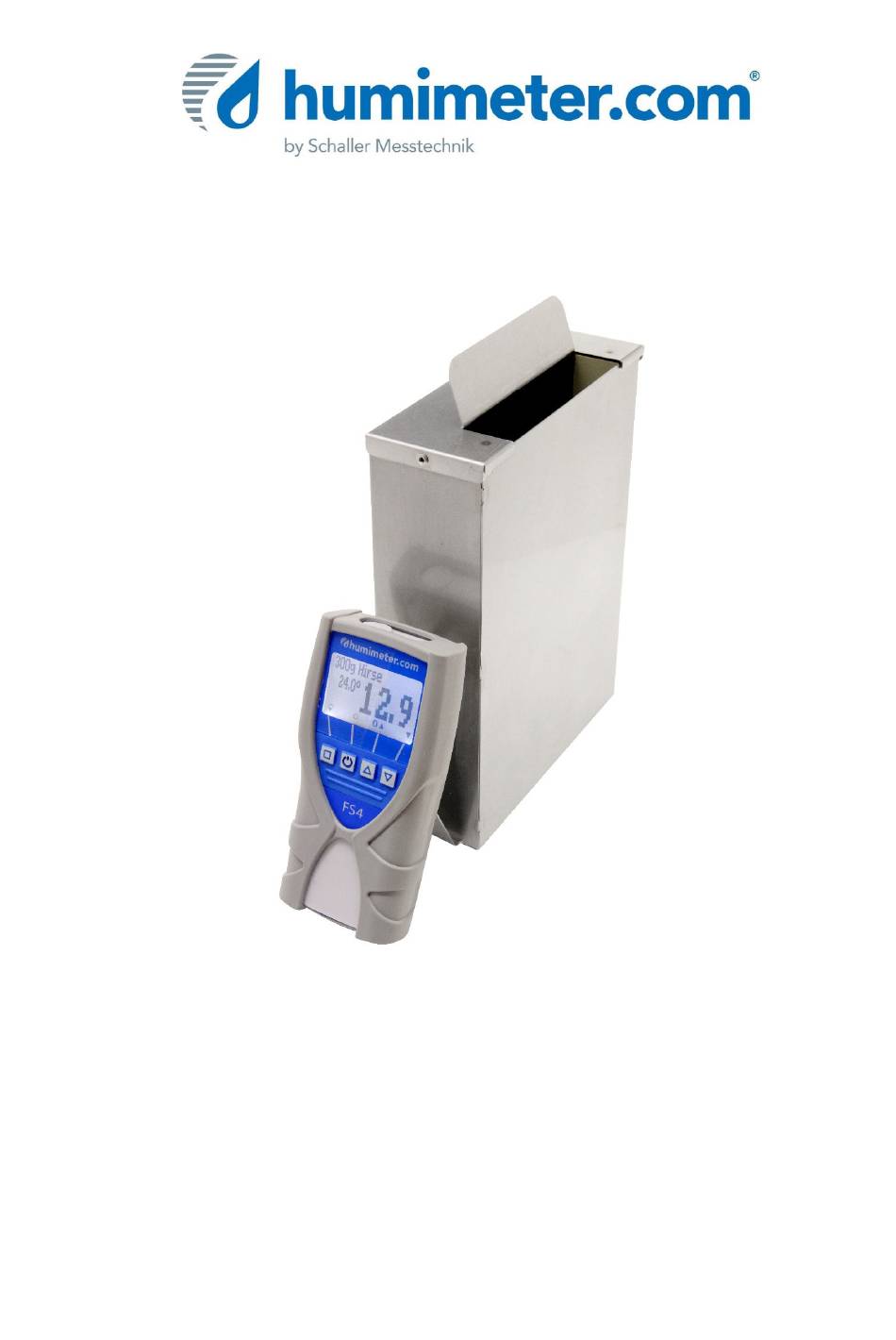

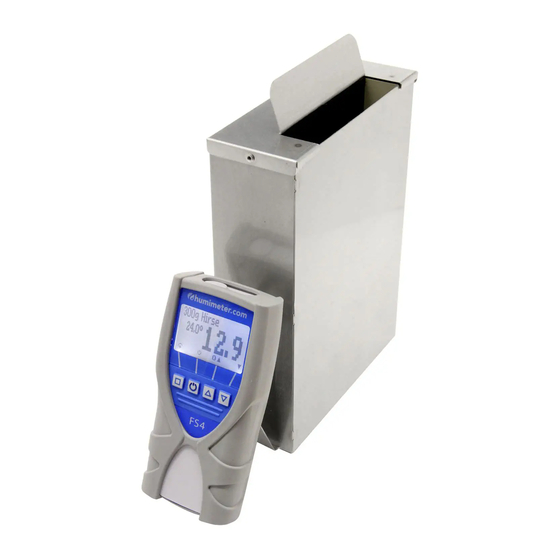

- Page 1 User manual grain special fruit moisture meter humimeter FS4 Version 2.7_en © Schaller GmbH 2014...
- Page 2 It is important that no material is left in the measuring chamber when you turn on the device. 3. Switch on the humimeter FS4 by pressing the power button ( ) for 3 sec. 4. The next step is a self calibration. The word “reinitialize”...
- Page 3 7. Fill up the measuring device with the sample material. The filling needs to be done slowly and constantly to ensure reproducible results. 8. The display shows the measuring result. 9. If the measuring value is blinking, the valid measuring range has been exceeded (limits see list on page 5).
-
Page 4: Changing The Batteries
Changing the batteries Your new device is provided with batteries. Please find enclosed the manual for changing of batteries: At first remove the rubber protective housing. For that, hold the rubber housing at the upper side and pull it over. If your humimeter is provided with an optional USB port, you have to remove the protection cap before. -
Page 5: Calibration Curves
Calibration curves name of calibration material under test filling measuring curve quantity range 300g corn stand. corn standard 300g 5 up to 40% 300g hand corn corn hand reaped 300g 5 up to 40% 300g rye 300g 5 up to 28% 300g triticale triticale 300g... -
Page 6: Design Of The Device
Empty calibration curves: The measuring device offers 10 empty calibration curves. They can be used for special fruits or variety calibration. On request Schaller GmbH can develop customized calibration curves for your product. Design of the device filler assistance measuring... -
Page 7: Menu Level Overview
Keypad symbols Menu level overview Measuring window: Rolling Menu Type selection Power ON / OFF menu Switch upper Switch lower Next calibration curve Save Previous calibration curve Hold Power off (3 sec.) Watch saved data Add suppliers data Store menu Menu: Watch saved data (logs) Save new value (log) - Page 8 Transfer saved data to the PC To send your saved logs to the PC, connect the humimeter device to your PC using the USB cable that was delivered with your device. Carefully loose the protection cap on your humimeter and plug in the USB mini B connector.
- Page 9 Print saved data To print your saved data, connect the device to the printer using the printer cable that was delivered with your device. Carefully loose the protection cap on the humimeter. At first plug in this side of the connector having the plastic casing closer to the end at the humimeter.
- Page 10 Each device includes a serial number and the guarantee stamp. If those are broken, no claims for guarantee can be made. In case of a faulty device, please contact Schaller GmbH (www.humimeter.com) or our dealer. Activation of the “super user” function 2 times - Options –...
-
Page 11: Technical Data
Technical data Resolution of the display 0.1% water content 0.5°C temperature Measuring range 0 up to 50% depending on the material Operation temperature 0 up to +40°C (32 up to 104°F) Storage temperature -20°C to +60°C Temperature compensation automatically Power supply 4 pcs. -
Page 12: Important ! Please Read
! IMPORTANT ! please read Most common reasons for miss readings • Product temperature out of application range Material of a temperature below 0°C resp. above +40°C (32 to 104 °F) may cause faulty measurements. The storage of cold material in a warm storage area usually creates condensed water which may lead to major measuring errors.
