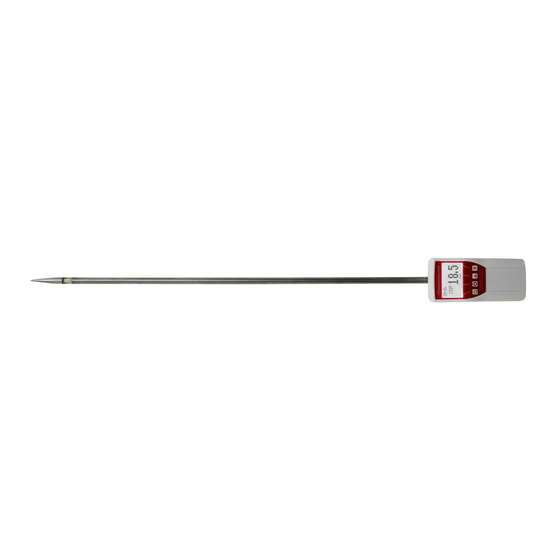

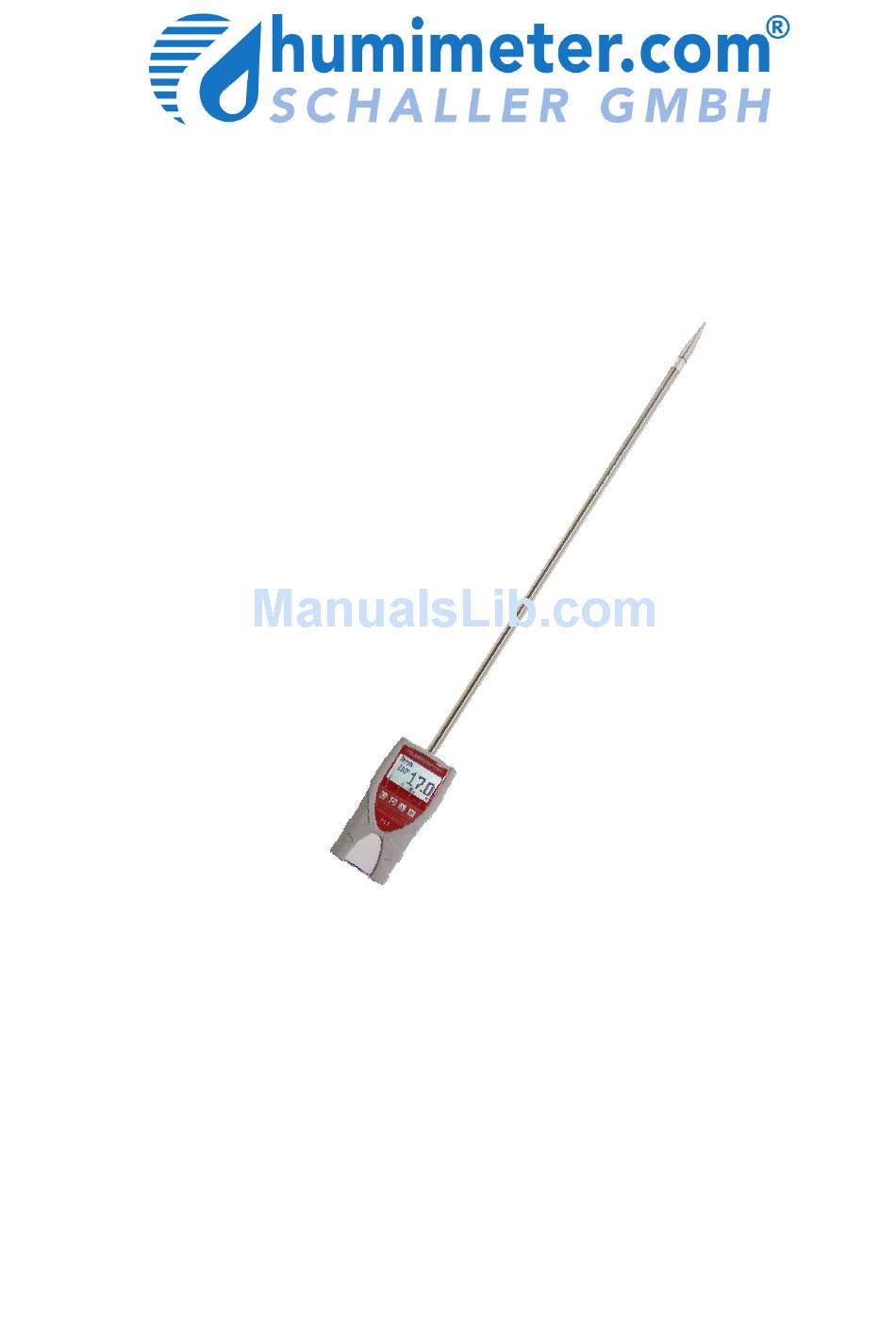

- Page 1 User manual humimeter FL1 Moisture meter for straw and hay Version 1.7_en © Schaller GmbH 2014...
-
Page 2: Calibration Curves
Calibration curves Compressed Measuring Calibration curves Declaration range limit density straw bale of straw 100 up to 130kg/m³ hay bale 100 up to 120kg/m³ Test block !Only for testing the device with the test block! Packaging The paperboard cylinder (or optional the wooden case), where your device has been delivered, should be used to store your device when it is not in use. - Page 3 1. For a correct measurement please ensure that the device has the same temperature than the material you want to measure (+/-3°C). For that reason, let your humimeter FL1 adjust to the surrounding temperature of the material for at least half an hour...
- Page 4 Direction of plug in Insert the device into the bale like shown in the picture below. Any other direction of plugging lead to a significant deviation of the measuring results. Pull the unit straight out again. Any mechanical damage due to mishandling is no case of guarantee. Round bales have to be measured on the face side.
-
Page 5: Menu Level Overview
Keypad symbols Menu level overview Measuring window: Power ON / OFF Type selection Switch upper menu Switch lower Hold Next calibration curve Previous calibration curve Power off (3 sec.) Menu: Hold function Enter Switch upper Switch lower To reach the main menu, keep both arrow buttons Exit pressed while the device... -
Page 6: Changing Batteries
For eventual resulting damages we cannot provide any warranty. Determination of the material reference moisture The humimeter FL1 determines the water content, that means that it calculates the moisture referred to the total mass: : Mass with average moisture content −... -
Page 7: Technical Data
Display 128 x 64 matrix display, lighted Dimensions 740 x 65 x 40 mm Weight approx. 450g (incl. batteries) Degree of protection IP 40 Scope of supply humimeter FL1 incl. rubber protection 4x1,5Volt AA Alkaline batteries page 7 Version 1.6_en... -
Page 8: Important! Please Read
!IMPORTANT! Please read! Most common reasons for miss readings • Product temperature out of application range Material below 0° C resp. above +40° C may cause faulty measurements. The storage of cold material in a warm storage area usually creates condensed water which may lead to major measuring errors.
