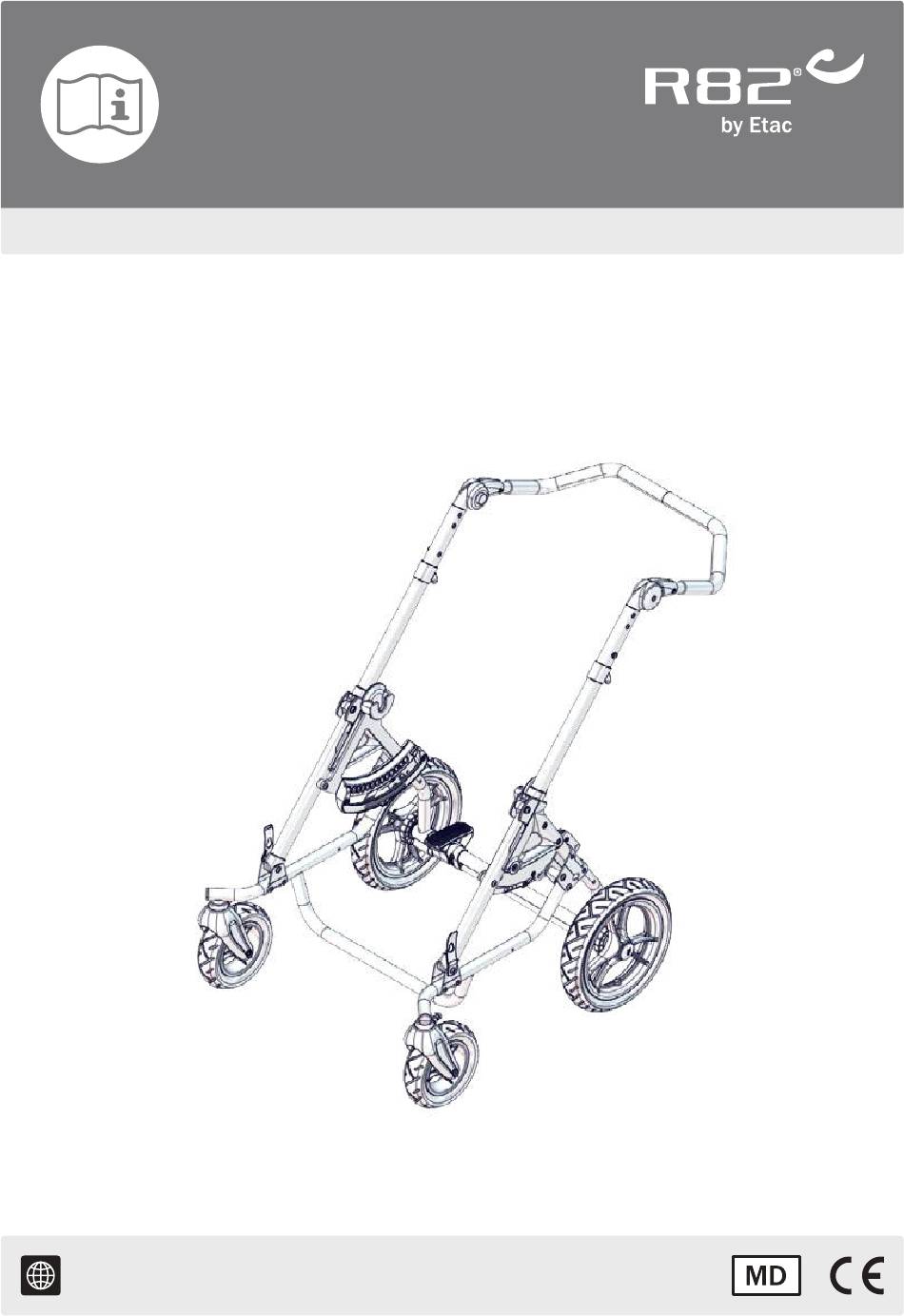

  • Page 1 User manual Chilla M1615 - 2024-04-23- Rev. 1.0...
  • Page 2 Content 7-12 Frame size 1 & 2 14-16 (inch) (lb) Seat size 1 & 2 17-18...
  • Page 3 Content 25-26 29-30...
  • Page 4 Content 33-34 PSI/ 37-38 39-40...
  • Page 5 Content 41-44 999609xxxx 47-48 2022-0x- Rev. 0.x R82 A/S Parallelvej 3 DK - 8751 Gedved etac.com...
  • Page 6 EN: Warning: This symbol appears in the User Guide along with a number referring to the instructions below. It draws attention to situations where the product or the user or carer’s safety may be in danger 01 = Entrapment Hazards 02 = Tilting Hazards 03 = Transportation in motor vehicles...
  • Page 7 EN: Consult instructions. The latest version of all product User Manuals can be down- loaded as a “pdf-fi le” from the web page. The manuals can be read with a “Read Out Loud” functionality in e.g Adobe Acro- bat and /or printed in a larger size to accommodate persons with visual impairments.
  • Page 8 EN: Refer to the instruction manual EN: Incorrect use EN: Ready for use EN: Correct lifting point...
  • Page 9 EN: Inspection EN: Press the button/spring EN: Listen to click sound EN: Unpack parts/product...
  • Page 10 EN: Warewashing machine EN: Foot-operated EN: Prohibition: Incorrect lifting points, especially on stairs...
  • Page 11 EN: Prohibition: Do not stand on the foot support or surface 7176-19 EN: Conforms to ISO 7176-19, intended to be used as a seat in a motor vehicle EN: Securement point...

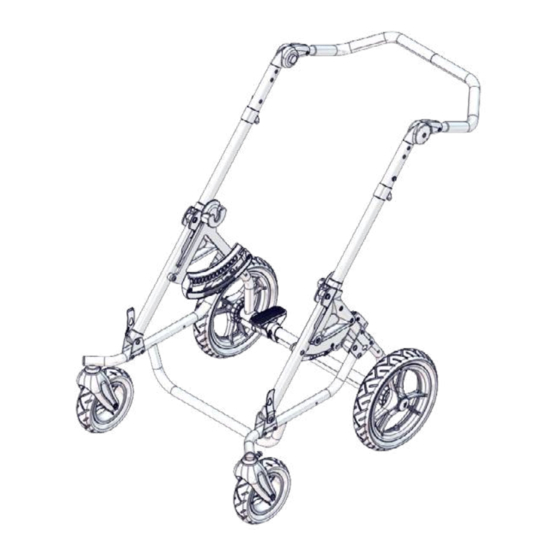

  • Page 12 Size 1 & 2 - basic Size 1 & 2 - Adjustable suspension Size 1 & 2 - Driving brakes & adjustable suspension...
  • Page 13 (inch) (lb) Frame size 1 & 2 mm (inch), kg (lb) Size 1 Size 2 Normal Suspension Normal Suspension Overall height, to 1200 mm 1200 mm 1200 mm 1200 mm pushbrace (47¼ inch) (47¼ inch) (47¼ inch) (47¼ inch) Seat surface height at 450 mm 450 mm 450 mm...
  • Page 14 (inch) (lb) Frame size 1 & 2 mm (inch), kg (lb) Size 1 Size 2 Normal Suspension Normal Suspension Rear wheel h×w 290x60 mm 290x60 mm 290x60 mm 290x60 mm (11½x2¼ (11½x2¼ (11½x2¼ (11½x2¼ inch) inch) inch) inch) Folded height* 380 mm 380 mm 380 mm...
  • Page 15 (inch) (lb) Frame size 1 & 2 mm (inch), kg (lb) Size 1 Size 2 Normal Suspension Normal Suspension Mass of the heaviest 7.2 kg 8.2 kg 7.4 kg 8.8 kg part*** (15.9 lb) (18.1 lb) (16.3 lb) (19.4 lb) Pivot width 1160 mm 1160 mm...
  • Page 16 (inch) (lb) Seat size 1 & 2 mm (inch), kg (lb) Size 1 Size 2 Backrest recline angle 80-160° 80-160° 180° 0° Backrest height with head 505-665 mm 620-810 mm support plate (20-26¼ inch) (24½-32 inch) Backrest height without 365-525 mm 420-610 mm head support plate (14½-20¾...
  • Page 17 (inch) (lb) Seat size 1 & 2 mm (inch), kg (lb) Size 1 Size 2 Folded height 275 mm 295 mm (10¾ inch) (11½ inch) Folded length 535 mm 635 mm (21 inch) (25 inch) Folded width 380 mm 430 mm (15 inch) (17 inch) Mass device*...
  • Page 18 Size 2 Size 1 <43 kg <60 kg <94 lb <132 lb...
  • Page 20 4 mm 90° 90°...
  • Page 32 1/2/3...
  • Page 33 1/2/3...
  • Page 35 PSI/ MAX. 36 PSI/ 2.5 BAR PSI/BAR MAX. 36 PSI/ 2.5 BAR...
  • Page 36 90° 0° 90° Chilla M1470...
  • Page 37 Chilla seat...
  • Page 39 Optional...
  • Page 40 Optional...
  • Page 44 Chilla seat...
  • Page 46 999609xxxx 2022-0x- Rev. 0.x R82 A/S Parallelvej 3 DK - 8751 Gedved etac.com fghhgf 9996098191 9996098170 9996098171 9996098173 9996098174 9996098175 9996098169 9996098193 9996098203...
  • Page 47 999609xxxx 2022-0x- Rev. 0.x R82 A/S Parallelvej 3 DK - 8751 Gedved etac.com fghhgf 9996098207...

  • Page 48: Application Areas

    Presales information and instructions are • ability to maintain the position of their head: available at etac, under your product, in Consider using accessories that provide the documents section. support to the positioning of the head.
  • Page 49 • Information regarding frame and seat combinations including max. load in • Inspect the product and all of its accessories combination can be found at: etac.com. and replace any worn out parts before use. • This product contains small parts which could •...
  • Page 50 point belt restraint. The product receives a score of “excellent”. Rating for: the degree to which proper three point belt restraint positioning can be achieved. The product receives a score of “Good”. • The device conforms to ISO 7176-8, covering requirements and test methods for static, impact and fatigue strengths.

  • Page 51: Service & Maintenance Information

    Service & maintenance information Service and maintenance of a medical device is wholly the responsibility of the owner of that device. Failure to service and maintain a device in accordance with the instructions may invalidate the device’s warranty. Furthermore, failure to service and maintain a device may compromise the clinical condition or safety of users and/or their caregivers.
