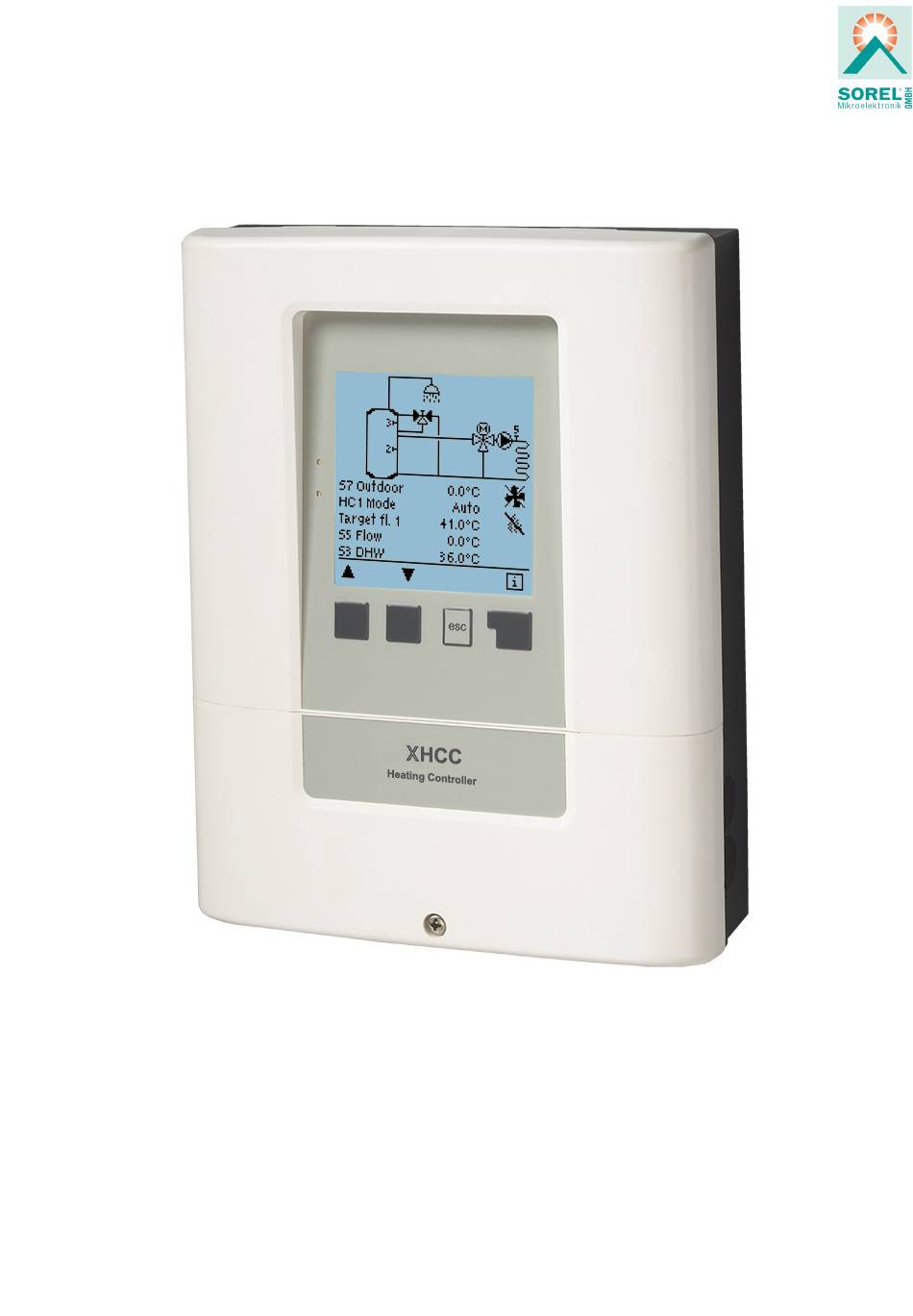

Heating Controller XHCC
Weather-compensated heating circuit controller
Installation and operating instructions
Read carefully before installation, commissioning and operation

Advertisement

loading
Need help?

Need help?

Do you have a question about the XHCC and is the answer not in the manual?

Questions and answers

Related Manuals for Sorel XHCC

Summary of Contents for Sorel XHCC

  • Page 1 Heating Controller XHCC Weather-compensated heating circuit controller Installation and operating instructions Read carefully before installation, commissioning and operation...

  • Page 2: Table Of Contents

    PV contact Explanation of Symbols Changes to the Unit 6. Protective Functions Warranty and Liability Seizing Protection Disposal and Pollutants Frost Protection Description XHCC Discharge Protection Pressure Monitoring About the Controller Specifications 7. Special Functions Scope of supply Program selection...
  • Page 3 Room hysteresis Dehumidifier Buffer sensor Operating mode Mixer Reference humidity Heating Circuit 2 Hysteresis Difference Dehumidifier periods Δ T Difference Solar DF-Source Tmin St. Diff. Tmin Δ T Solar DF-Drain Tmax Diff. Tmax Starting aid Heat transfer Purging time Δ T Heat transfer Increase HT Tmax Protective functions for Solar...

  • Page 4: Safety Instructions

    Safety Instructions EG-Conformity By affixing the CE mark to the unit the manufacturer declares that the XHCC conforms to the following relevant safety regulations: EG low voltage directive 2006/95/EG EG electromagnetic compatibility directive 2004/108/EG conforms. Conformity has been verified and the corresponding documentation and the EG declaration of conformity are kept on file by the manufacturer.

  • Page 5: Changes To The Unit

    In the menu 'measurement values and settings' are help text and graphics in addition to key words. The XHCC can be used with different variants of installations, see " Hydraulic Variants " on page 8. Important characteristics of the XHCC are: Depiction of graphics and texts using a lit display.

  • Page 6: Specifications

    Specifications Model XHCC Weather-compensated heating circuit controller Temperature controller class Energy efficiency Standby loss 0,5 W Request type heater Switching contact or modulating Electrical specifications: Power supply 100 - 240VAC, 50 ... 60 Hz Power consumption / standby 0,5 W - 3 W/ 0,5 W...

  • Page 7: Scope Of Supply

    Weather-compensated heating circuit controllerXHCC 3 screws 3,5 x 35 mm and 3 plugs 6 mm for wall installation. Micro SD card XHCC Installation and operating instructions Optionally contained depending on design/order: Outdoor sensor: 1x outdoor sensor e.g. TA52 (Pt1000) - article number 87000 Ethernet connection: optionally possible via datalogger (77701) Pipe-mounted sensor: 1x pipe-mounted sensor e.g.

  • Page 8: Hydraulic Variants

    Hydraulic Variants The following illustrations should be regarded only as schematic representations of the respective hydraulic systems and do not claim to be complete. Under no circumstances should the controller replace any safety devices. Depend- ing on the specific application, additional system and safety components such as check valves, non-return valves, safety temperature limiters, scalding protectors, etc., may be required.

  • Page 9: Installation

    Installation Electrical Terminals Low voltages Mains voltages max. 12 VAC / DC 230 VAC 50 - 60 Hz Terminal: Connection for: SD card slot Potential free Terminal: Connection for: relay R7 Sensor 1 for data storage NO Normally Network outer conductor L open (closer) Sensor 2 and updates...

  • Page 10: Wall Installation

    Wall Installation 1. Select necessary program/hydraulics 2. Open clamp room cover ( see " Ter- minal connection " on page 11 ). 3. Strip lines a max. of 55 mm, assemble the strain reliefs, strip wire ends 8- 9mm (figure 1) 4.

  • Page 11: Installing The Temperature Sensors

    Installing the Temperature Sensors The controller operates with Pt1000 temperature sensors which are accurate to 1 °C, ensuring optimal control of system func- tions. If desired, the sensor cables can be extended to a maximum of 30 m using a cable with a cross-section of at least 0.75 mm².

  • Page 12: Operation

    Operation Display and Input The display‘s (1), extensive text and graphical mode, enables simple, almost self-explanatory, operation of the controller. The LED (2) lights up green when a relay is switched on. The LED (2) lights up red when operating mode ‚Off‘ is set. The LED (2) flashes quickly red when an error is present.

  • Page 13: Commissioning Help

    Commissioning help 1. Set language and time 2. Commissioning help / setup wizard a) select or b) skip. The setup wizard guides through the necessary basic settings in the cor- rect order. Each parameter is explained in the control display. Pressing the „esc“ key takes you back to the previous setting. b) With free commissioning the settings should be made in the following order: menu 10.

  • Page 14: Statistics

    2. Statistics Serve for function control and long-term monitoring of the system. For system data statistics it is essential for the time to be set accurately on the controller. Please note that the clock con- tinues to run for about 24 hours if the mains voltage is inter- rupted, and afterward must be reset.

  • Page 15: Periods

    3. Periods Settings for time, date and operating times for the heating circuit. The associated temperature reference values are specified in Menu 5, ‚Settings‘. Time & Date Serve to set the current time and date. For system data statistics it is essential for the time to be set accurately on the controller. Please note that the clock continues to run for about 24 hours if the mains voltage is interrupted, and afterward must be reset.

  • Page 16: Dhw Comfort

    DHW comfort This menu can be used to select three time ranges for each day of the week in which the DHW is supplied with an increased com- fort temperature. Daylight saving time If this function is activated, the controller automatically changes to winter time or summer time (DST, Daylight Savings Time). 4.

  • Page 17: Operating Mode

    Operating mode Auto = Automatic/Normal mode using the set times. Reference Value = Fixed flow temperature regardless of the outdoor temperature. The desired flow temperature must be set in Menu 4.3 . Reference value = Menu 4.4 can be used to set specific flow temperatures for the next 14 days. After 14 days, the reference tem- perature of the 14th day is used continuously until the operating mode is changed.

  • Page 18: Comfort Temperature Boost

    Comfort Temperature Boost Parallel characteristic translation The comfort temperature boost is added to the set day correction. In this manner it is possible to carry out quick heating and/or raise the temperature of living spaces at a certain time each day. Min.

  • Page 19: Mixer

    troller: 10 %= 4 °C 5 X 4 °C= 20 °C. Accordingly, 20 °C are added to the reference flow temperature, giving 60 °C. If the value is higher than the one set in max. flow temp, the resulting temperature is the one set in max. flow temp. Room Reference (Day) The desired room temperature for day mode.

  • Page 20: Dhw Comfort

    If the set temperature at the DHW sensor is undershot and the BW charge is approved for the time, the DHW charge and the heat request will be turned on. The request only works if an energy source (burner, compressor, solid boiler) is activated as an additioanl function and if this source is set for the DHW request (see also Burner: Request BW on page 38, Compressor: request BW on page 40).

  • Page 21: Protective Functions

    6. Protective Functions The 'Protective functions‘ can be used by specialists to activate and set vari- ous protective functions. By no means does the controller replace the safety appliances on site! Seizing Protection If the anti-seizing protection is activated, the controller switches the heat pump and the mixer on/off at 12:00 noon for 5 seconds to prevent seizing of the pump/valve after long periods of inactivity.

  • Page 22: Special Functions

    7. Special Functions Used to set basic items and expanded functions. The settings in this menu should only be changed by a specialist. Program selection Here the hydraulic variation fitting to the respective use case is selected and set. The program selection normally occurs only once during the first entry into service by a specialist. An incorrect pro- gram selection may lead to unpredictable errors.

  • Page 23: Variant

    This function should only be activated by a technician. Depending on the pump being used and the pump level, the minimum speed may not be set too small, because the pump or the system may be damaged. The specifications from the affected manufacturer must be observed for this! When in doubt, the min.

  • Page 24: Extension Box

    Extension Box An optional extension box can be activated. Heat quantity Constant flow If “Constant flow” is activated as the type of heat quantity metering, the approximate heat from the manually entered values for antifreeze, its concentration and the flow from the system and the measured sensor values from the collector and storage are cal- culated.

  • Page 25: Factory Settings

    You can find the address of the connector or respectively the data logger on the address sticker on the outside of the casing. Pointers and help on how to establish a connection you can find in the enclosed SOREL connect instructions or the instructions of the data logger.

  • Page 26: Menu Lock

    8. Menu Lock Secure the controller against unintentional changing and compromise of basic functions. The menus listed below remain completely accessible despite the menu lock being activated, and can be used to make adjustments if necessary: 1. Measurement values 2. Statistics 3.

  • Page 27: Function Overview

    Function overview Heating Circuit (X) S/W Day Summer / Winter changeover in daytime mode If this value is exceeded at the outdoor sensor the controller automatically switches the heating circuit off = Summer mode. If the outdoor temperature drops below this value, the heating circuit is switched on again = Winter mode. In addition to the operating times in normal daytime operation, this setting is also valid for times with activated comfort.

  • Page 28: Comfort Temperature Boost

    saving energy. Example: A day correction of +5 °C and a night correction of -2 °C produces a reference flow temperature in night- time operation that is 7 °C lower. Comfort Temperature Boost Parallel characteristic translation The comfort temperature boost is added to the set day correction. In this manner it is possible to carry out quick heating and/or raise the temperature of living spaces at a certain time each day.

  • Page 29: Mixer

    (see also Thermostat: see " Thermostat " on page 30, Burner: see " HC request " on page 32, Compressor: see " HC request " on page 33, Heater: see " HC request " on page 31). Mixer This menu contains all the settings concerning the mixer of heating circuit 1 Direction Direction of the mixing valve can be set here.

  • Page 30: Δ T Heat Transfer

    Δ T Heat transfer Temperature difference for the transfer. If the temperature difference between the sensors ∆T transfer On is reached, the relay is switched on. As soon as the difference on ∆T Transfer off falls, the relay is turned off again. HT Tmax Target temperature of the target storage If this temperature is measured on the sensor in the target storage, the HT will be shut down.

  • Page 31: Dhw Request

    An electric heating element that heats up the storage water heater if needed. Temperature values which are set too high can lead to scalding or damage to the system. Scalding protection must be provided by the customer! DHW request Electric heating element is started for a DHW - heat request. HC request Electric heating element is started with a heating circuit - heat request.

  • Page 32: Solid Fuel Boiler

    Last AL heat This displays when the last successful heating has occurred. AL sensor 1 On this sensor, the temperature of the AL function is measured. AL Sensor 2 Optional AL sensor If this sensor is set for a successful heating Tset AL have to be achieved at this sensor too for the action time. Solid fuel boiler This function is used to try to cool down storage to an adjustable reference temperature by transporting heat or by using a tem- perature and time controlled air conditioning installation.

  • Page 33: Enable Times

    Enable times Funktion activity times Here the desired periods are set in which the function is approved. For each weekday, three times can be specified, furthermore, you can copy individual day to other days. Outside the set times the function is disabled. Anti Legionella see "...

  • Page 34: Gylcol Pump Lag

    Gylcol pump lag After shutting down the compressor, the pump remains on for the time set here. Cooling In this menu, the cooling function is activated, and the mode of cooling function is set. Heating Circuit: In the Heating Circuit modus, the heating circuit is used for room cooling. This may be a surface heating circuit or a radiator heating circuit.

  • Page 35: Dehumidifier

    Dehumidifier Operating mode The operating mode of the dehumidifier function can be set here. Summer: In the summer operating mode, the dehumidifier turns on when the target humidity is exceeded, if the S/W day tem- perature is exceeded and the function is approved. Summer+Circ.: In the summer+circulation operating mode, the dehumidifier turns on when the target humidity is exceeded, if the S/W day temperature is exceeded and the heating circuit pump is running and the function is approved.

  • Page 36: Purging Time

    Purging time If the temperature on the collector sensor increases within a minute by the value defined under “increase”, the solar circulation pump will be turned on for the set “purging time” so that the medium to be measured is transported to the collector sensor. If when the set ΔT is reached this does not switch on, a 5-minute circulation pause time for the starting aid function will apply.

  • Page 37: Solar Bypass

    Solar bypass Use a relay to switch a bypass valve or a bypass pump. With this function, the flow can be guided past the storage if the flow tem- perature at the bypass sensor is less than in the storage to be filled. Variant In this menu, you can set if the flow is guided through the bypass with a pump or a valve.

  • Page 38: Return Flow Sensor

    Switch off temperature difference: The relay is turned off if this temperature difference is undershot between the storage sensor and the recooling sensor. Return flow sensor Selection of the return flow sensor. Storage sensor Selection of the storage sensor. Domestic hot water valve A domestic hot water valve is switched with time and temperature control with this function.

  • Page 39: Rps1 / Rps2

    The relay status determines if the condition of the relay is in sleep mode, and it also applies if the controller is restarted. Title Here you can assign a name for the selected relay. This name also appears on the Sorel-Connect page to simplify the assign- ment.

  • Page 40: Malfunctions/Maintenance

    Malfunctions/Maintenance Replacing the Fuse Repairs and maintenance may only be performed by a specialist. Before working on the unit, switch off the power sup- ply and secure it against being switched on again! Check that there is no power flowing! Only use the supplied spare fuse or a fuse of the same design with the following specifications: 2 AT/250 VSOREL Art.

  • Page 41: Additional Information

    Additional Information CAN bus The CAN bus can be used to connect two or more controllers with each other or with the data logger to exchange data. 1. The controllers are connected in series with the CAN bus cable. 2. The first and last controllers in this connection in series must be fitted with terminating resistance.

  • Page 42: Appendix

    Appendix Speed when „On“ In this menu, the calculation basis of the displayed speed is changed. If, for example, 30% is specified here, the fre- quency/voltage set under “PWM On” / “0-10V On” will be displayed during creation so that a 30% speed is present. When cre- ating the voltage/frequency of PWM Max / 0-10V Max, 100% speed is displayed.

  • Page 43: Tips

    Tips Tips Instead of setting the flow from the system with a volume flow limiter, the flow can be adjusted better through the stage switch on the pump and through the setting “max. speed” on the controller (see " Max. Speed " on page 23). This saves electrical energy! The service values include not only current measurement values and operating states, but also all of the settings for the controller.
  • Page 44 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: Your specialist dealer: Manufacturer: SOREL GmbH Mikroelektronik Reme-Str. 12 D - 58300 Wetter (Ruhr) +49 (0)2335 682 77 0 +49 (0)2335 682 77 10 info@sorel.de www.sorel.de...
