PowerMove VHB Kit
Assembly Instructions
1

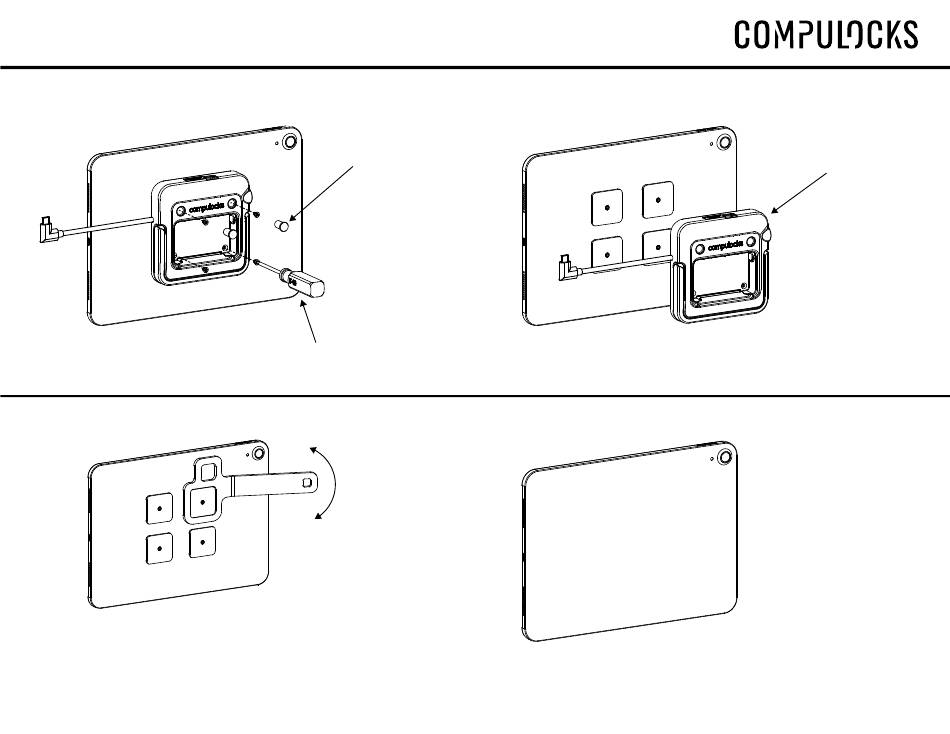

REMOVE THE 4 M3 x 5mm TORX FLAT HEAD SCREWS
USING T-10 SCREWDRIVER (SENT WITH ORIGINAL POWERMOVE)
3
PLACE TABLET ON A FLAT PROTECTIVE SURFACE
WITH THE 4 ADHESIVE PADS FACING UP.
WHILE SECURELY HOLDING THE DEVICE,
PLACE THE REMOVAL TOOL* ONTO THE ADHESIVE
PAD AS SHOWN AND ROTATE WITH STEADY FORCE
ALLOWING THE ADHESIVE TO BREAK FREE. * sold separately
©Compulocks Brands Inc. All Rights Reserved
SKU:PMVK01
REMOVE THE 2 SCREW CAPS
PRIOR TO REMOVING
THE SCREWS
www.compulocks.com | online@maclocks.com | +1 800-948-0344
2
4
REMOVE POWERMOVE
CONNECTOR ASSEMBLY
IF ANY ADHESIVE REMAINS ON THE DEVICE
IT CAN BE REMOVED USING AN ADHESIVE
REMOVAL SOLUTION COMPATIBLE
WITH THE DEVICE. DO NOT USE SOLVENT
Sheet 1 of 2
