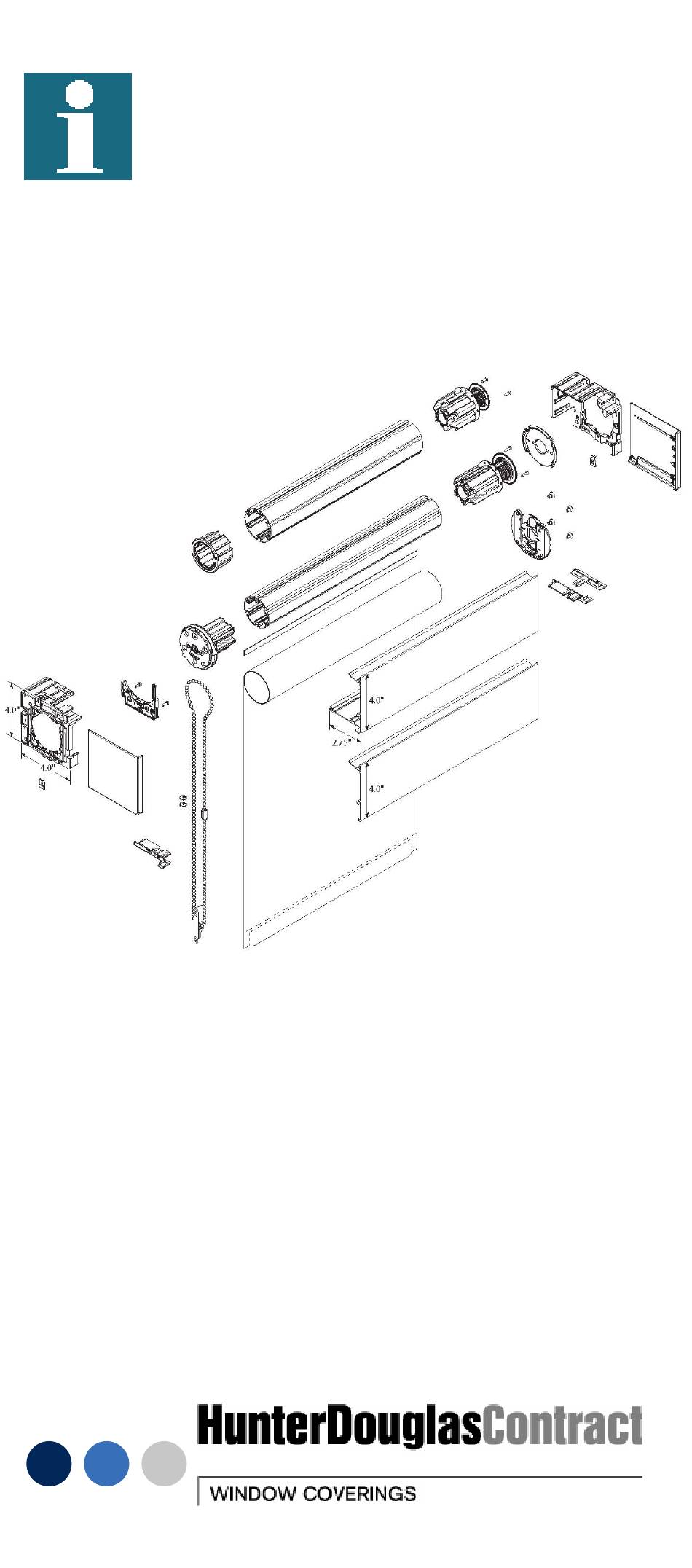

- Page 1 Installation Instructions RB 500 Manual Roller Shades Heavy Duty Clutch With Fascia 5-231 Series-Chain Operation...
-
Page 2: Installation
Installation Install the brackets (L or R marked inside) with the screws provided. a) recess b) ceiling c) wall Insert the Plate L into the bracket on the idle end side. Turn the Plate L in the rolling off direction (1) and secure with the locking clip (2). - Page 3 …line up teeth of the clutch with bracket & insert Turn the shade (10°) in the rolling off direction (1) and secure it with the locking clip (2). Put the chain between the chain outlet. Pay attention that stamping and roll-off direction of the shade are identical.
- Page 4 Slide the chain outlet up to the clutch and attach on the bracket with the 2 screws provided. Secure the shade by turning the locking ring away from bracket. Option: Leveler To adjust skewing, put the provided Allen key into the screw of the leveler and turn it left or right to move the shade up and down.
- Page 5 Push the fascia to snap it into the bracket. Slide the bracket covers onto the brackets. Removal Place the screw driver under the bracket cover, turn the screw driver and slide the bracket cover from the bracket.
- Page 6 Press the bottom of the fascia upwards (1) and pull it outwards (2). Loosen both screws from the chain outlet and remove the outlet. Open fastener on bracket adapter. Place the screw- driver into the slot of the bracket clip & slide the clip down and turn the shade in the roll-up direction.
