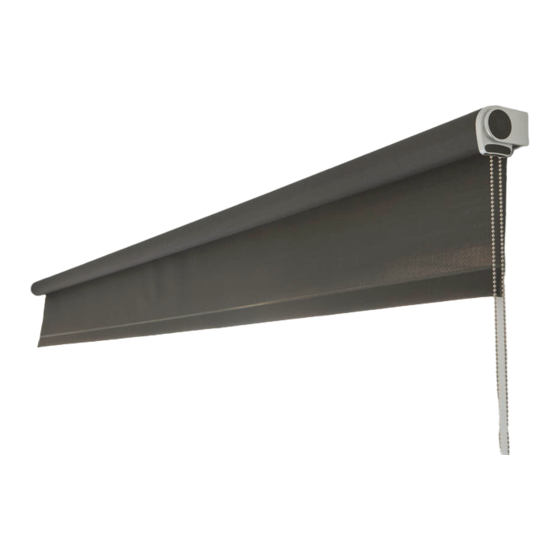

HunterDouglas RB 500 Standard+ Manual Installation

TOOLS NEEDED

Pencil

INSTALLING THE BRACKETS

STANDARD+ 3" FASCIA BRACKETS
b
a
d
c

OPTIONAL: INTEGRATED LEVELER

IDLE END ADJUST LEVELER
Las Vegas • Chicago
800.229.5300
HDhospitality.com
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners.
Standard+ and Heavy Duty+ with Fascia
Manual Clutch Installation
Measuring
Level
Tape
HEAVY DUTY+ 4" FASCIA BRACKETS
b
a
d
Insert the provided Allen key into the set screw
of the leveler.
Adjust skewing by turning the Allen key left or
right to move the shade up or down. Support
the shade with your hand if necessary.
All adjustments can be made after the shade
has been installed and after the operation has
been tested.
Screwdriver
Drill with
bits
Mount into wood or metal studs or into concrete with concrete anchors.
Drywall anchors are not recommended.
Determine the mounting location.
a) surface/wall b) ceiling c) on frame d) in recess
c
Measure and mark the bracket locations with a pencil.
Mount brackets with the screws provided. Pre-drilling is recommended.
Check that the brackets are level and aligned.
Allen Key Pliers
(provided with
optional Leveler)
1 of 3
