Viessmann ViCare Manual

Introductory information

Symbols

Symbol	Meaning
	Reference to other document containing further information
	Step in a diagram: The numbers correspond to the order in which the steps are carried out.
	Warning of material losses and environmental pollution
	Warning of personal injury
	Live electrical area
	Pay particular attention.
	Component must audibly click into place. or Acoustic signal
	Fit new component. or In conjunction with a tool: Clean the surface.
	Dispose of component correctly.
	Dispose of component at a suitable collection point. Do not dispose of component in domestic waste.

Intended use

Install and operate the ViCare thermostatic radiator valve as intended, exclusively in conjunction with the electronic control units and controllers of the supported Viessmann heat and power generators. Also take account of the relevant installation, service and operating instructions.
In particular, observe the current and voltage specifications for connections and hook-ups. The ViCare thermostatic radiator valve is intended for operation only:

• As a standalone device
  Or
• With a Viessmann heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2
  The values measured are sent wirelessly to the heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2.

Incorrect usage of the device is prohibited and results in an exclusion of liability. Installation, service and operating instructions included with the product and available online must be observed.
Note
The device is intended exclusively for domestic or semi-domestic use, i.e. even users who have not had any instruction are able to operate the device safely.

Product information

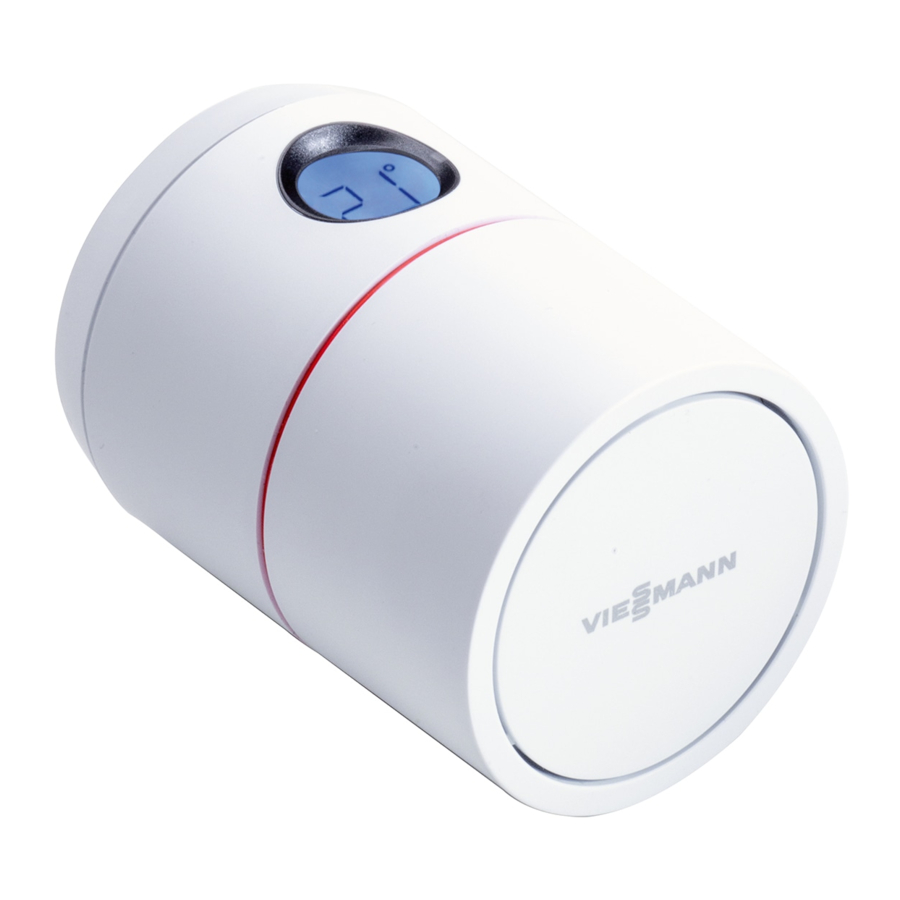

The ViCare thermostatic radiator valve is a radiator actuator for individual room control. The ViCare thermostatic radiator valve records the current room temperature via an integral temperature sensor.
The ViCare thermostatic radiator valve has an internal frost protection function that prevents the pipes from freezing. If the room temperature falls below approx. 8°C, the ViCare thermostatic radiator valve opens until the temperature reaches at least 8°C again.
With the "open window detection" function, the thermostatic valve is automatically closed to save energy costs.
Note
To prevent the valve from sticking, the motor of the ViCare thermostatic radiator valve is opened and closed again every 7 days.
Current information about the ViCare thermostatic radiator valve
If you have any questions or problems, you can find more information at
https://viessmann.zendesk.com/hc/de

Data connections

In conjunction with a heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2

1. Heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2
2. Low power radio
3. ViCare thermostatic radiator valve
4. WiFi
5. WiFi router (on site)
6. Secure internet connection to the Viessmann server
7. Viessmann server
8. Mobile network
   or
   WiFi connection

11. Mobile device

Operation via app

ViCare app
You can control your heating system or ViCare individual room control remotely via the internet using the app.
For further information, visit www.vicare.info or go to the App Store or Google Play Store:

Preparing for installation

Installation location

• Installation only in enclosed buildings
• The installation location must be dry and free of frost.
• Ensure ambient temperatures between 0 and +40°C.
• Installation on connection adaptor on thermostatic valve
• Do not cover the ViCare thermostatic radiator valve with furniture or curtains.

Note

• Check the reception quality of the thermostatic valve at the planned installation site. To do this, before installation, pair the ViCare thermostatic radiator valve near the heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2.
• If the reception quality is not sufficient, the wireless signal can be amplified by a wireless repeater:
  • ViCare wireless repeater for surface mounting, accessories
  • Wireless repeater for flush mounting, accessories

Range of the wireless signal

The range of wireless signals may be reduced by walls, ceilings and interior fixtures. These weaken the wireless signal, causing poor reception due to the following circumstances.

• On their way between transmitter and receiver, wireless signals are damped, e.g. by air or when penetrating walls.
• Wireless signals are reflected by metallic objects, e.g. reinforcements embedded in walls, metal foil of thermal insulation and thermal glazing with metallised thermal vapour deposit.
• Wireless signals are isolated by service ducts and lift shafts.
• Wireless signals are disrupted by devices that also operate with high frequency signals. Maintain a distance of at least 2 m from these devices:
  • Computers
  • Audio and video systems
  • Devices with active WiFi connection
  • Electronic transformers
  • Pre-ballasts

Angle of penetration

The reception quality remains best if wireless signals hit the walls vertically.
Depending on the angle of penetration, the effective wall thickness changes and so does the extent to which the electromagnetic waves are damped.

Flat (unfavourable) angle of penetration

1. ViCare thermostatic radiator valve
2. Heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2
3. Wall

Ideal angle of penetration

1. ViCare thermostatic radiator valve
2. Heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2
3. Wall

Installation sequence

Fitting the connection adaptor

Note
The valve must be wide open before the previous radiator actuator is removed. To do this, turn the actuator to the highest level.

Available as optional accessories:

Opening the thermostat

Inserting or replacing the batteries

2. Insert the batteries.
   Shown on display:
   • Delivered condition:
     " – – " is shown.
     Installation mode is active.
   • Replace the batteries:
     The set room temperature is displayed.

Note
Do not use rechargeable batteries.

Fitting the thermostat

1. Fit the thermostat by turning it to the right (clockwise) onto the connection adaptor until it is tight.

2. Turn the thermostat to the left (anti-clockwise), ensuring that display is facing in the required direction.

3. Press button for at least 3 seconds to close the thermostatic valve.
   Shown on display:
   The set room temperature is displayed.

Commissioning

Display and controls

1. Display
2. Operating button
3. Thermostatic head
   • Turn clockwise:
     Increases the set room temperature in increments of 0.5°C (audible clicks).
   • Turn anti-clockwise:
     Decreases the set room temperature in increments of 0.5°C (audible clicks).

Shown on display

1. Current set room temperature
   A dot after the temperature display means 0.5°C.
   – – Installation mode
   Battery empty.
   Status of the wireless connection:
   • Illuminated continuously:
     The wireless connection is active.
   • Flashing:|
     The wireless connection has been interrupted.
   • Flashing quickly:
     The wireless connection is being established.
     Note
     Flashing:
     The symbol is displayed once a second.
     Flashing rapidly:
     The symbol is displayed twice a second.

Note

• If the wireless connection between the ViCare thermostatic radiator valve and the heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2, has been interrupted, this connection is automatically re-established.
• If you try to make settings when the child lock is activated, the display flashes quickly 5 times. Settings are not possible.

Standby display

If you do not make any adjustments to the thermostatic head for 5 seconds, the standby display is activated. The display goes dark.

Pairing the ViCare thermostatic radiator valve

Only in conjunction with a heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2

1. Open the ViCare app. Open the settings menu.
   Tap on "Individual room control".
   Follow the instructions in the app.
2. Scan the access code (QR code) on the thermostat.
3. Pairing process
   Note
   The pairing process is only possible in installation mode. If the thermostat is not in installation mode, press operating button B for approx. 3 seconds until "– –" is displayed.
   Briefly press operating button .
   flashes.
   Shown on display
   • Successful:
     is illuminated continuously and "– –" flashes.
     Installation mode is active.
   • Failed:
     is shown.
     Repeat the pairing process.
4. Close the thermostat. Set the required set room temperature by turning thermostatic head .

Settings

Restoring factory settings

The factory settings of the thermostat can be restored:

• The connection to the heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2, is terminated.
• All fault messages and settings are reset.

1. Open the thermostat

3. Press and hold operating button , Insert the bat- tery at the same time.
   Shown on display:
   All displays are illuminated for about 2 seconds.
   "– –" is then shown.
   Installation mode is active.

Child lock

Only in conjunction with a heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2

Activating the child lock

Open the ViCare app. Open the settings menu. Tap on "Individual room control".
Follow the instructions in the app.
Note
If the child lock is activated, no settings can be made on the thermostatic valve. You can only adjust the set room temperature via the ViCare app.

What to do if

The display flashes.

flashes.

Cause	Remedy
flashes on the thermostat display approximately 1 month before the batteries run out.	Replace the batteries

is illuminated continuously.

is displayed.

and are displayed.
Only in conjunction with a heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2

is displayed.

is displayed.

All displays are off.

Further information on fault messages
See the ViCare app.

Maintenance

Software update

Only in conjunction with a heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2
If a new software update is available, it is automatically downloaded via the heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2 and the thermostatic valve is updated.

Cleaning

Please note
Commercially available cleaning agents can damage the surface of the thermostat. Do not use any cleaning agents.
The surfaces of the thermostat can be cleaned with a microfibre cloth.

Maintenance/battery replacement

The ViCare thermostatic radiator valve is maintenance-free.
If the batteries need replacing, this will be indicated on the thermostat display by .
Note
Replacing the batteries.

Specification

Dismounting the thermostat

1. Open the thermostat
2. Press operating button for at least 3 seconds to open the thermostatic valve.
   Shown on display
   • In conjunction with heat generator with Viessmann One Base or Vitoconnect, e.g. type OPTO2:
     "– –" and
   • As a standalone device:
     "– –"
3. Firmly press the tab at the bottom of the thermostatic valve. Unscrew the thermostatic valve from the adaptor in an anti-clockwise direction.

Final decommissioning and disposal of the heating system

Viessmann products can be recycled. Components and fluids from your heating system do not belong in ordinary domestic waste.
Please speak to your contractor about the correct disposal of your old system.
DE: Operating fluids (e.g. heat transfer medium) can be disposed of at municipal collection points.
AT: Operating fluids (e.g. heat transfer medium) can be disposed of at municipal collection points (ASZ).

Safety instructions

Please follow these safety instructions closely to prevent accidents and material losses.

Safety instructions explained

This symbol warns against the risk of injury.
Please note
This symbol warns against the risk of material losses and environmental pollution.
Note
Details identified by the word "Note" contain additional information.

Target group
These instructions are intended for system users.
This appliance can also be operated by children aged 8 and older, as well as by individuals with reduced physical, sensory or mental faculties or those lacking in experience and knowledge, provided such individuals are supervised or have been instructed in the safe use of this appliance and any risks arising from it.

Wireless signals can interfere with electronic medical devices, particularly pacemakers, hearing aids and defibrillators.
If any such equipment is fitted, users should avoid being in the immediate vicinity of operational wireless components.

Installation and adjustment

• All settings and work on the device must be carried out as specified in these instructions.
• Observe minimum clearances to ensure reliable signal transmission.

Operation of the system

• Only operate the devices inside closed buildings.
• Never operate devices in rooms where there is a risk of explosion.
• Protect devices from:
  • Moisture
  • Dust
  • Liquids
  • Vapours
  • Direct sunlight
  • Other direct thermal radiation
• After a restart, check the status of the wireless components.

Damaged equipment poses a safety hazard.
Check the appliance for external damage. Never start up a damaged appliance.

Auxiliary components and individual parts
For replacement, use only spare parts supplied or approved by Viessmann.
