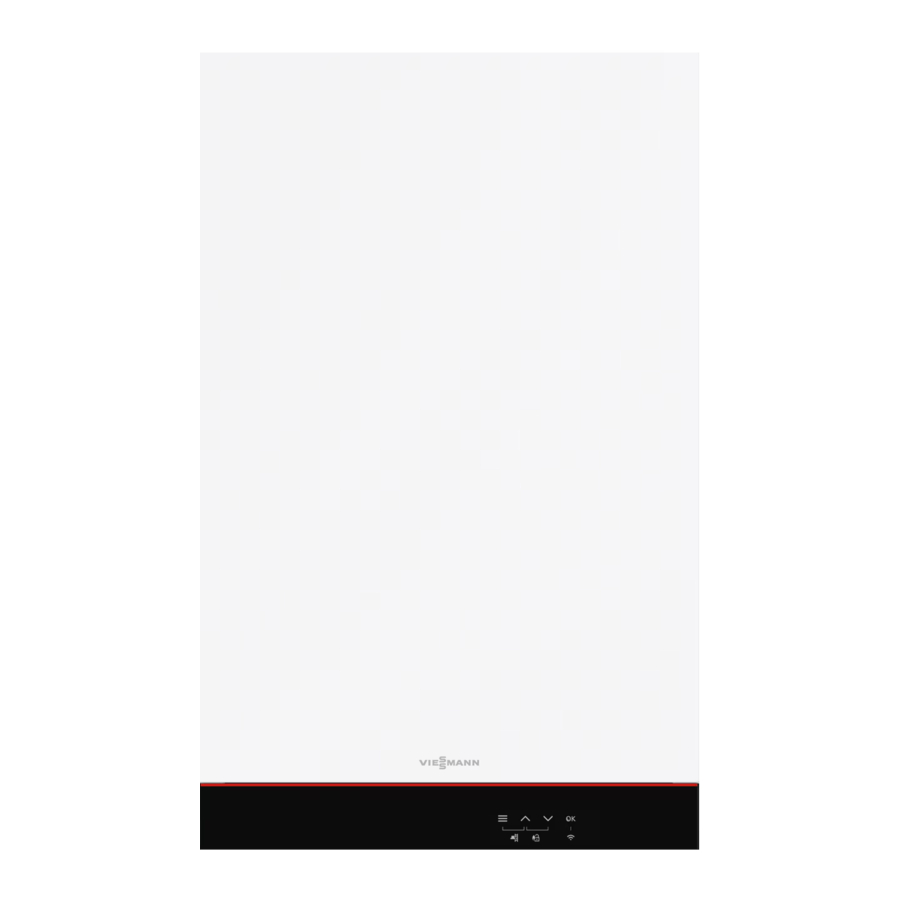

Viessmann 100-W HEAT ONLY Manual

Table of Contents

Contents

1 User interface
2 Getting started
3 Commissioning steps
- 3.1 Basic
- 3.2 Advanced
4 Viessmann Controls & ViGuide Monitoring
5 Documents / Resources
- 5.1 References
- 5.2 Download manual

User interface

This guide highlights the new and unique process for commissioning. For installation, please refer to the detailed steps in the Installation & Service Instructions.

User interface - Part 1

Heating circuit

DHW temperature

System pressure

DHW ECO function

Reduced temperature level

Wifi connection

Service menu

Fault display

Burner status

User interface - Part 2

OK > confirm settings

Menu > opens the main menu

Up & down > change parameter

Getting started

On the following pages you will find a step by step guide to commission the product by using the control panel. The default parameters are highlighted for each step. Please refer to the last page of this document to receive more information.

Commissioning steps

Access Point AP
Indicates the boiler is ready to be set up press 4 seconds to start commissioning from the panel

Basic

C.4 Operating Mode
4 > weather comp., 13 - default > constant operation (switch live) with optional room thermostat

End
After completing the last step the arrow will appear indicating commissioning is complete, press OK to confirm the setting and start the flue gas sensor check. The boiler will restart.

Adv
Select Adv and confirm with OK to access advanced parameters and make further adjustments.

FST will appear (the boiler is carrying out flue gas sensor check & will fire for a few seconds to raise sensor temperature). Please wait for this to complete. Once completed the boiler set temperature will appear on the screen and boiler is ready to run.

Advanced

C.7 Gas Type
2 - default > natural gas, 3 > liquid gas, press OK to confirm the setting

C.8 Flue System Type
1 > room air dependent (60 mm), 2 - default > room sealed (60 mm / 100 mm),
3 > room air dependent (80 mm), 4 > room sealed (80 mm / 125 mm), press OK to confirm the setting

C.9 Flue System Length
press to adjust the length in metres - the default setting is 1 m (an additional length of 1 m must be factored in for every flue bend), press OK to confirm the setting

End
After completing the last step the arrow will appear indicating commissioning is complete, press OK to confirm the setting and start the flue gas sensor check. The boiler will restart.

Viessmann Controls & ViGuide Monitoring

ViGuide

Full text explanation assisting you in commissioning the product
Connect the appliances to the internet and monitor the product remotely
Add Viessmann thermostat solutions to the system like the Vitotrol 100-E
Guided spare part replacement supporting you with step by step instructions

The application can be the Google Play Store

or Apple App Store.

For further information scan the QR code:

Google Play Store

Apple App Store

Viessmann Account

The Viessmann Account is our single sign on for all of our applications. Once set up you will get access to all our tools including ViGuide & our PartnerPortal. To sign up for a Viessmann Account, simply scan the QR code or visit www.viessmann.co.uk/account. It will take you directly to the application form. Once processed you will receive an email. Please confirm your settings in order to verify your account.

PartnerPortal

Stay informed by receiving the latest news & access our video content
Register your installations with Gas Safe
Benefit from our VPlus loyalty scheme & collect points with every installation
Book courses with our academy team or use our library of video tutorials
Discover all of our software applications, tools & services

Once your Viessmann Account is set up, you can access the Partner Portal via the QR code:

Further Information & Support

If further information is needed visit our support page. Here you will find detailed explanations, FAQs & video tutorials. Just scan the QR code to access the page
