Banner Performance P2 Node Manual

Performance P2 Node

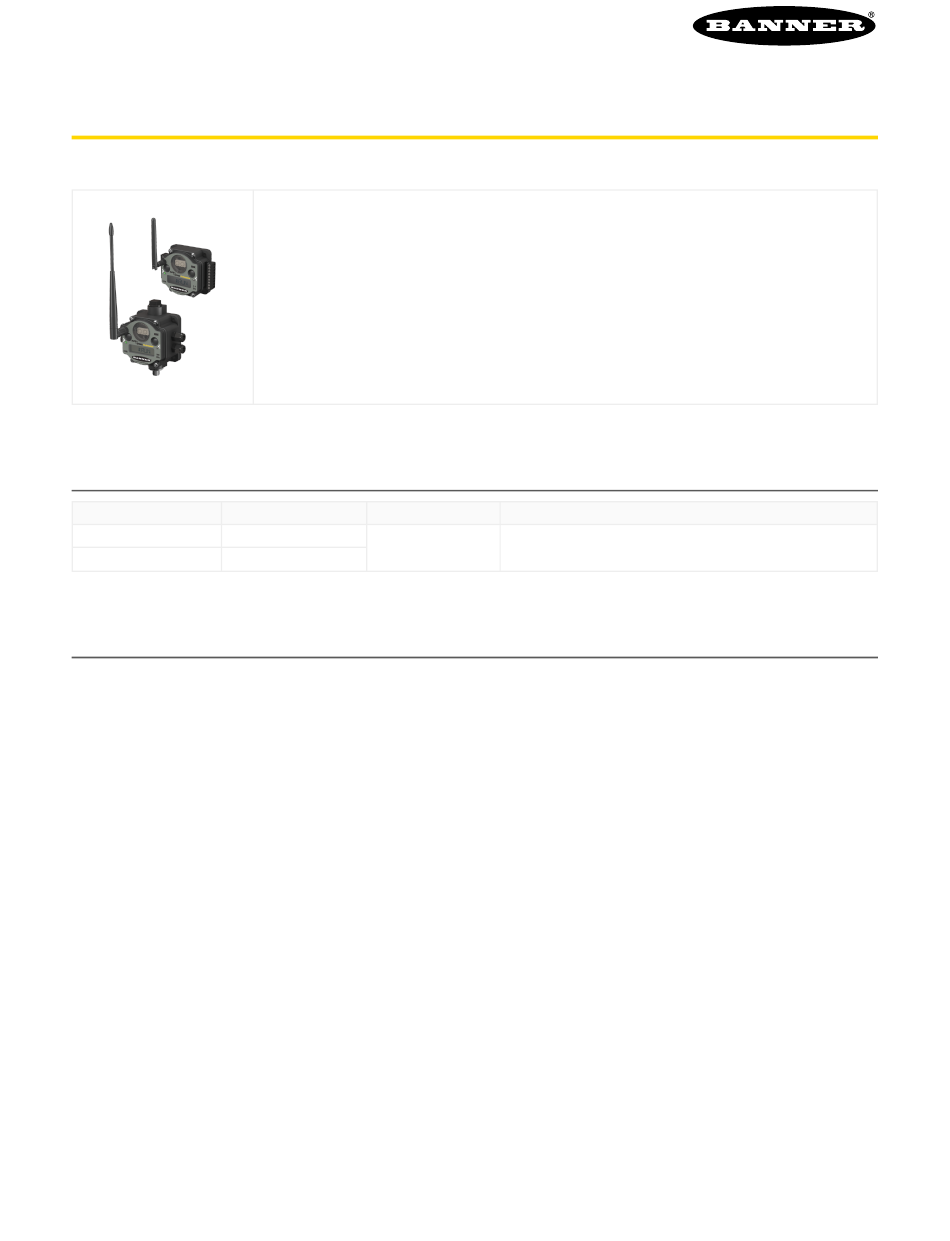

P2 Node Features
The Sure Cross® wireless system is a radio frequency network with integrated I/O that operates in most environments to eliminate the need
for wiring runs.
For additional information, updated documentation, and a list of accessories, refer to Banner Engineering's
website, www.bannerengineering.com.
P2 Node Models
Models
DX80N9X6S-P2 900 MHz ISM Band
DX80N2X6S-P2 2.4 GHz ISM Band
DX80...C (IP20; NEMA 1) models are also available. To order this model with an IP20 housing, add a C to the end of the model
number: DX80N9X6S-P2C.
Configuration Instructions
Setting Up Your Wireless Network
To set up and install your wireless network, follow these steps.
For complete instructions, including binding, configuration, installation, weatherproofing, device menu maps, troubleshooting, and a list of
accessories, refer to Sure Cross® Wireless I/O Network Instruction Manual (p/n 132607)
1. Disconnect the power from your Sure Cross® devices.
2. Configure the DIP switches of all devices. DIP switch configurations are always listed in the product's datasheet.
3. If your device has I/O, connect the sensors to the Sure Cross devices. Available I/O is always listed in the product's datasheet. If
your device does not have I/O, skip this step.
4. Refer to the wiring diagrams to apply power to all devices.
◦ For housed models, the Gateway's LED 1 is solid green and the Node's LED 2 flashes red to indicate there is no radio link
to the Gateway.
◦ For board-level models, the Gateway's LED is solid green and the Node's LED flashes red to indicate there is no radio link
to the Gateway.
5. Form the wireless network by binding the Nodes to the Gateway.
6. Observe the LED behavior to verify the devices are communicating with each other.
◦ For housed models, the Gateway's LED 1 is solid green and the Node's LED 1 flashes green to indicate it is communicating
with the Gateway.
◦ For board-level models, the Gateway's LED is solid green and the Node's LED flashes green to indicate it is communicating
with the Gateway.
7. Configure any I/O points to use the sensors connected to the Sure Cross devices.
8. Conduct a site survey between the Gateway and Nodes.
9. Install your wireless sensor network components.
Original Instructions
November 15, 2023
• Wireless industrial I/O device with four selectable discrete inputs, four sourcing discrete outputs,
two universal analog inputs, and two 0 to 20 mA analog outputs
• Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW for 2.4
GHz models
• 10 V DC to 30 V DC power input
• DIP switches for user configuration
• Frequency Hopping Spread Spectrum (FHSS) technology ensures reliable data delivery
• Transceivers provide bidirectional communication between the Gateway and Node, including fully
acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
Frequency Environmental Rating
IP67, NEMA 6
© Banner Engineering Corp.
I/O
Inputs: Four selectable discrete, two 0 to 20 mA (default) or 0 to 10 V (user
configurable)
Outputs: Four sourcing discrete, two 0 to 20 mA
p/n: 155862 Rev. K
