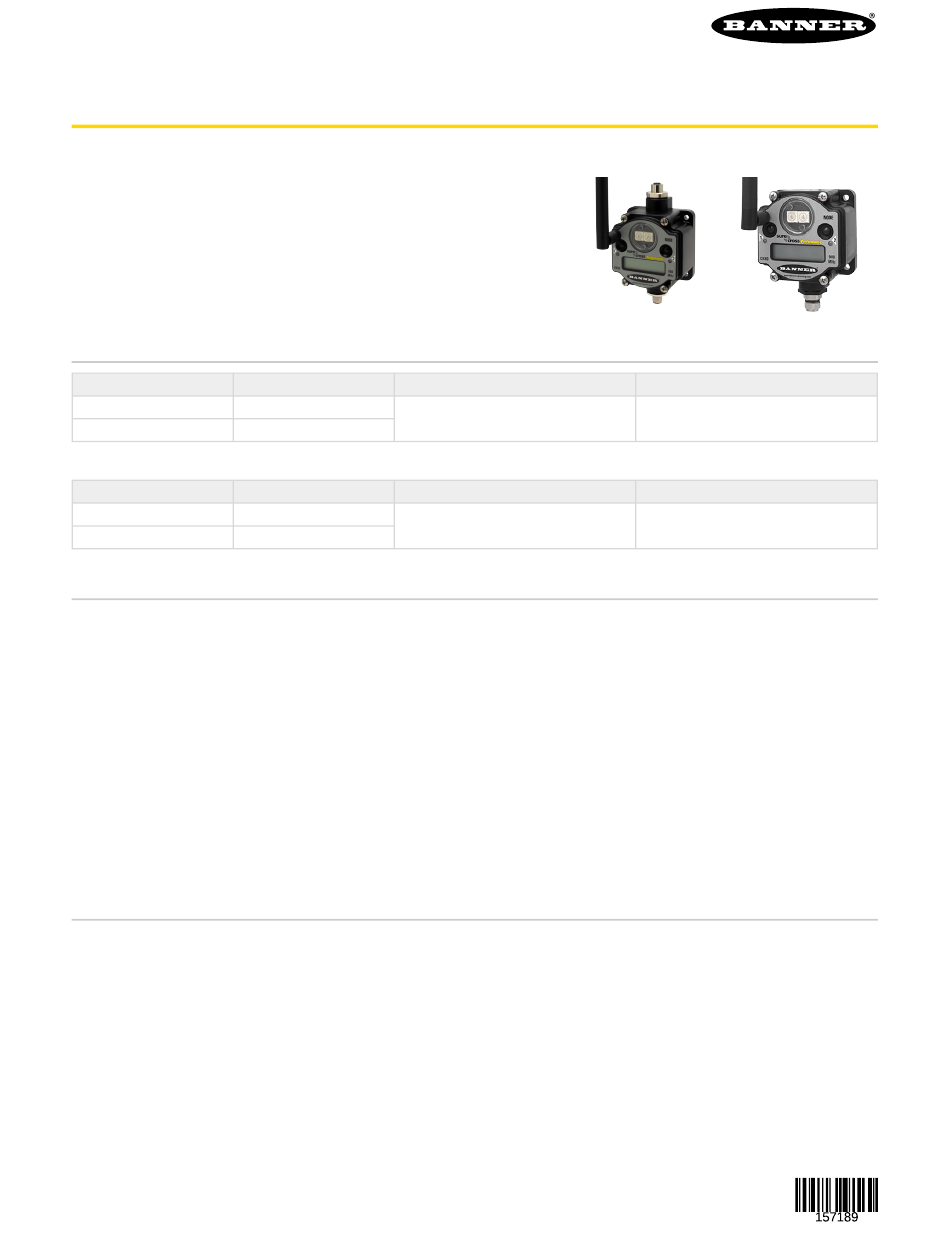

Banner Sure Cross DX80N9X6S-P6 Manual

Performance P6 Node
Features
The Sure Cross® wireless system is a radio frequency network with integrated I/O that
operates in most environments to eliminate the need for wiring runs.
• Wireless industrial I/O device with a 1-wire serial interface
• Selectable transmit power levels of 250 mW or 1 W for 900 MHz models and
65 mW for 2.4 GHz models
• DIP switches for user configuration
• Frequency Hopping Spread Spectrum (FHSS) technology ensures reliable data
delivery
• Transceivers provide bidirectional communication between the Gateway and
Node, including fully acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
Models
Models
DX80N9X6S-P6 900 MHz ISM Band
DX80N2X6S-P6 2.4 GHz ISM Band
The following models are no longer available for order, but are still covered by the information in this document.
Models
DX80N9X1S-P6 900 MHz ISM Band
DX80N2X1S-P6 2.4 GHz ISM Band
P6 Node General Operation
For the first five minutes after powering up, the Node operates in fast sample mode, sampling and sending data every two seconds. After five
minutes, the Node defaults to five minute sample intervals and the LCD turns off to save power, which is ideal for the battery-powered
models.
Use the DIP switches or the DX80 Performance Configuration Software to set the sample rate. The recommended sample/report rate for 10
to 30 V DC powered devices is 5 seconds.
To activate fast sample mode, single-click button 1. LED 2 is on (amber) during the fast sample mode. To exit fast sample mode and turn off
the LCD, click button 2 five times. This behavior is available with radio firmware versions 5.3 and higher.
Included with the P6 Node:
• BWA-HW-001: Mounting Hardware Kit, containing four M5-0.8 × 25mm SS screws, four M5-0.8 × 16mm SS screws, four M5-0.8mm
SS hex nuts, and four #8-32 × 3/4" SS bolts
• BWA-9O2-C (900 MHz) or BWA-2O2-C (2.4 GHz): Antenna, 2 dBd omni, rubber swivel RP-SMA male (not included with Internal
antenna models)
• MQDC1-506: 2 m (6.56 ft) cordset with a 5-pin female M12 (straight) connector on one end and flying leads on the other end, black
PVC jacket, nickel-plated brass nut
• Quick Start Guide (p/n 128185)
Configuration Instructions
Setting Up Your Wireless Network
To set up and install your wireless network, follow these steps.
For complete instructions, including binding, configuration, installation, weatherproofing, device menu maps, troubleshooting, and a list of
accessories, refer to Sure Cross® Wireless I/O Network Instruction Manual (p/n 132607)
1. Disconnect the power from your Sure Cross® devices.
2. Configure the DIP switches of all devices. DIP switch configurations are always listed in the product's datasheet.
3. If your device has I/O, connect the sensors to the Sure Cross devices. Available I/O is always listed in the product's datasheet. If
your device does not have I/O, skip this step.
4. Refer to the wiring diagrams to apply power to all devices.
Original Instructions
26-Feb-25
Frequency
10 V DC to 30 V DC
Frequency
Battery integrated into the housing
© Banner Engineering Corp. All rights reserved.
www.bannerengineering.com
10-30 V DC model
Power
Inputs: 1-Wire serial interface for one serial
sensing device
Power
Inputs: 1-Wire serial interface for one serial
sensing device
Integrated battery model
I/O
I/O
p/n: 157189 Rev. P
