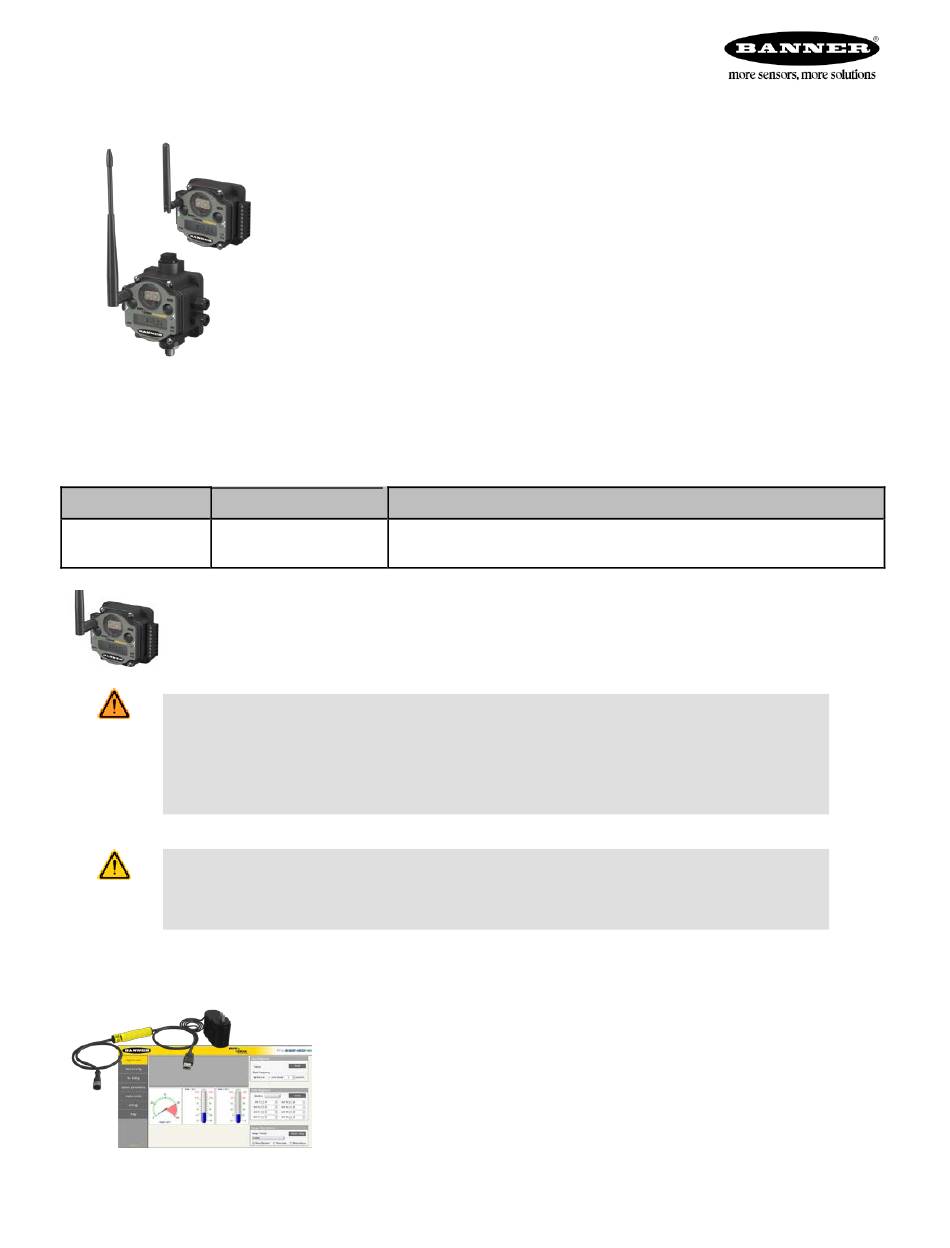

SureCross Performance Node
Configurable Node with up to 12 sourcing discrete inputs or outputs
For additional information, updated docu-
mentation, and accessories, refer to Ban-
ner Engineering's website,
www.banner-
engineering.com/surecross.
Models
Frequency
DX80N2X6S-P8-KR
2.4 GHz ISM Band
DX80...C (IP20; NEMA 1) models are also available. To order this model with an IP20 housing, add a C to the end of the
model number: DX80N9X6S-P8C.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death. This device does not include the self-checking redundant circuitry necessary to allow its
use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
CAUTION: Never Operate 1 Watt Radios Without Antennas
To avoid damaging the radio circuitry, never power up SureCross Performance or SureCross MultiHop (1
Watt) radios without an antenna.
SureCross User Configuration Tool
P/N 158215-KR
Rev. C
The SureCross® wireless system is a radio frequency network with integrated I/O that can
operate in most environments and eliminate the need for wiring runs. Wireless networks are
formed around a Gateway, which acts as the wireless network master device, and one or
more Nodes.
• Wireless industrial I/O device with up to 12 sourcing discrete inputs or outputs. Default
configuration is set to 6 inputs and 6 outputs (without bit-packing).
• Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW
for 2.4 GHz models
• 10 to 30V dc power input
• DIP switches for user configuration
• Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multiple
Access (TDMA) control architecture ensure reliable data delivery within the unlicensed
Industrial, Scientific, and Medical (ISM) band
• Transceivers provide bidirectional communication between the Gateway and Node, in-
cluding fully acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
I/O
Discrete I/O: Up to 12 PNP inputs or up to 12 PNP outputs (for a total of 12 I/O)
(Default configuration is 6 IN and 6 OUT, without bit-packing)
The User Configuration Tool (UCT) offers an easy way to link I/O points in your wire-
less network, view I/O register values graphically, and set system communication pa-
rameters when a host system is not part of the wireless network.
The UCT requires a special USB to RS-485 (model number BWA-UCT-900 for 1 Watt
radios, BWA-HW-006 can be used for all other radios) converter cable to pass infor-
mation between your computer and the Gateway. Download the most recent revi-
sions of the UCT software from Banner Engineering's website:
gineering.com/wireless.
10/2013
http://www.banneren-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SureCross DX80N2-6S-P8-KR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Banner SureCross DX80N2-6S-P8-KR

  • Page 1 The UCT requires a special USB to RS-485 (model number BWA-UCT-900 for 1 Watt radios, BWA-HW-006 can be used for all other radios) converter cable to pass infor- mation between your computer and the Gateway. Download the most recent revi- sions of the UCT software from Banner Engineering's website: http://www.banneren- gineering.com/wireless.
  • Page 2: Setting Up Your Wireless Network

    For additional information, including installation and setup, weatherproofing, device menu maps, troubleshooting, and a list of accesso- ries, refer to one of the following product manuals. • SureCross Quick Start Guide: Banner part number 128185 • SureCross Wireless I/O Network Manual: 132607 •...
  • Page 3 SureCross Performance Node Switches Device Settings DIP switch configured (Uses 5-8 for I/O configuration) 12 inputs, 0 outputs OFF* OFF* OFF* OFF* 11 inputs, 1 output 10 inputs, 2 outputs 9 inputs, 3 outputs 8 inputs, 4 outputs 7 inputs, 5 outputs 6 inputs, 6 outputs 5 inputs, 7 outputs 4 inputs, 8 outputs...
  • Page 4 SureCross Performance Node Input Param- Bit 15 eter Input Point # Parameter Data Define outputs the same way by adjusting the bit field stored in I/O 9's threshold parameter [15:0]. Verify the bit pattern for outputs does not overlap the input pattern. In the example below, I/O points 6-12 are set as outputs. Input Param- Bit 15 eter...
  • Page 5 • Non-Performance radios must be set to use Extended Address Mode (DIP switch 1 ON) For more detailed instructions about setting up your wireless network, refer to the Quick Start Guide, Banner document number 128185. For more information about using Performance and non-Performance radios within the same network, refer the technical note titled Mixing Performance Radios and 150 mW Radios in the Same Networklisted on the FAQ/Knowledgebase section of Banner's Wireless Sensor Networks website.
  • Page 6 SureCross Performance Node Terminal Blocks and Wiring (12 Sourcing I/O Models) IP67 Wiring Board (-P8 Models) IP20 Wiring Board (-P8C Models) IO12 IO11 IO10 IO10 IO3 Tx/+ Rx/- IO11 IO2 IO12 IO1 IOx. Input or output (depending on configuration) RX/-. Serial comms line for Gateways and DX85s only. No con- nection for Nodes.
  • Page 7: Modbus Register Table

    SureCross Performance Node LED 1 LED 2 Node Status Radio Link Ok (flashing green) Device Error (flashing red) (flashing red) No Radio Link (flashing red, 1 per 3 sec) Modbus Register Table Modbus Holding Register I/O Type Holding Register Terminal Block I/O Range Representation Labels...
  • Page 8 SureCross Performance Node Radio General 2.4 GHz Compliance Housing FCC ID UE300DX80-2400 - This device complies with Polycarbonate housing and rotary dial cover; polyester FCC Part 15, Subpart C, 15.247 labels; EDPM rubber cover gasket; nitrile rubber, non- sulphur cured button covers ETSI/EN: In accordance with EN 300 328: V1.7.1 (2006-05) Weight: 0.26 kg (0.57 lbs)
  • Page 9: Banner Engineering Corp Limited Warranty

    ER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE. Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously manufactured by Banner Engineering Corp.
