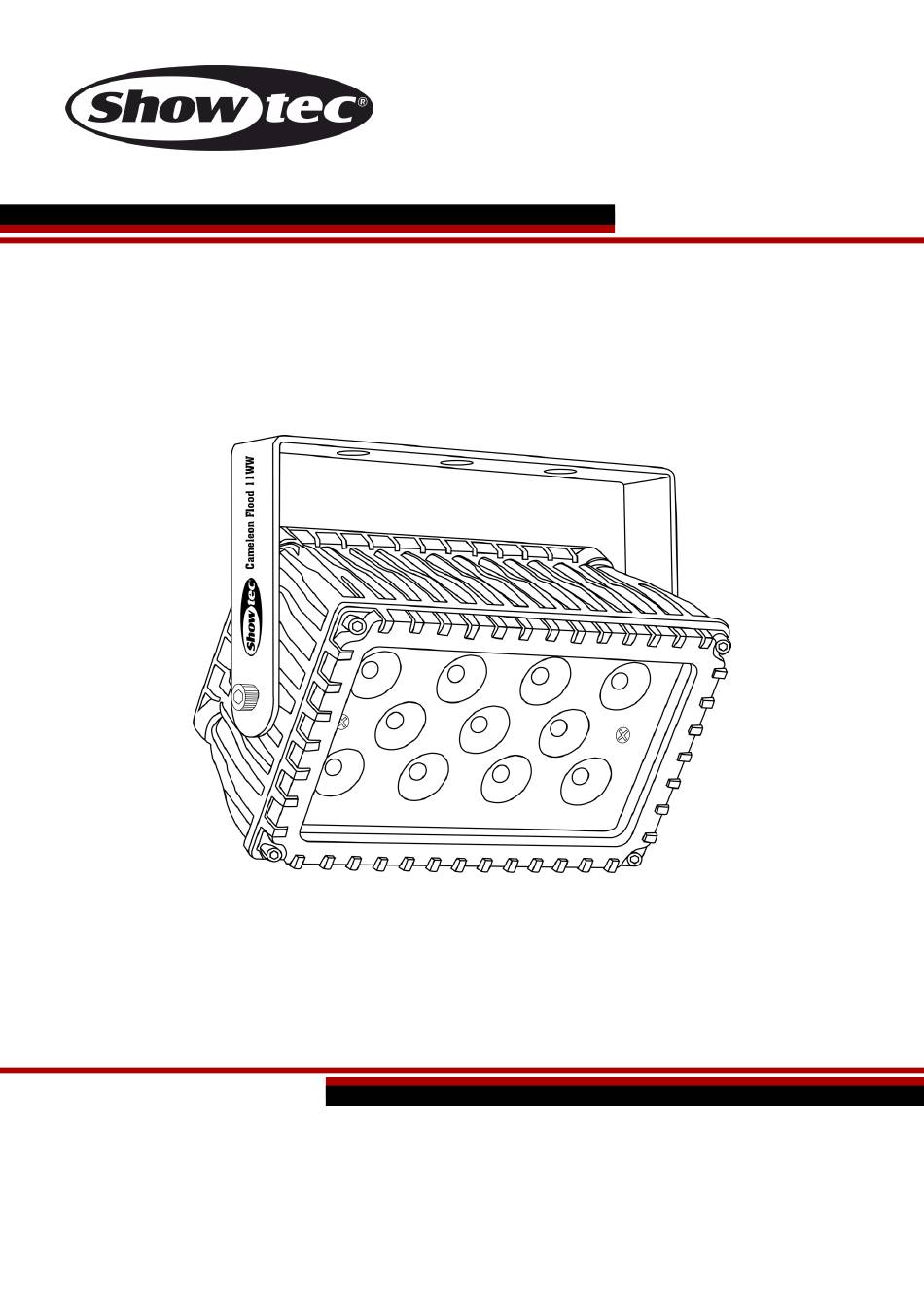

- Page 1 MANUAL ENGLISH Cameleon Flood 11WW Ordercode: 42688 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Cameleon Flood 11WW Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories..............................7 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Cameleon Flood 11WW 1x Schuko to 3-pins (IP-65 ) Power cable 1,5m ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Cameleon Flood 11WW • The user is responsible for correct positioning and operating of the Cameleon Flood 11WW. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Cameleon Flood 11WW The Cameleon Flood 11WW can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. -
Page 7: Return Procedure
Cameleon Flood 11WW Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Cameleon Flood 11WW Description of the device Features The Cameleon Flood 11WW is an economical but eco-friendly wall washer. It is an extension on our Cameleon series. It's an indoor and outdoor solution for illumination of numerous objects. Plug & play ... -
Page 9: Backside
Cameleon Flood 11WW Backside Fig. 02 03) Special 3-pin power cable OUT IP-65 04) Special 3-pin power cable IN IP-65 Installation Remove all packing materials from the Cameleon Flood 11WW. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Maintenance
Cameleon Flood 11WW Fig. 03 Maintenance The operator has to make sure that safety-related and machine-technical installations are to be inspected by an expert after every year in the course of an acceptance test. The operator has to make sure that safety-related and machine-technical installations are to be inspected by a skilled person once a year. -
Page 11: Troubleshooting
01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Cameleon Flood to your Showtec dealer. 03) The internal fuse. Return the Cameleon Flood to your Showtec dealer. 04) If all of the above appears to be O.K., plug the unit in again. -
Page 12: Product Specifications
Cameleon Flood 11WW Product Specifications Model: Showtec Cameleon Flood 11WW Input Voltage: 100-240 VAC, 50/60Hz Power consumption: 13W (full output) Power linking 110V: 50 pcs Power linking 240V: 130 pcs Protection rate: IP-65 Dimensions: 170 x 70 x 128 mm (LxWxH) (included bracket) -
Page 13: Dimensions
Cameleon Flood 11WW Dimensions Ordercode: 42688... -
Page 14: Notes
Cameleon Flood 11WW Notes Ordercode: 42688... - Page 15 Cameleon Flood 11WW Ordercode: 42688...
- Page 16 ©2016 Showtec...
