Vertiv Liebert APM2 EBC Quick Installation Manual

Vertiv™ Liebert® APM2 UPS UL
Modular EBC
Quick Installation Guide
IMPORTANT: Before installing, connecting to supply or
operating your Vertiv™ Liebert® APM2 UPS, refer the Safety
and Regulatory Statements sheet. For detailed installation,
operation, maintenance, and troubleshooting information,
visit the Liebert® APM2 UPS product page for the SL-71373
Vertiv™ Liebert® APM2 Modular EBC User Manual available
at www. V ertiv.com or
use the QR code below.
Mechanical Installation
Vertiv™ Liebert® APM2 Modular EBC is designed to be
compatible with 60 kVA 208 V/120 kVA 480 V UPS Frame.
Inspecting the Modular EBC
Inspect the Liebert® APM2 Modular EBC for damage. If you
find any damage, document and photograph the damages
and notify your local Vertiv representative.

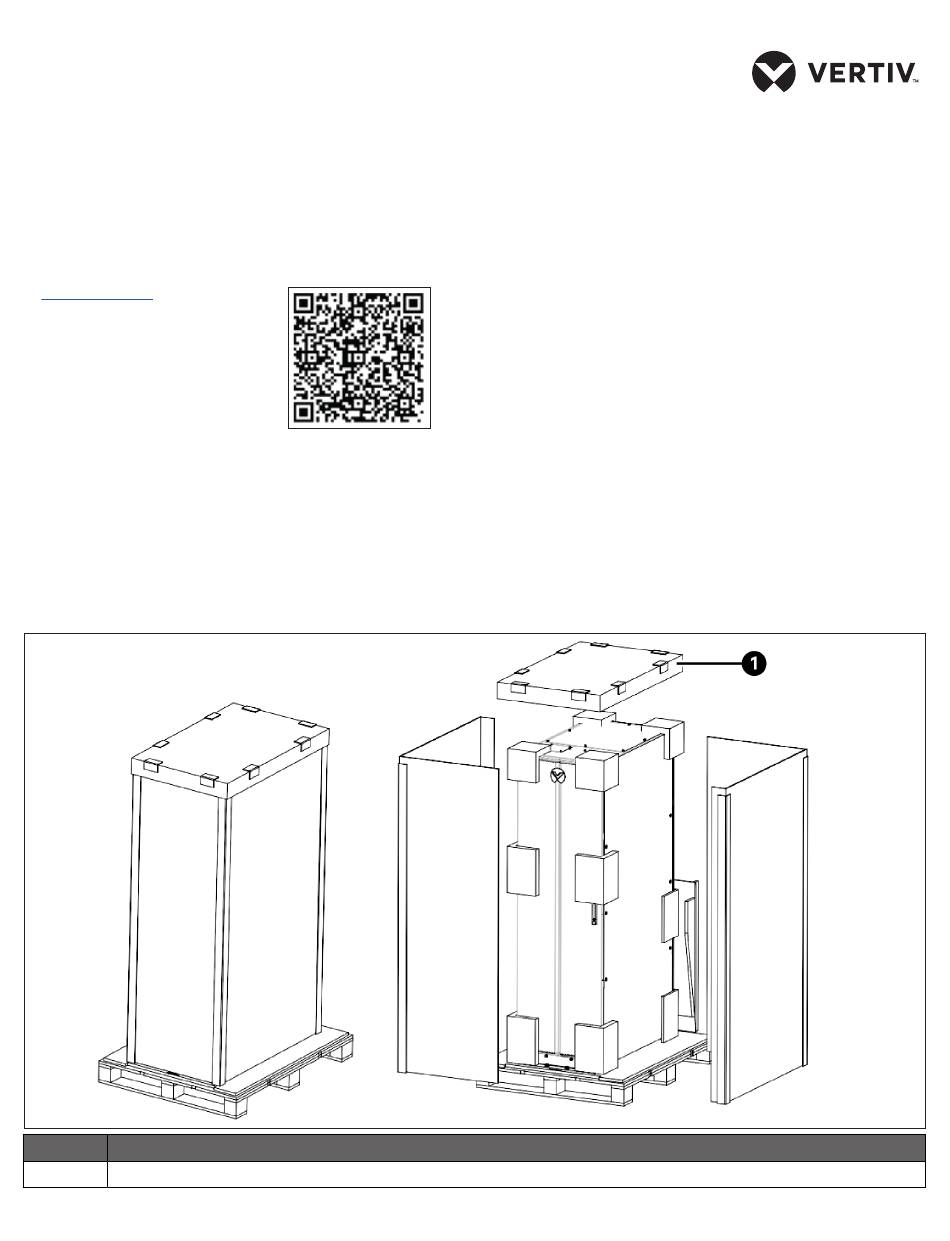

Figure 1. Removing the Packaging Material
Item Description
1 Top cover
PROPRIETARY AND CONFIDENTIAL ©2025 VERTIV GROUP CORP.
Choosing the Location
The Liebert® APM2 Modular EBC measures 51.96 in. x
40.94 in. x 86.61 in. (1320 mm x 1040 mm x 2200 mm). Install
the Liebert® APM2 Modular EBC in a clean, well-ventilated
environment with the ambient temperature range of 32 °F to
104 °F (0 °C to 40 °C). For installation and maintenance,
minimum 3 ft. (914 mm) clearance is required in the front of
the unit. For standard unit UPS configuration with top fans,
rear clearance is not required.
If the following options are selected, the rear clearance is
modified by the higher of the two values.
• Seismic anchoring selection: Up to 5 in. (127 mm) may be
required in the rear of the Liebert® APM2 Modular EBC.
• UPS front to rear airflow option configuration selection:
At least 20 in. (500 mm) in the rear.
NOTE: For UPS front to rear airflow configuration to permit
proper air flow and prevent overheating, do not block or
cover the ventilation openings (perforated panels) or blow air
down onto the unit.
SL-80044_REVA_03-25 1
