Summary of Contents for Sundstrom SR 200

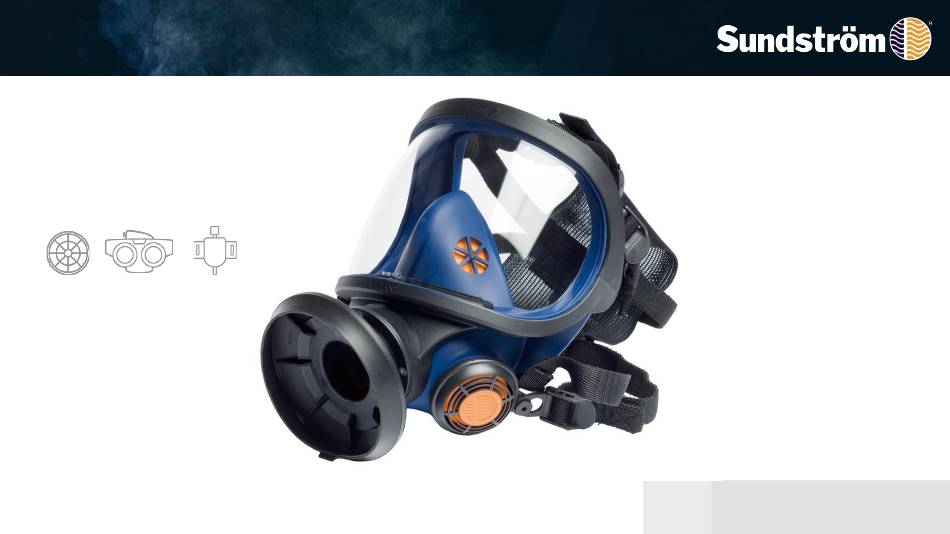

- Page 1 Operation instruction SR 200 Full face mask Revision: 04 OI01H-1218 SR 200 2020-03-17...
-
Page 2: General Information
• Together with fan unit SR 500, SR 500 EX or SR 700 in accordance with EN 12942:1998, class TM3. • Together with compressed air attachment SR 307 in accordance with EN 14594:2005 class 3A/3B. When selecting equipment for SR 200 some of the factors that should be considered are as follows: • Type of pollutant •... - Page 3 Unpacking SR 200 Packing list • Full face mask • Filter adapter • Pre-filter • Pre-filter holder • Cleaning tissue • ID-tag • User instructions OI01H-1218 SR 200 2020-03-17...
- Page 4 Squeeze hard until you hear small tab molded into the side the particle filter snap onto of the gas filter. Push firmly the gas filter. and twist the coin until the filter pops off. OI01H-1218 SR 200 2020-03-17...
- Page 5 45 of the filter is in the internal degrees. groove of the filter mounting all around. 2.2 Fit pre-filter SR 221 in the pre-filter holder and press it into place on the filter. OI01H-1218 SR 200 2020-03-17...
-
Page 6: Inspection Before Use
3.3 Check the head harness complete, correctly assembled and thoroughly cleaned. 3.4 Check that the 3.2 Check the mask body, appropriate filter is intact. membranes, valve seats and head harness for wear, cuts, cracks, missing parts, and other defects. OI01H-1218 SR 200 2020-03-17... - Page 7 Adjust the fit of the mask on your face, so that it fits firmly but comfortably. Adjust the lengths of the upper pair of straps and fix by means of the buckles. OI01H-1218 SR 200 2020-03-17...
- Page 8 If any leakage is detected, check the inhalation and exhalation valves or adjust the straps of head harness. Repeat the fit check until there is no leakage. OI01H-1218 SR 200 2020-03-17...
- Page 9 Allen key to remove the two screws holding the frame halves together. 6.2 Carefully remove the upper frame half. Carefully prise the top part of the mask off the visor and remove the visor from the lower groove. OI01H-1218 SR 200 2020-03-17...
- Page 10 6.7 Fit the screws and tighten of the mask over the visor, them alternately until the two and make sure that the visor halves of the frame are firmly is in the groove in the mask. in contact. OI01H-1218 SR 200 2020-03-17...
- Page 11 7.2 Two membranes are fitted, i.e. one on each inside of the inner mask. The dowels for these membranes are removable and should be changed whenever the membrane is changed. Prise off the membranes and dowels. OI01H-1218 SR 200 2020-03-17...
- Page 12 Snap the valve covers off the valve seats. 8.2 Prise off the membrane. 8.4 Press the valve covers into place. A clicking sound indicates that the cover has snapped into place. OI01H-1218 SR 200 2020-03-17...
- Page 13 Snap the strap holders of the head harness off the mask strap mountings. 9.2 Check that the straps are not twisted and fit the new head harness. OI01H-1218 SR 200 2020-03-17...
- Page 14 Remove the visor. covers for the exhalation Clean as described above. valves and remove the Inspect all parts and replace membranes (two). with new parts as necessary. Leave the mask to dry, and then assemble it. OI01H-1218 SR 200 2020-03-17...
-
Page 15: Maintenance Schedule
Recommended minimum requirements on maintenance routines so you will be certain that the equipment will always be in usable condition. Before After Annually Visual inspection • Functional check • Cleaning • Membrane change • Head harness change • OI01H-1218 SR 200 2020-03-17... -
Page 16: Product Description
Product Description The SR 200 full face mask is made of silicone and is produced in one size that will fit most face sizes. The mask is equipped with three inhalation valves and two exhalation valves, and the breathing resistance is therefore very low. The exhalation valve covers with baffles effectively protect the valves and membranes against dust and paint mist. - Page 17 SR 200 FULL FACE MASK SYSTEM OVERVIEW FILTER FAN UNIT COMPRESSED AIR ATTACHMENT COMPRESSED AIR SUPPLY HOSE BREATHING HOSE No. Description Model No. Art No. Full face mask, PC visor SR 200 H01-1212 FILTER COMPRESSED AIR FILTER Full face mask, glass visor...
-
Page 18: Spare Parts, Accessories
SR 200 Spare parts / Accessories... - Page 19 Description Ordering No. PC-visor SR 366 (polycarbonate) R01-1201 Peel-offs SR 343 for PC-visor T01-1204 Glass visor SR 365 (laminated glass) T01-1203 Peel-offs SR 353 for glass visor T01-1205 Upper frame half R01-1202 Screw x2 Head harness, fabric R01-1203 Head harness, rubber SR 340 T01-1215 Carrier strap R01-1206...
