Sundstrom SR 570 Product Manual

Product

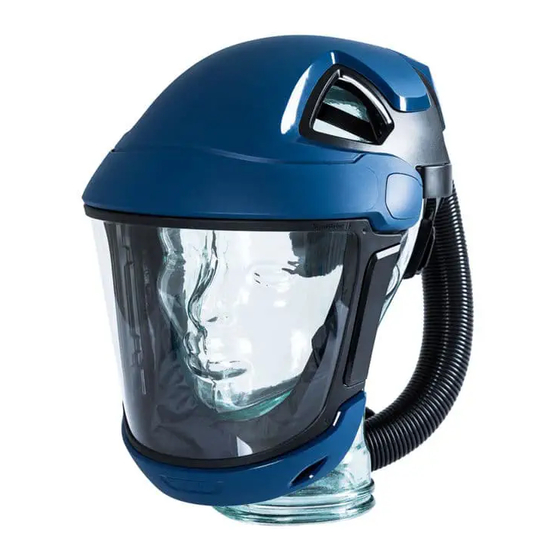

Face shield
The SR 570 face shield together with the battery-powered SR 500 or SR 700 fan and approved filters are
included in the Sundström fan-assisted respiratory protection device systems. The breathing hose of the face
shield is to be connected to the fan, equipped with filters. The pressure generated in the face shield prevents
particles and other pollutants from entering the hood.
The equipment can be used as an alternative to filter respirators in all situations for which filter respirators are
recommended. This applies particularly to work that is hard, warm or of long duration.
The characteristics of the SR 570 face shield are as follows:
Protects the breathing zone and the crown of the head • Hinged visor unit • Scratch resistant and chemicals
resistant PC visor • Adjustable head harness • Airflow deflector for optimal comfort • The supply air flow keeps
the visor demisted • Replaceable breathing air hose • Standardfastener for hearing protection • Optional peel-
offs • PC visor and visor frame protects from high speed particles 120 m/s at extremes of temperature, liquid
splashes and molten metal • Equipped with an exhalation valve • Available in one size.
Air flow rate
Service temperature
Storage temperature
Low flow warning level
Weight with breathing hose
Impact test with 6 mm dia.
steel ball against visor
Assigned Protection Factor¹
Nominal Protection Factor
Approvals
1) Specified in BS 4275 and applies regardless of the test results.
2) According to EN 529:2005.
A. SR 570
C. SR 500
D. SR 700
E. Hearing protectors
Head Office Factory
Tel: +46 10 484 87 00 Tel: +46 10 484 87 00
Visiting address: Visiting address:
Stockholmsvägen 33 Västergatan 4
SE-181 33 Lidingö SE-341 50 Lagan
Product leaflet
Model No.
SR 570
Product Description
Technical specification
SR 570/SR 500/SR 700 EN 12941:1998 +
175-240 l/min (SR 500)
175-225 l/min (SR 700)
-10 – +55ºC, < 90 % RH
-20 – +40ºC, < 90 % RH
< 175 l/min
≈ 850 g
120 m/s
40 (TH3)
2 500 (TH3)
EN 12941:1998 + A2:2008
EN 166:2001
EN 812:2012 with Bump cap
A2:2008
≥ 120 l/min
-
-
≤ 175 l/min
≤ 1 500 g
-
-
-
-
A
C
D
Ordering No.
H06-6512
E
