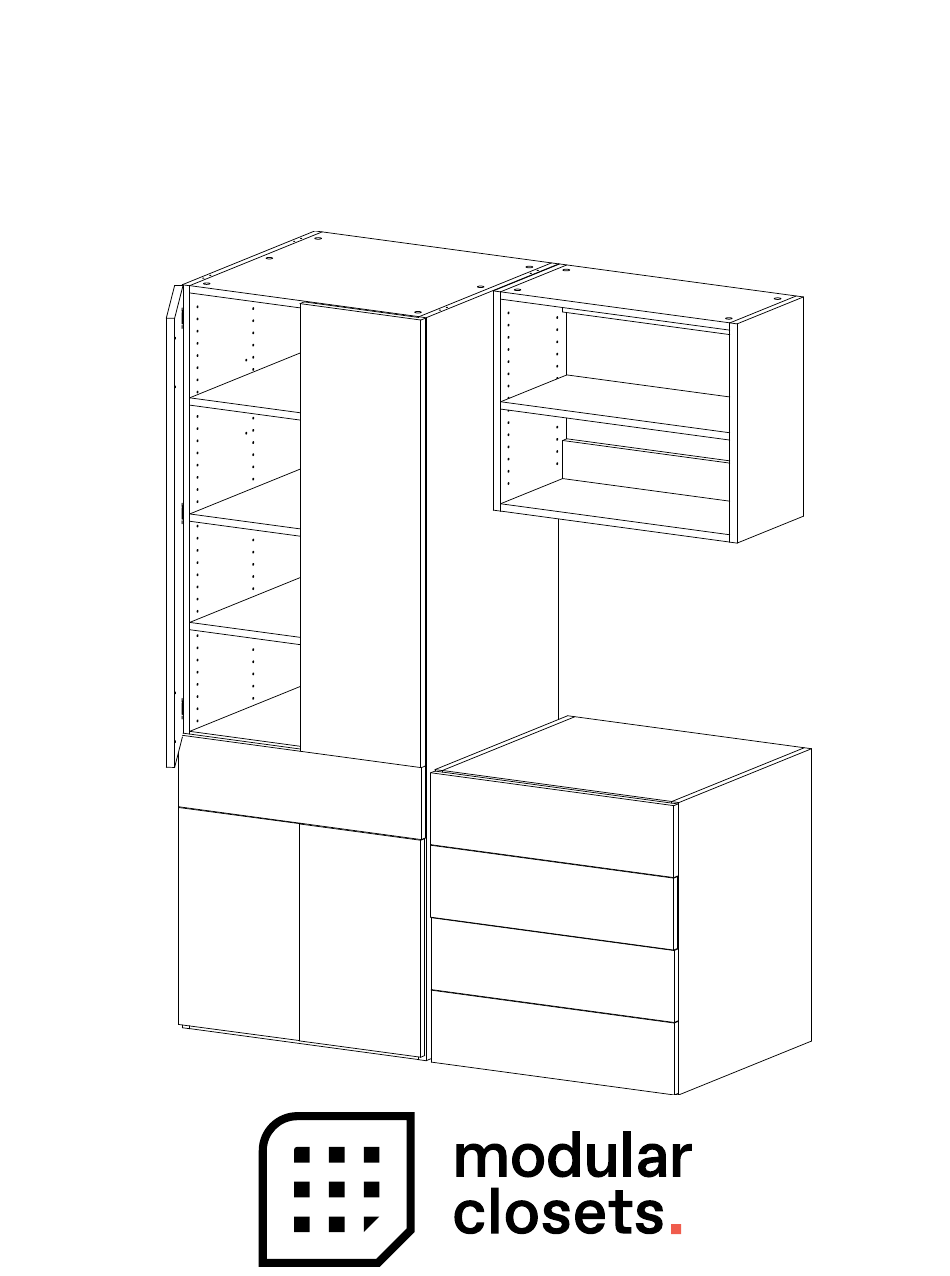

  • Page 1 Garage ASSEMBLY INSTRUCTIONS...
  • Page 2 We are committed to providing you with a seamless and efficient storage solution that enhances the organization and functionality of your space. Before you embark on assembling your new Garage system, we want to emphasize a crucial step to ensure a smooth and successful installation.
  • Page 3 Assembly and Installation Manual Contents Garage Base ..................Garage Wall ..................Garage Tall ................... APPENDIX (A) Adjustable Shelves ................. (B) Door Kits ..................(C) Drawer Kits ..................Wall Base Tall...

  • Page 4: Base Assembly

    Assembly and Installation Manual Base Assembly NOTES: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MODULAR CLOSETS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MODULAR 3/31/2025 11:51:48 AM CLOSETS IS PROHIBITED.
  • Page 5 Assembly and Installation Manual Boxes Needed GRG-BSP Base Side Panels GRG-BFS Base Fixed Shelf Pack Please hold additional boxes until after the base shell is completed. Afterwards all variants of the base unit will be listed. Please locate your variation for further instruction.
  • Page 6 Assembly and Installation Manual Hardware Packs Needed GRG-HRDP-BFS Campost x16 Camlock x16 Anchor Screws x4 How to use the Cam lock system: 180° Tools needed Philips screw Stud finder Drill Rubber mallet Level driver 2 person assembly suggested 6 - Base...
  • Page 7 Assembly and Installation Manual Step 1 From Box take the side panels and insert the hardware as shown GRG-BSP and drill into place. Campost Base - 7...
  • Page 8 Assembly and Installation Manual Step 2 Repeat for other side panel. 8 - Base...
  • Page 9 Assembly and Installation Manual Step 3 From the box GRG-BFS, insert camlocks in to the shelves and cleats, as shown below. Camlock Repeat Steps 2-3 for all the Fixed Shelves and Cleats Base - 9...
  • Page 10 Assembly and Installation Manual Step 4 With side panel flat insert fixed shelf and cleat into the panel. 10 - Base...
  • Page 11 Assembly and Installation Manual Step 5 Tighten camlocks on the inserted shelf and cleat with screwdriver. For base units all camlocks on both fixed shelves should be pointed toward the floor. Base - 11...
  • Page 12 Assembly and Installation Manual Step 6 Insert additional fixed shelf and cleat on opposite side. Tighten camlocks. 12 - Base...
  • Page 13 Assembly and Installation Manual Step 7 Insert side panel onto opposite side of installed fixed shelves and cleats. Base - 13...
  • Page 14 Assembly and Installation Manual Step 8 Tighten all camlocks connecting the attached side panel. 14 - Base...
  • Page 15 Assembly and Installation Manual Step 9 You have finished the base unit shell. Base - 15...
  • Page 16 Assembly and Installation Manual Step 10 Open leg hardware pack (HRD-552). Lay each unit down carefully and use the pre- drilled pilot holes on the bottom of each side panel to align your legs correctly and drill them into place. Repeat as necessary. Leg Kit 16 - Base...
  • Page 17 Assembly and Installation Manual Step 11 Using a stud finder, search for the studs in the wall and drill the screws through the top and bottom cleats in each unit into the studs. If there is only one stud, drill two screws into each cleat, one on top of the other. anchor screws Base - 17...
  • Page 18 DRAWING IS THE SOLE PROPERTY OF Base_Unit_3DR DRAWING IS THE SOL Base_Unit_2DR DRAWING IS THE SOLE PROPERTY OF MODULAR CLOSETS. ANY REPRODUCTION MODULAR CLOSETS. MODULAR CLOSETS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE IN PART OR AS A WH...

  • Page 19: Wall Assembly

    Wall Assembly DWG. NO. NOTES: THE INFORMATION CONTAINED IN THIS Wall_Unit_1Shelf DRAWING IS THE SOLE PROPERTY OF MODULAR CLOSETS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MODULAR SCALE: 1:10 3/18/2025 10:40:47 AM CLOSETS IS PROHIBITED.
  • Page 20 Assembly and Installation Manual Boxes Needed GRG-WSP Wall Side Panels GRG-WFS Wall Fixed Shelf Pack Please set aside one shelf and additional boxes (doors) until after the wall shell is completed. Unused hardware (wedgefix and screw dowels) should be set aside for further use later on.
  • Page 21 Assembly and Installation Manual Hardware Packs Needed GRG-HRDP-WFS Screw dowel x4 Campost x12 Anchor Screws x4 Camlock x12 Wedgefix x4 How to use the Cam lock system: 180° Tools needed Philips screw Stud finder Drill Rubber mallet Level driver 2 person assembly suggested Wall - 21...
  • Page 22 Assembly and Installation Manual Step 1 From Box take the wall side panels and insert the hardware as GRG-WSP shown and drill into place. Campost 22 - Wall...
  • Page 23 Assembly and Installation Manual Step 2 Repeat for other side panel. Wall - 23...
  • Page 24 Assembly and Installation Manual Step 3 Insert campost hardware into fixed shelves and cleats from box GRG- . Wall fixed shelf packs come with one adjustable. Set aside and view adjustable shelf instructions later. Camlock 24 - Wall...
  • Page 25 Assembly and Installation Manual Step 4 Insert cleat and fixed shelf into side panel. Wall units have all camlocks facing away from the inside. Wall - 25...
  • Page 26 Assembly and Installation Manual Step 5 Tighten camlocks of attached shelf and cleat. 26 - Wall...
  • Page 27 Assembly and Installation Manual Step 6 Insert remaining fixed shelf and cleat on the other side of the unit. Wall - 27...
  • Page 28 Assembly and Installation Manual Step 7 Tighten camlocks. 28 - Wall...
  • Page 29 Assembly and Installation Manual Step 8 Attach the remaining wall side panel to the top and tighten camlocks to secure unit. Wall - 29...
  • Page 30 Assembly and Installation Manual Step 9 You have finished the wall unit shell. 30 - Wall...
  • Page 31 Assembly and Installation Manual Step 10 Using a stud finder, search for the studs in the wall and drill the screws through the top and bottom cleats in each unit into the studs. If there is only one stud, drill two screws into each cleat, one on top of the other. anchor screws Wall - 31...
  • Page 32 DRAWING IS THE SOLE PROPERTY OF Wall_Unit_1Shelf DRAWING IS THE SOLE PROPERTY OF Wall_Un MODULAR CLOSETS. ANY REPRODUCTION MODULAR CLOSETS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MODULAR...
  • Page 33 Assembly and Installation Manual Tall Assembly NOTES: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MODULAR CLOSETS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MODULAR 3/18/2025 11:01:20 AM CLOSETS IS PROHIBITED.
  • Page 34 Assembly and Installation Manual Boxes Needed GRG-TSP Tall Side Panels GRG-TFS Tall Fixed Shelf Pack Please hold additional boxes (doors) until after the wall shell is completed. Afterwards the door variant of the wall unit builders can proceed to the door instructions located in the appendix.
  • Page 35 Assembly and Installation Manual Hardware Packs Needed GRG-HRDP-TFS Campost x20 Anchor Screws x4 Camlock x20 How to use the Cam lock system: 180° Tools needed Philips screw Stud finder Drill Rubber mallet Level driver 2 person assembly suggested Tall - 35...
  • Page 36 Assembly and Installation Manual Step 1 Take tall side panels form box GRG-TSP. Insert provided campost hardware and drill into spots circled below. Campost 36 - Tall...
  • Page 37 Assembly and Installation Manual Step 2 Repeat for other wall side panel. Tall - 37...
  • Page 38 Assembly and Installation Manual Step 3 From the box GRG-BFS, insert camlocks in to the shelves and cleats, as shown below. Camlock Repeat Steps 2-3 for all the Fixed Shelves, Cleats and Floating Cleats 38 - Tall...
  • Page 39 Assembly and Installation Manual Step 4 Insert cleat, floating cleat and fixed shelf into side panel. Tall units have all camlocks facing away from the inside. Tall - 39...
  • Page 40 Assembly and Installation Manual Step 5 Tighten all camlocks connected to the tall side panel. 40 - Tall...
  • Page 41 Assembly and Installation Manual Step 6 Repeat steps 4-5 on the opposite side of the prepared tall side panel. Tall - 41...
  • Page 42 Assembly and Installation Manual Step 7 Take remaining prepared tall side panel and carefully attach to the top of all fixed shelves and cleats. 42 - Tall...
  • Page 43 Assembly and Installation Manual Step 8 Tighten all camlocks attaching to the second tall side panel. Tall - 43...
  • Page 44 Assembly and Installation Manual Step 9 You have finished the tall unit shell. 44 - Tall...
  • Page 45 Assembly and Installation Manual Step 10 Open leg hardware pack (HRD-552). Lay each unit down carefully and use the pre- drilled pilot holes on the bottom of each side panel to align your legs correctly and drill them into place. Repeat as necessary. Leg Kit Tall - 45...
  • Page 46 Assembly and Installation Manual Step 11 Using a stud finder, search for the studs in the wall and drill the screws through the top and bottom cleats in each unit into the studs. If there is only one stud, drill two screws into each cleat, one on top of the other. anchor screws 46 - Tall...
  • Page 47 Adjustable shelves DWG. N NOTES: THE INFORMATION CONTAINED IN THIS Tall_Unit_5S DRAWING IS THE SOLE PROPERTY OF MODULAR CLOSETS. ANY REPRODUCTION Drawers IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MODULAR SCALE: 1:10 3/18/2025 11:01:20 AM CLOSETS IS PROHIBITED.
  • Page 48 DWG. NO. NOTES: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF Tall_Unit_5Shelves_2Doors DWG. NO. MODULAR CLOSETS. ANY REPRODUCTION NOTES: THE INFORMATION CONTAINED IN THIS DWG. NO. IN PART OR AS A WHOLE WITHOUT THE Tall_Unit_5Shelves DRAWING IS THE SOLE PROPERTY OF...

  • Page 49: Adjustable Shelves

    Assembly and Installation Manual Adjustable Shelves APPENDIX A Adj Shelves - 49...
  • Page 50 Assembly and Installation Manual It is recommended to install adjustable shelves AFTER installing all doors and drawers in each unit. The doors and drawers will act as a guide of where to install adjustable shelves to prevent any mistakes. Please continue only after verifying no further drawers or doors will be attached.
  • Page 51 Assembly and Installation Manual Boxes Needed GRG-AS (Come in packs of 2 or NG-WFS (Wall Fixed Shelf pack comes with third shelf to be used as adjustable shelf) Adj Shelves - 51...
  • Page 52 Assembly and Installation Manual Hardware Packs Needed HRDP-3AS Screw dowel x18 Wedgefix x18 Hardware Packs Needed HRDP-2AS Wedgefix x12 Screw dowel x12 Please Note: If applicable, for any built Wall Units, one shelf and extra hardware was set aside. You will be using set aside hardware for the installation of this specific shelf.
  • Page 53 Assembly and Installation Manual Step 1 Insert provided wedgefix clips into adjustable shelves (wall adjustable shelves have only two slots on each side). Have all open slots of the wedgefix hardware face outward. Wedgefix Adj Shelves - 53...
  • Page 54 Assembly and Installation Manual Step 2 Insert and drill provided screw dowels into side panels. Ensure all three (two for wall unit) screw dowels are lined up evenly and correctly positioned where the shelf should go. Screw Dowel 54 - Adj Shelves...
  • Page 55 Assembly and Installation Manual Step 3 Repeat for other side panel. Screw Dowel Adj Shelves - 55...
  • Page 56 Assembly and Installation Manual Step 4 Insert shelf with wedgefix clips facing downward into screw dowels. 56 - Adj Shelves...
  • Page 57 Assembly and Installation Manual Step 5 Ensure shelf is firmly pressed down and connected to screw dowels. Adj Shelves - 57...
  • Page 58 Assembly and Installation Manual Door Kits APPENDIX B 58 - Doors...
  • Page 59 Assembly and Installation Manual Boxes Needed GRG-DO Comes in heights at 23”, 30”, 56”, 76”. Doors - 59...
  • Page 60 Assembly and Installation Manual Hardware Packs Needed GRG-HRDP-DO Plate Hinge Screw Pull Tools needed Philips screw Stud finder Drill Rubber mallet Level driver 2 person assembly suggested 60 - Doors...
  • Page 61 Assembly and Installation Manual Step 1 Take door hinges from hardware pack and insert them into all open slots in each door. With a screwdriver turn the screws to lock them into place. Doors - 61...
  • Page 62 Assembly and Installation Manual Step 2 Use drill to punch supplied screws for handle attachment through the pilot holes on the door. Attach handle to screws on other side. Drawer Pull 62 - Doors...
  • Page 63 Assembly and Installation Manual Step 3 Insert and drill plates into one or both sides of the side panels to line up with installed door hinges. Doors - 63...
  • Page 64 Assembly and Installation Manual Step 4 Insert hinges into plates installed. The door should click into place upon attachment. 64 - Doors...
  • Page 65 Assembly and Installation Manual Drawer Kits APPENDIX C Drawers - 65...
  • Page 66 Assembly and Installation Manual Boxes Needed GRG-DF (Large or Small) GRG-DB Base Fixed Shelf Pack 66 - Drawers...
  • Page 67 Assembly and Installation Manual Hardware Packs Needed GRG-HRDP-AXL GRG-HRDP-DB(L/S) Axial Drawer Kit x1 Flat Screw x4 DB Screws x14 (Drawer Slide) (Axial Drawer Box) Tools needed Philips screw Stud finder Drill Rubber mallet Level driver 2 person assembly suggested Drawers - 67...
  • Page 68 Assembly and Installation Manual Step 1 Install rear brackets to drawer sides. 68 - Drawers...
  • Page 69 Assembly and Installation Manual Step 2 Mount drawer bottom with scews. DB Screws (Axial Drawer Box) Drawers - 69...
  • Page 70 Assembly and Installation Manual Step 3 Mount drawer back to attached rear brackets. Secure with screws. DB Screws (Axial Drawer Box) 70 - Drawers...
  • Page 71 Assembly and Installation Manual Step 4 Mount front fixing brackets to drawer front pre drilled holes. Insert drawer front. DB Screws (Axial Drawer Box) Drawers - 71...
  • Page 72 Assembly and Installation Manual Step 5 If using supplied handle, open GRG-HRDP-DF position screws and drill to punch them through the pilot holes on the drawer front and attach handle from other side. Drawer Pull 72 - Drawers...
  • Page 73 Assembly and Installation Manual Step 6 Install drawer slides to tall/base side panels using the diagram below to position your screw holes. Flat Screw (Drawer Slide) These two holes should have screws Drawers - 73...
  • Page 74 Assembly and Installation Manual Step 7 Insert drawer. Listen for a click to confirm it locked into slide. Repeat as necessary for all drawers. 74 - Drawers...
