ADDER ADDERLink INFINITY 102T Quick Start page 2

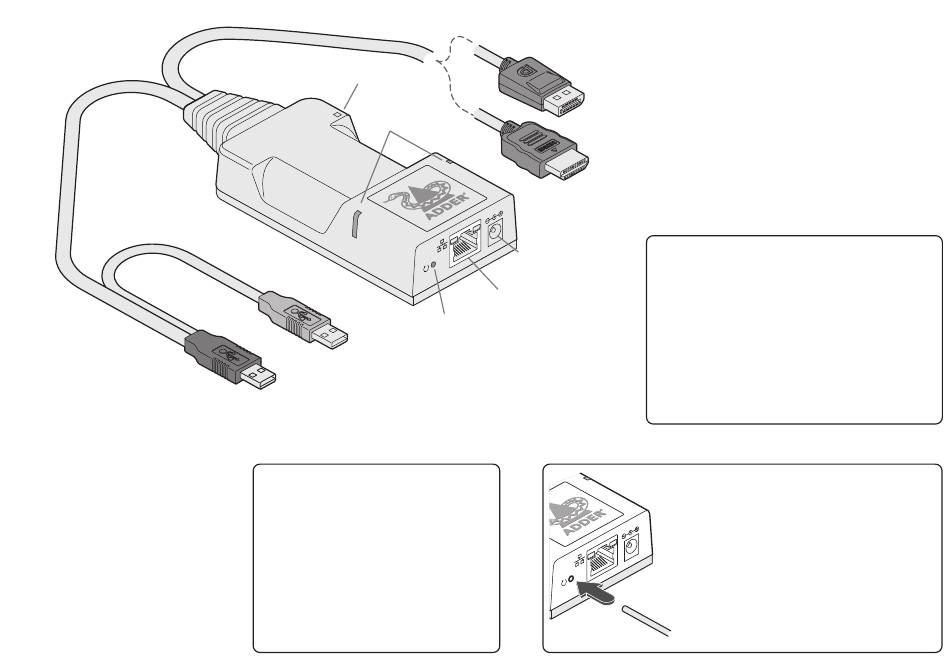

Connections
Black USB plug provides Hi-Speed
USB signals (plus power if the external
power adapter is not present)
Cable tie
mounting slot
Status
indicators
(see right)
(see below)
Red USB plug provides
power only when the
external power adapter
is not present
Power sourcing summary
Power Black Red
adapter USB USB Power sourced...
û ü ü
...from both USB plugs.
ü ü û
...from power adapter only.
ü ü ü
...from power adapter only,
unless it becomes
unavailable, in which case
power will be taken from
both USB plugs after a short
interruption.
DisplayPort™
or HDMI ®
video input
Optional
external power
input
Ethernet port (plus
indicators) - Either
link directly to an ALIF
Reset
receiver or via a network
button
switch
Main status indicators
• Off No power.
• Green Operating - Video, USB and network link all
present.
• Orange Operating - But video, USB and/or network
link missing.
• Red (momentarily) Unit is booting up, or
(consistently) Unit has failed, try rebooting.
• Red/green flashing Unit is in backup mode.
• Blue Factory reset has been activated.
• Red/blue flashing Unit is in upgrade mode.
• Fast green flash Unit is in identify mode.
To perform a manual factory reset
1 Power on the ALIF102T ie, switch on the host
computer.
2 Use a narrow implement (e.g. a straightened-out paper
clip) to press-and-hold the recessed reset button for more
than 15 seconds until the status indicators turn blue.
3 Release the reset switch. The indicators will remain
blue for a short while (less than ten seconds) while the
unit configures itself and should then change to green
if all connections are correct; or orange if one or more
of the video, USB and/or network links are missing.
Note: Allow the unit to fully complete the reset process by
waiting for at least 30 seconds after you release the button.
