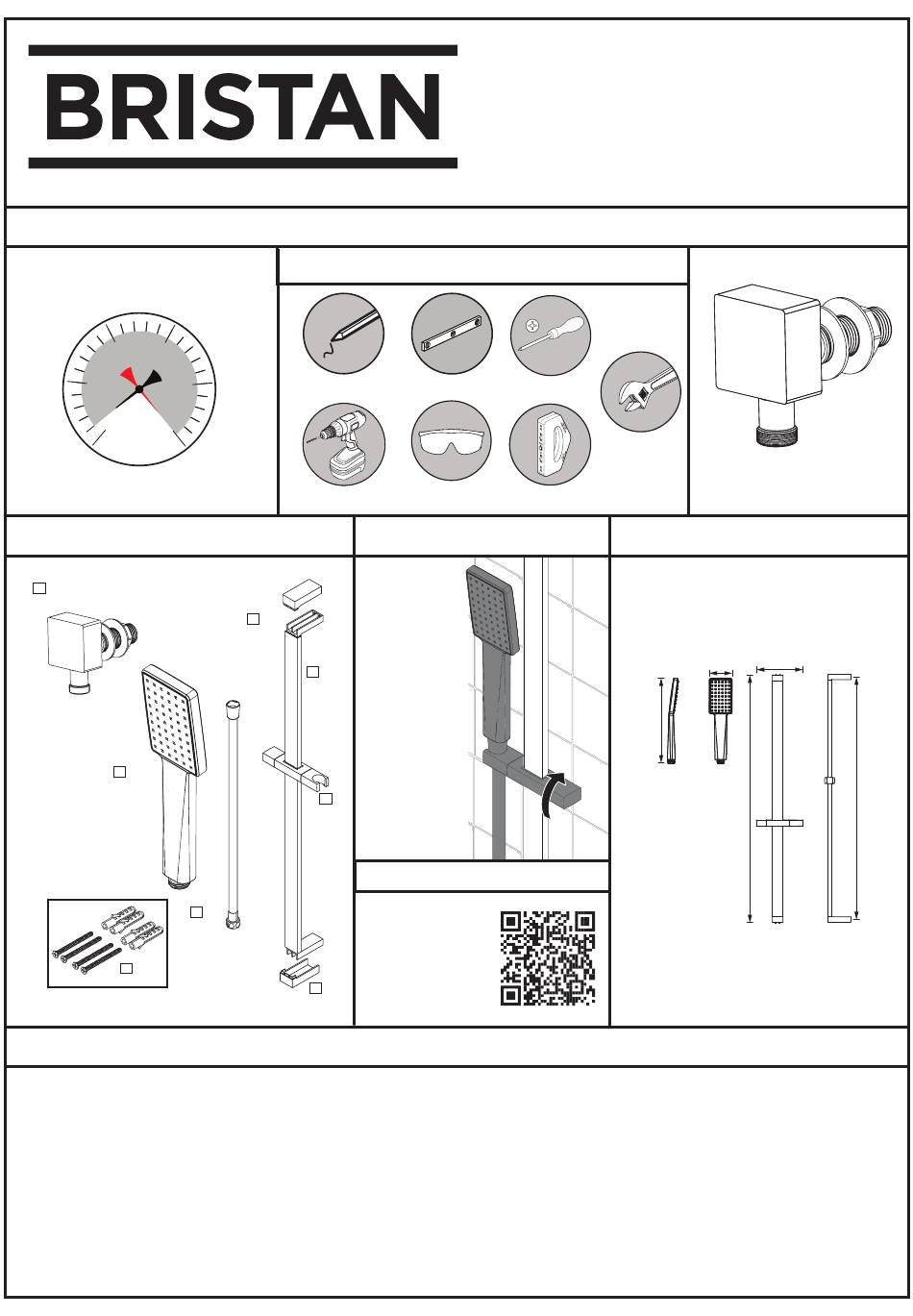

Dynamic Water Pressure
Max: 5.0 bar
Min: 0.2 bar
2.0
3.0
1.0
4.0
0
5.0
Pressure
BAR
Maximum Static Pressure: 10.0 bar
Pack Contents
Wall
x1

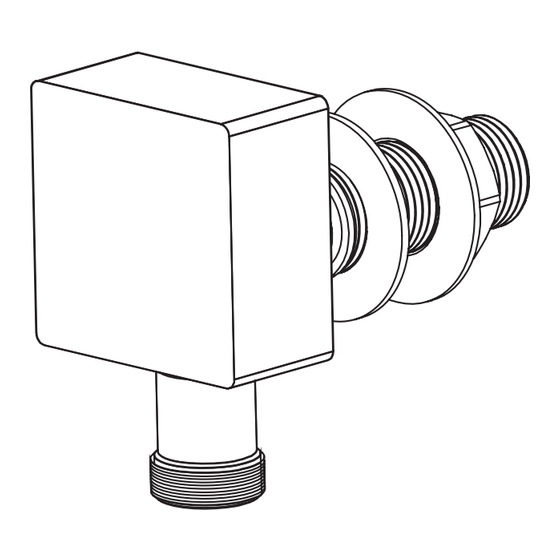

Outlet
x1
Single
Function
Handset
x1
Screw Pack
All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water Fittings) Regulations
(Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014. For full Installation Requirements & Notes
(IRN) please visit www.wrasapprovals.co.uk/approvals-directory
Full access must be made available for future maintenance/servicing purposes. This product must not be modified in any way as this will
invalidate the guarantee.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes.
This can be checked with the aid of an electronic detector. If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
Specifications
Pencil
7.5mm
Drill
Riser
x2
Brackets
x1
Riser
Rail
Adjust to the
x1
Slider
x1
Cone
to
Nut
x2
Hose
End Caps
Prior to Installation
Installation Instructions
Tools Required
Cross Head
Spirit Level
Screwdriver
Safety Goggles
Electronic Detector
Operation
Twist the
button
to release
the lock.
necessary
height and
return to
the straight
position
to lock.
Spares
To replace any
spare parts for
your shower, why
not scan the
QR Code or visit
www.bristan.com
and search for
your product.
& User Guide
Please leave these instructions
with the end user
Adjustable
Spanner
Dimensions (mm)
65
240
700
SQR KIT01 BLK (D2)
Inlet Connections
1/2" BSP
130
690
Advertisement
Table of Contents
Related Manuals for Bristan SQR KIT01 BLK D2
Summary of Contents for Bristan SQR KIT01 BLK D2
- Page 1 Prior to Installation All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions. This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014.
- Page 2 Installation Instructions and User Guide Adjustable Riser Kits Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 3: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed these products with your enjoyment in mind. To ensure that they work to their full potential, they need to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0330 026 6273. -
Page 4: Important Safety Information
Important Safety Information All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions. This product needs to be installed in accordance with, and meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and current by-laws. -
Page 5: Prior To Installation
Please refer to your specific shower kit contents page for specification information. These kits are designed to be used in conjunction with Bristan showers. We cannot guarantee compatability or adequate performance when used with other showers. - Page 6 Installation - Riser with Moulded Brackets If your brackets come with internal fixings, make sure that the internal fixings inside the bracket are in place when attaching to the riser rail. Assemble the riser ensuring the slider, hose retainer (if supplied) and soap dish (if supplied) is Secure using the fixings...
-
Page 7: Installation - Riser With Moulded Brackets
Installation - Riser with Moulded Brackets Place or slide the riser and top bracket into the bottom bracket. Secure the riser rail to the wall using the Connect fixings supplied. the hose and Place the handset to caps on your shower, to the ensuring riser rail. - Page 8 Installation - Brackets with Fixing Plates Check the orientation of the fixing plates. Install as they come out of the brackets. Remove the If your kit brackets are fixing plates by adjustable, loosen the unscrewing the fixings to slide the fixings or sliding bottom bracket to the from the fixing...
-
Page 9: Installation - Shrouded Brackets
Installation - Shrouded Brackets Slide the slider, bracket covers and caps on to the riser rail. Drill the marked holes. Insert wall plugs if necessary. Connect the hose and handset to your shower, ensuring the washers are in place (if supplied). If a hose retainer or soap dish... -
Page 10: Installation - Wall Outlets
1/2” female connection, using a suitable thread sealant and ensuring the rubber seal is fitted to the back of the wall outlet. General Cleaning Bristan products are made from premium materials, with hand polished, PVD, EPD or electroplated finishes. Your product should be regularly... -
Page 11: Troubleshooting
Troubleshooting Symptom Cause(s) Remedy Partially closed isolation valve. Open isolation valve. Refer to your specific product’s Head of water is below the minimum Contents Page for the minimum distance required. working pressure/distance required. Refer to the shower fitting instructions Inlet filter in the shower valve is blocked for Maintenance steps. -
Page 12: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 13 A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
