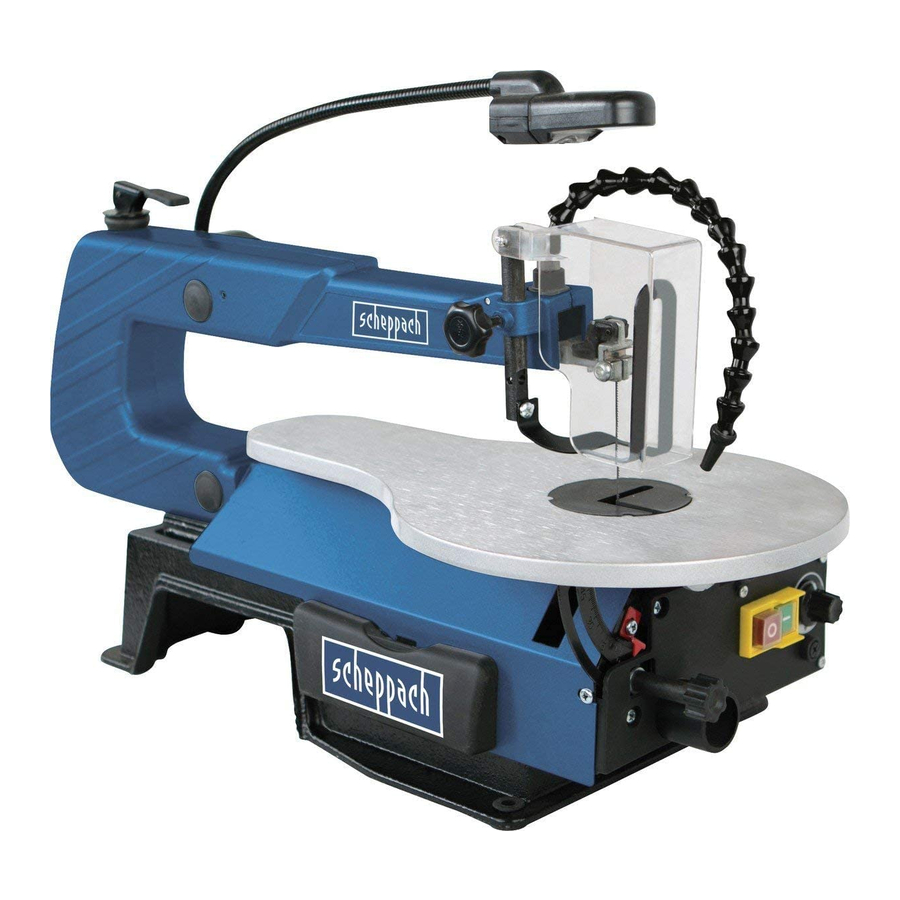

Scheppach SD1600V, 5901403903 Manual

Introduction

Manufacturer:
Scheppach GmbH
Günzburger Straße 69 D-89335 Ichenhausen

Dear Customer,
We hope your new tool brings you much enjoyment and success.
Note:
In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling
• Failure to comply with the operating manual,
• Repairs carried out by third parties, unauthorised specialists.
• Installing and replacing non-original spare parts,
• Improper use
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:
Read the whole text of the operating manual before assembly and commissioning.
This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.
The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.
In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country. Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.
The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.
In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

Device description

Fig. 1-16

1. Blow-off device
2. Mounting (blow-off device)
3. Knurled screw
4. Holder (saw blade guard)
5. Saw blade guard
6. Saw table
7. Fine-wire fuse
8. Cover, left
9. Storage box
10. Bearings
11. Tightening lever
12. Arm
13. Graduated scale
14. Knurled nut
15. Suction connection
16. On/off switch
17. Speed regulator
18. Assembly points (premounted rubber feet)
19. Work lamp
20. ON / OFF switch work lamp
21. Saw blade
22. Allen key 3 mm
23. Retaining device
24. Screw (depressor)
25. Table inlay
26. Saw blade holder, top
27. Upper saw blade clamping screw
28. Lower saw blade clamping screw
29. Saw blade holder, bottom
30. Angle bracket (not included in the scope of delivery)
31. Screw (graduated scale pointer)
32. Pointer
33. Screw (left cover - front)
34. Screw (left cover - rear)
35. Adjustment screw with locknut

Scope of delivery

• Scroll saw
• Saw blade guard (5) with retaining device (23)
• Blow-off device (1)
• Saw blade (21) for wood and plastics (2x) (1x premounted)
• Allen key, 3 mm (22)
• Original Operating Manual

Proper use

The scroll saw is used for cutting angular timbers or other materials such as Plexiglas, GRP, foam, rubber, leather and cork. Never use the saw to cut round material. Round material can tilt easily.

Danger of injury! Parts may be ejected!
The device may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.
Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

• Only suitable saw blades may be used for the machine.
• An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.
• Persons who operate and maintain the machine must be familiar with the manual and must be informed about potential dangers.
• In addition, the applicable accident prevention regulations must be strictly observed.
• Other general occupational health and safety-related rules and regulations must be observed.
• The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

Residual risks
Even when this electric tool is operated properly, residual risks still remain. The following hazards may arise in connection with the design and construction of this electric tool:

• Lung damage if suitable dust protection mask is not worn.
• Hearing damage if suitable hearing protection is not worn.
• Risk of accident due to contact with the hands in the uncovered cutting area of the tool.
• Danger of injury during a tool change (cutting hazard).
• Crushing of fingers.
• Danger due to kick-back.
• Tilting of the workpiece due to insufficient workpiece support surface.
• Touching the cutting tool.
• Ejection of branches and workpiece parts.

Safety instructions

General safety instructions for electrical devices

The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and fire.
Read all these notices before using the electric tool and store the safety instructions well for later reference.

1. Work area safety
   • Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
   • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   • Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
   • Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
   • Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
   • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
   • If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
   • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.
   • Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
   • Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
   • Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
   • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
   • Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
   • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
   • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
   • Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
   • Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
   • Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
   • Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
   • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
   • Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
   • Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
   • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

Special safety instructions

• In an emergency, switch the machine off directly and pull out the mains plug.
• Observe all of these notes before and while working with the saw.
• Never use the saw to cut firewood.
• The machine is equipped with a safety switch against reactivation if the voltage drops.
• If an extension cable is required, make sure that its cross-section is sufficient for the current consumption of the saw. Minimum cross-section 1.5 mm².
• Only use cable reels in the unrolled state.
• Personnel working on the machine must not be distracted.
• Under no circumstances should the saw blades be braked by pushing against the side after switching off the drive.
• Only install saw blades that are well sharpened, free of cracks and not deformed.
• Faulty saw blades must be replaced immediately.
• Do not use saw blades that do not correspond to the characteristics specified in these usage instructions.
• Ensure that all devices that cover the saw blade work properly.
• Safety equipment on the machine must not be disassembled or made unusable.
• Damaged or faulty protective devices must be replaced immediately.
• Do not cut workpieces that are too small in order to keep them secure in your hands.
• Do not load the machine so much that it comes to a standstill.
• Always press the workpiece firmly against the working plate.
• Never remove loose splinters, chips or jammed wood pieces from the running saw blade.
• Switch off the machine to rectify any faults on the blocked tool attachment. Pull out the mains plug. Remove the blockage. Attention! Danger of injury due to saw blade! Wear protective gloves! Perform a test run without a workpiece.
  Make sure that no unusual noises or vibrations occur. If this is the case, switch the device off and contact the manufacturer.
• Only carry out modifications, adjustments, measurements and cleaning work when the motor is switched off. Pull out the mains plug.
• Before switching on, make sure that keys and adjusting tools are removed.
• Switch off the motor and pull out the mains plug when leaving the work station.
• Electrical installation, repairs and maintenance work may only be carried out by specialists.
• All protective and safety equipment must be reassembled immediately after repair or when maintenance is completed.
• The safety, operating and maintenance information of the manufacturer, as well as the dimensions specified in the technical data, must be observed.
• The relevant accident prevention regulations and the other generally accepted safety rules must be observed.
• The saw is only intended for installation indoors.
• Workpieces that are smaller than the saw blade guard can cause injuries to the hands and fingers.
  Use a suitable aid!
• Avoid cramped hand positions when guiding the workpiece and positions in which the hand would slip directly into the saw blade.
• Always insert the saw blade so that the teeth point down towards the saw table.
• Always set the correct blade tension in order to avoid breaking the saw blades.
• Use extra care when cutting material with irregular cutting profiles.
• When withdrawing the workpiece, teeth can get caught in the kerf, especially if the shavings block the kerf. In this case you should switch off the saw, pull out the mains plug, open the kerf with a wedge and remove the workpiece.
• Never leave the work station without setting down the saw beforehand. Wait until the saw has come to a standstill.
• Do not place, glue, or assemble any parts on the work table while the saw is running.
• Do not switch on the saw until the work table is cleared of material residues and tools. Only leave the workpiece to be machined and any work aids (wedges) on the workbench.
• Always wear safety goggles.
• Keep fingers at a safe distance from the saw blade.
• Guide the workpiece securely and firmly and do not let it loose at any point.
• Never leave the work station without setting down the saw beforehand.
• Do not let your familiarity with the saw lead you to carelessness. Carelessness can lead to serious injuries in a split second.

Store the safety instructions safely.

Technical data

Mains voltage	220-240 V~/50 Hz
Power consumption	80 Watt (S1*) 120 Watt (S6 30%**)
Stroke rate	500-1700 rpm
Lifting movement	12 mm
Base	630 x 295 mm
Tilting table	0° to 45° to the left
Table size	415 x 255 mm
Saw blade length approx.	134 mm
Swing	406 mm
Cutting height max. at 0°	50 mm
Cutting height max. at 45°	22 mm
Weight	12.7 kg

Subject to technical modifications!
*Operating mode S1: Continuous operation at constant load
**Operating mode S6 30%:
Continuous duty with intermittent loading (operating time 10 mins). In order avoid impermissible overheating of the motor, the motor should be driven for only 30% of the operating time with the stipulated nominal power and must then continue to run with no load for the remaining 70% of the operating time.

Device emissions values
Noise
The noise levels have been determined in accordance with EN 61029.
Wear hearing protection.
Excessive noise can result in a loss of hearing.

Sound pressure level LpA	66,9 dB
Uncertainty KpA	3 dB
Sound power level LWA	79,9 dB
Uncertainty KWA	3 dB

Vibration emission value

• The specified vibration emission value has been measured according to a standardised testing procedure and can be used for comparison of one electric tool with another;
• The specified vibration emission value can also be used for an initial assessment of the (vibration) load.
• The vibration emission value can vary from the specified value during the actual use of the electric tool, depending on the type and the manner in which the electric tool is used;

• It is necessary to determine the safety measures for the protection of the operator based on an assessment of the vibration load during the actual conditions of use (In doing so, all parts of the operating cycle must be taken into account such as times in which the electric tool is switched off or times in which it is switched on, but is not running under a load).

The stipulated values are emission values and so do not necessarily represent safe work station values. Although there is a correlation between emission levels and exposure levels, it is not possible to reliably determine whether additional precautionary measures will be required or not based on this.
Factors that could influence the emissions level present at any given time at the work station include the duration of exposure, the nature of the working area, other noise sources etc. e.g. the number of machines and neighbouring processes.
The permitted workstation values can also vary from country to country. However, this information should enable the operator to better evaluate the hazards and risks.

Limit the noise level to a minimum!

• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.

Suitable saw blades
All industry-standard saw blades with a minimum length of 127 mm with and without a pin may be used.

Before commissioning

Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

General notes

• Prior to commissioning, all covers and safety devices must be mounted correctly.
• The saw blade must be able to run freely.
• In case of previously machined wood, be aware of any foreign bodies, such as nails or screws, etc.
• Before pressing the on/off switch, make sure that the saw blade is correctly fitted, and that moving parts run smoothly.
• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.
• Only connect the machine to a correctly installed protective contact socket, with fuse protection of at least 10 A.

Install the scroll saw on the workbench

You require the following for assembly:

• M8 hexagonal bolt (4x)
• M8 hexagonal nut (4x)
• Washer Ø 8.4 mm (8x)
  (not included in the scope of delivery)

The length of the screws to be used vary depending on the thickness of the tabletop.

Danger of injury! Disconnect the mains plug on the scroll saw before all assembly work.

1. Mount the scroll saw on a solid wooden workbench. This way, a high noise level due to vibrations can be avoided.
2. Mark the drill holes (see fig. 5.2).

3. Drill the 4 holes (diameter 8 mm) into the workbench.
4. Screw the scroll saw onto the workbench with the hexagonal bolt (E) through the assembly points (fig. 3 pos. 19) in the following sequence (fig. 5.1):

   1. Scroll saw
   2. Workbench
   3. Washer
   4. Hexagonal nut
   5. Hexagonal bolt
5. Tighten the hexagonal nuts (D).

Layout

Danger of injury! Disconnect the mains plug on the scroll saw before all assembly work.

Installing the saw blade guard (5) and the retaining device (23)

NOTE:
Before assembling the retaining device (23), the saw blade pre-installed at the factory (21) must be removed.

1. Remove the saw blade (21).
2. Remove the retaining device (23) from the saw blade guard (5): Loosen the screw (24) completely using a Phillips screwdriver (not included in the scope of delivery) (see fig. 6).

3. Insert the holder (4) into the opening (see fig. 7).

4. Fasten the holder (4) with the knurled screw (3).
5. Mount the retaining device (23) to the saw blade guard (5). Insert the screw (24) into the holder (4). Tighten the screw (24) using a Phillips screwdriver (not included in the scope of delivery).
6. Insert the saw blade (21) again.
7. Ensure that the retaining device (23) does not touch the saw blade (21).

Adjusting the retaining device NOTE:
The retaining device (23) must always be adjusted according to the workpiece height. However, the workpiece should not be clamped, but should rather be able to move freely. The retaining device (23) is used to lock the workpiece so that it cannot swing upwards, which would destroy the saw blade (21).

1. Loosen the knurled screw (3) to adjust the retaining device (23).
2. Adjust the retaining device (23) according to the height of the workpiece.
3. Re-tighten the knurled screw (3).

Mounting / changing the saw blade

(fig. 1, 7-11)

To avoid injuries due to unintentional start up: Before removing or replacing the saw blade, always press "0" and remove the mains plug from the socket.

Removing/inserting the table inlay

1. Loosen the knurled screw (3).
2. Set the saw blade guard (5) all the way up to the top position.
3. Reach under the saw table (6) and press the table inlay (25) upwards.
4. It is now possible to remove the table inlay (25).
   Pay attention to the position of the sawing gap when inserting the table inlay (25). The table inlay (25) must be inserted as shown in Fig. 8. Otherwise the machine can be damaged during mitre cuts.


Removing the saw blade without pins (optional)

1. To remove the saw blade (21), remove the table inlay (25) upwards.
2. First, release the tension by flipping the tension lever (11) upwards. If necessary, the tension can be further reduced by turning the tightening lever (11) counterclockwise.
3. Press the support (12) down lightly (see fig. 9).

4. Then loosen the upper saw blade clamping screw (27).
5. Now hold the sawblade firmly, otherwise it will fall into the interior of the machine.
6. Loosen the lower saw blade clamping screw (28) with the Allen key (22).
7. Remove the saw blade upwards.

Inserting the saw blade without pins (optional)
The teeth of the saw blade must always point downwards.

1. Fix the saw blade (21) in place in the bottom saw blade holder (29). To fix the saw blade (21) in place, tighten the lower saw blade clamping screw (28) with the Allen key (22).
2. Press the support (12) down lightly. Fasten the other end of the saw blade (21) in the top saw blade holder (26) (see fig. 9).
3. Fasten the saw blade (21) using the upper saw blade clamping screw (27) (see fig. 10).

4. Tension the saw blade (21) with the tightening lever (11) by pressing down on it again. Check the tensioning of the saw blade (21). If the tension is too low, you can increase it by turning it clockwise. Before doing this, release the tightening lever (11) again.
5. Re-insert the table inlay (25).

Removing the saw blade with pins

1. To remove the saw blade (21), remove the table inlay (25) upwards.
2. First, release the tension by flipping the tension lever (11) upwards. Continue reducing the tension by turning counterclockwise as required.
3. Hold the sawblade firmly and press the arm (12) down slightly (see Fig. 9).
4. Remove the saw blade from the top and bottom saw blade holder (26/29).

Inserting the saw blade with pins
The teeth of the saw blade must always point downwards.

1. Insert one end of the saw blade (21) through the drilled hole in the table. Insert the pins of the saw blade (21) into the corresponding recesses of the top and bottom saw blade holder (26/29).
2. First, insert the saw blade (21) into the bottom saw blade holder (29).
3. Press the support (12) down lightly (see fig. 9). Insert the saw blade (21) into the top saw blade holder (26).
4. Check the position of the saw blade pins in the saw blade holders (26/29).
5. Tension the saw blade (21) with the tightening lever (11) by pressing down on it again. Check the tensioning of the saw blade (21). If the tension is too low, you can increase it by turning it clockwise. Before doing this, release the tightening lever (11) again.
6. Re-insert the table inlay (25).

NOTE
The left side features a storage box (9), which enables you to stow replacement saw blades and the hexagon wrench.

Checking the saw blade tension

Check the blade tension regularly and after inserting a saw blade.
Tension the saw blade after assembly by pressing down on the tension lever (11).
If the blade tension is too low or too high, proceed as follows:

• Fold the tension lever (11) upwards.
• Turn the tension lever (11) clockwise to increase the tension and counterclockwise to reduce it.
• Press the tightening lever (11) down again to engage the setting.
  If the tension is correct, the saw blade should produce a light tone when it is "plucked", like a guitar string.

Fine adjustment of the angle scale

(fig. 12; 12.1)

ATTENTION
Check the setting of the angle scale before working with the device.

1. Loosen the adjustment screw locknut (35) using a spanner, size 8 (not included in the scope of delivery).
2. To set the saw table, use a 90° angle bracket (30) (not included in the scope of delivery). Place this against the saw table and the saw blade (fig. 12).

3. Loosen the knurled nut (14). Adjust the adjustment screw (35) until the angle between the saw blade (21) and the saw table (6) is 90°.
4. Retighten the knurled nut (14) and the adjustment screw locknut (35).

5. Loosen the screw (31) and turn the pointer (32) to the 0° marking.
6. Make a test cut. Check the angle on the workpiece with a protractor. If necessary, readjust the pointer (32).

Installing the blow-off device

(fig. 8)

1. Ensure that the saw blade guard (5) folded down.
2. Screw the blow-off device (1) clockwise onto the holder (2) as described in fig. 8.

Chip extraction

(fig. 13)
ATTENTION:
Only operate the product with a suitable chip extraction system. Do not use household vacuum cleaners.
Connect a suitable chip extraction system (not included in the scope of delivery) to the suction connection (15) (see fig. 13, sample figure).
ATTENTION:
Check and clean the suction channels at regular intervals.

Operation

Attention!
Always make sure the device is fully assembled before commissioning!

General notes

• The saw does not cut wood by itself. The user makes cutting possible by guiding the wood into the moving saw blade.
• The teeth only cut the wood on the down stroke.
• The wood must be fed slowly into the saw blade as the teeth of the saw blade are very small.
• Anyone who wants to use the saw requires a certain amount of learning time. During this time some blades are sure to break.
• When cutting thick timbers, particular care must be taken to ensure that the saw blade is not bent or twisted.
• Working carefully will increase the service life of the saw blade.

Fine-wire fuse (7)

The fine-wire fuse (7) is inserted at the factory and does not need to be installed. If the fine-wire fuse (7) is defective.

On/off switch (16)

• Switching on: Press the "I" button.
• Switching off: Press the "0" button.

ATTENTION
The machine is equipped with a safety switch against reactivation if the voltage drops.
If the scroll saw is switched on and the power supply in the mains is interrupted, the scroll saw remains switched off, even if the power supply is re-established.
Press the "I" button to switch it on.

Work lamp operation

(fig. 4)
Press the on/off switch (20) to switch the work lamp (19) on and off.

Speed regulator

(fig. 2)
The speed regulator (17) allows you to set the stroke rate according to the material to be cut. In case of soft material, we recommend high stroke rates, while strokes rates should be kept low for hard material. Turn the speed regulator (17) clockwise to increase the stroke rate. Turning counterclockwise lowers the stroke rate.

Making inside cuts

This scroll saw allows inside cuts in workpieces without damaging the outside or the circumference of the workpiece.

1. Remove the saw blade (21).
2. Drill a hole into the workpiece.
3. Place the workpiece with the drilled hole over the opening of the table inlay (25) on the saw table (6).
4. Install the saw blade (21) through the drilled hole in the workpiece and set the blade tension.
5. After completing the inside cut, remove the saw blade (21) from the blade holders.
6. Remove the workpiece from the table.

Carrying out mitre cuts

(fig. 14)

Be particularly careful when making mitre cuts. The incline of the saw table supports slipping. There is a danger of injury.

1. To carry out mitre cuts, adjust the distance between the saw blade guard (5) mounted to the retaining device (23) and the work table accordingly.
2. Swivel the table by loosening the knurled nut (14) and tilting the saw table (6) into the desired position.
3. Tighten the knurled nut (14).

Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.
The customer's mains connection as well as the extension cable used must also comply with these regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often damaged.
This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors
• Kinks where the connection cable has been improperly fastened or routed
• Places where the connection cables have been cut due to being driven over
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.
  Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.
  Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking H 05 VV-F.
  The printing of the type designation on the connection cable is mandatory.

AC motor
The mains voltage must be 220-240 V~. Extension cables up to 25 m long must have a cross-section of 1.5 mm².
Connections and repair work on the electrical equipment may only be carried out by electricians.
Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate

Connection type Y
If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

Transport

• Transport the electric tool by lifting it on the recesses provided for this on the frame and the motor cover.
• Never use the protective devices for handling or transport.
• Make sure that the exposed part of the saw blade is covered during transport, e.g. by the protective device.

Cleaning, maintenance and ordering spare parts

Always switch the machine off and remove the mains plug prior to all maintenance and cleaning work.

Cleaning
Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. We recommend cleaning the device directly after every use.

Exterior cleaning

1. Clean the device at regular intervals using a damp cloth and a little soft soap.
2. Do not use cleaning agents or solvents. These could damage the plastic parts of the device.
3. Make sure that no water can penetrate the device interior.

Interior cleaning (fig. 15)

1. Open the storage box (9).
2. Remove the screw (34).
3. Loosen the screw (33).
4. Remove the cover (8).
5. Blow out the device interior with low-pressure compressed air.
6. Attach the cover again (8).
7. Fasten the screw (33).
8. Insert the screw (34) again and tighten it.
9. Close the storage box (9).

Maintenance
Bearings (fig. 1/item 10)
Lubricate the bearing points (10) of the deflection rollers after approx. 25-30 operating hours at the latest using high-quality machine grease.

Carbon brushes
If excessive sparks are generated, have an electrician check the carbon brushes.
ATTENTION
The carbon brushes must only be replaced by an electrician.

Mains cable
If the mains cable is pulled out, cut, or damaged in some other form, then it should be replaced immediately.

Replacing the fine-wire fuse (Fig. 16)
If the fine-wire fuse (7) is defective, it must be replaced with a fine-wire fuse of the same type 5 A/250 V (ø 5 x 20 mm).

Do not bypass the fine-wire fuse (7)! Do not use fuses of any other type! This can lead to damage to the device.

Service information
With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.
Wearing parts*: Carbon brushes, saw blade, table inlay * may not be included in the scope of supply!

Ordering spare parts
Please provide the following information when ordering spare parts (via the service hotline):

• Device type
• Device article number (can be found on the packaging or in the instructions)

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 ˚C.
Store the electric tool in its original packaging.

Troubleshooting

Always switch the machine off and remove the mains plug prior to all maintenance and cleaning work.

Fault	Possible cause	Remedy
Saw blade without pins loosens after switching off the engine	Saw blade clamping screw (27/28) not tightened enough	Tighten the saw blade clamping screw (27/28)
Motor does not start	Mains fuse blown	Check mains fuse
	Extension cable defective	Replace the extension lead
	Fine-wire fuse defective	Check the fine-wire fuse and, if necessary, replace it with a fine-wire fuse of the same type.
	Connection to the motor or switch not OK	Have this checked by an electrician
	Motor or switch faulty	Have this checked by an electrician
Saw blades brake	Tension set incorrectly	Set correct tension
	Load too high	Feed workpiece more slowly
	Incorrect saw blade type	Use correct saw blades
	Workpiece not fed straightly	Avoid lateral pressure
Saw blade oscillates, not aligned straightly	Holders not aligned	Open the screws that fasten the holders. Bring the holders into the vertical position and tighten the screws again.

	Read the operating manual to reduce the risk of injury!
	Wear protective goggles. Sparks created during work or fragments, chippings and dust ejected by the device can case sight loss.
	Wear hearing protection. Excessive noise can result in a loss of hearing.
	Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!
	Attention! Danger of injury! Do not reach into saw blade while it is running!
Attention!	We have marked points in these operating instructions that impact your safety with this symbol.
