OPERATING MANUAL
OPERATING MANUAL
PID TEMPERATURE CONTROLLER
UNIVERSAL TIMER
DTT-4000
UTC-121P,221P & 421P
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Range
Power Supply
Reset
Protection Level
Working
Power on the instrument & Timing is start.
Connection Diagram
DTT-4000
DTT-4000
UPPER:- 5 Digit 7 seg 0.4",red LED Display
LOWER:- 4 Digit 7 seg 0.4",green LED Display
48 x 48 x 95 mm
44 x 44 mm
230V AC Enable
UPPER:- 5 Digit 0 to 99999 Hrs
LOWER:- 4 Digit 0 to 59.59 min/sec
100 to 250V AC, 50 / 60 Hz, Approx 2VA
Front Side
IP-65(Front side) AS per IS/IEC 60529:2001
L
~
100
1
!
250V AC
50/60 Hz
2VA
N
2
Made in India
3
Range:
0-99999.59.59
HRS./MIN./SEC.
4
L
I/P 230V AC
ENABLE
www.multispanindia.com
N
5
Page - 1
www.multispanindia.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MULTISPAN DTT-4000
Summary of Contents for MULTISPAN DTT-4000

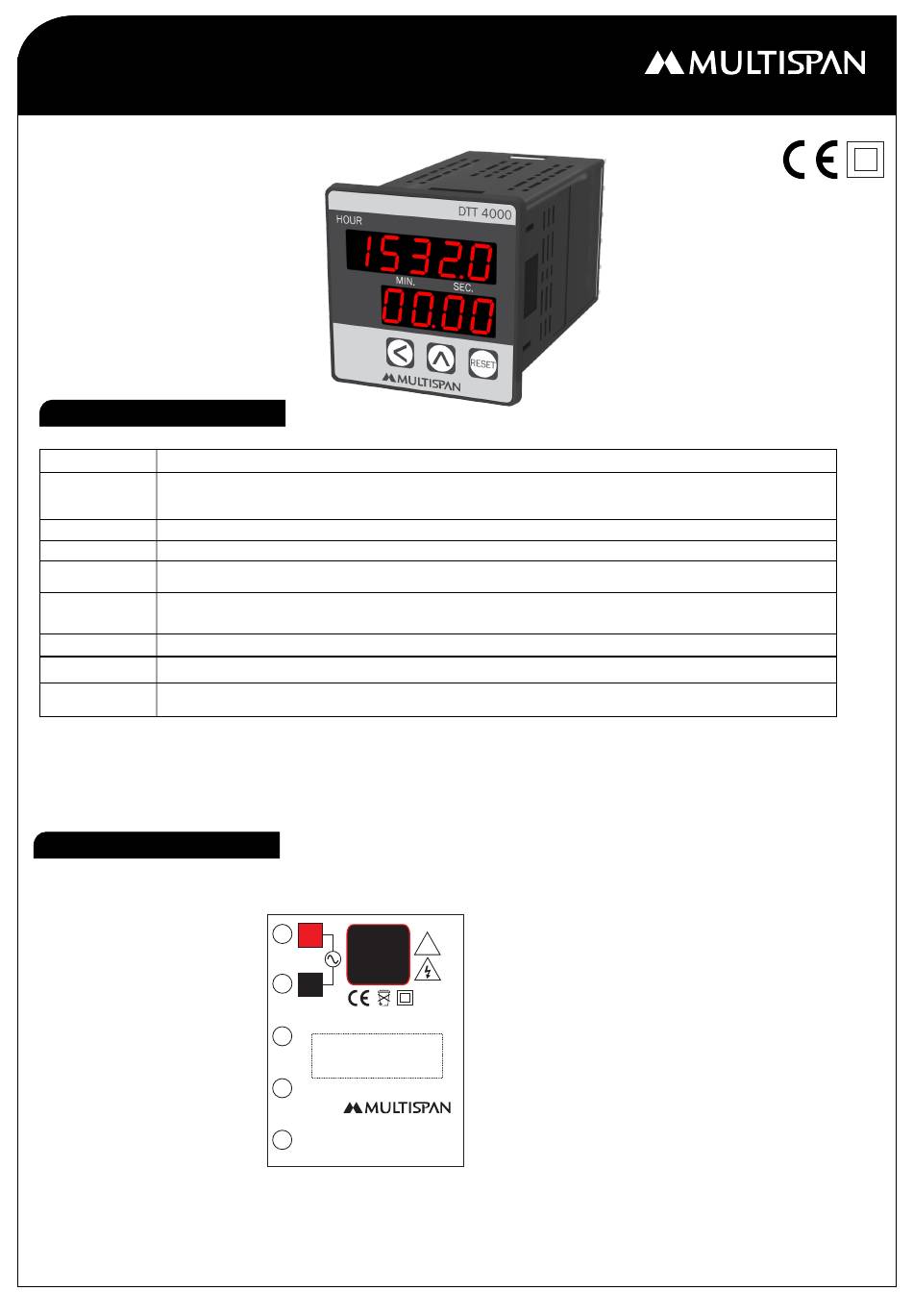

- Page 1 OPERATING MANUAL OPERATING MANUAL PID TEMPERATURE CONTROLLER UNIVERSAL TIMER DTT-4000 UTC-121P,221P & 421P Technical Specification Model DTT-4000 UPPER:- 5 Digit 7 seg 0.4”,red LED Display Display LOWER:- 4 Digit 7 seg 0.4”,green LED Display Size(HXWXD) 48 x 48 x 95 mm...
- Page 2 Reset Mode To reset the time Press RESET p a s s Press & to change password “25” Press key to Reset Time RESET DTT-4000 Page - 2 www.multispanindia.com...
- Page 3 1) The equipment should be cleaned regularly to avoid blockage of ventilating parts. 2) Clean the equipment with a clean soft cloth. Do not use isopropyl alcohol or any other cleaning agent. 3) Fusible resistor must not be replaced by operator. www.multispanindia.com DTT-4000 Page - 3...
- Page 4 Note: Product improvement and upgrade is a constant procedure. So for more updated operating information and support, Please contact our helpline : +91-9081078681/83 or Email at service@multispanindia.com Ver: 1908 Page - 4 www.multispanindia.com DTT-4000...
