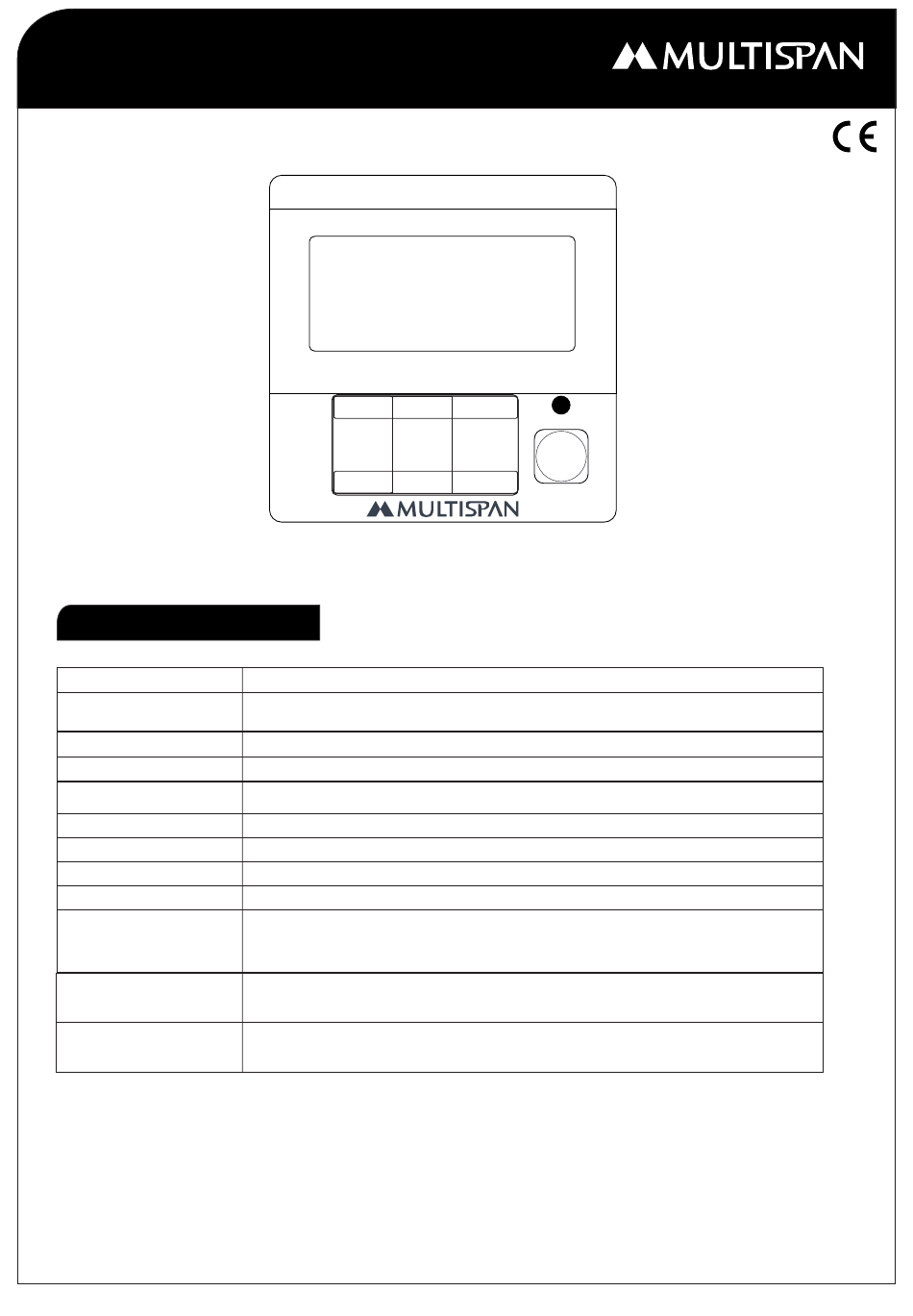

OPERATING MANUAL
DIGITAL TIMER
MDT-4310N
Technical Specification
Model
Display
Size (mm)
Panel Cutout
Range
Power Supply
Input
Reset
Output
Protection
Level
(As per request)
Operating
Temperature
Relative
Humidity
MDT-4310N
1 2 3
Time
- - -
9 9 9
+
+
3 Digit 7 seg 0.56",LED Display
48 (H) X 48 (W) X 70 (D) mm
Multi Range
100 to 270V AC,50/60 Hz, Approx 3VA
Front & back key
1 Relay 1C/O,5A,230V AC
IP-65 (Front side) As per IS/IEC 60529 : 2001
0°C To 55°C
Up to 95% RH Non Condition
Page-1

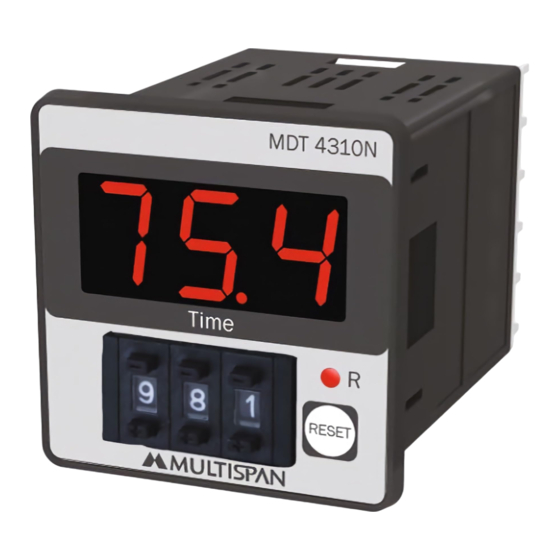

MDT 4310N
R
RESET
+
MDT-4310N
44 X 44 mm
Start Pulse M/S
www.multispanindia.com
