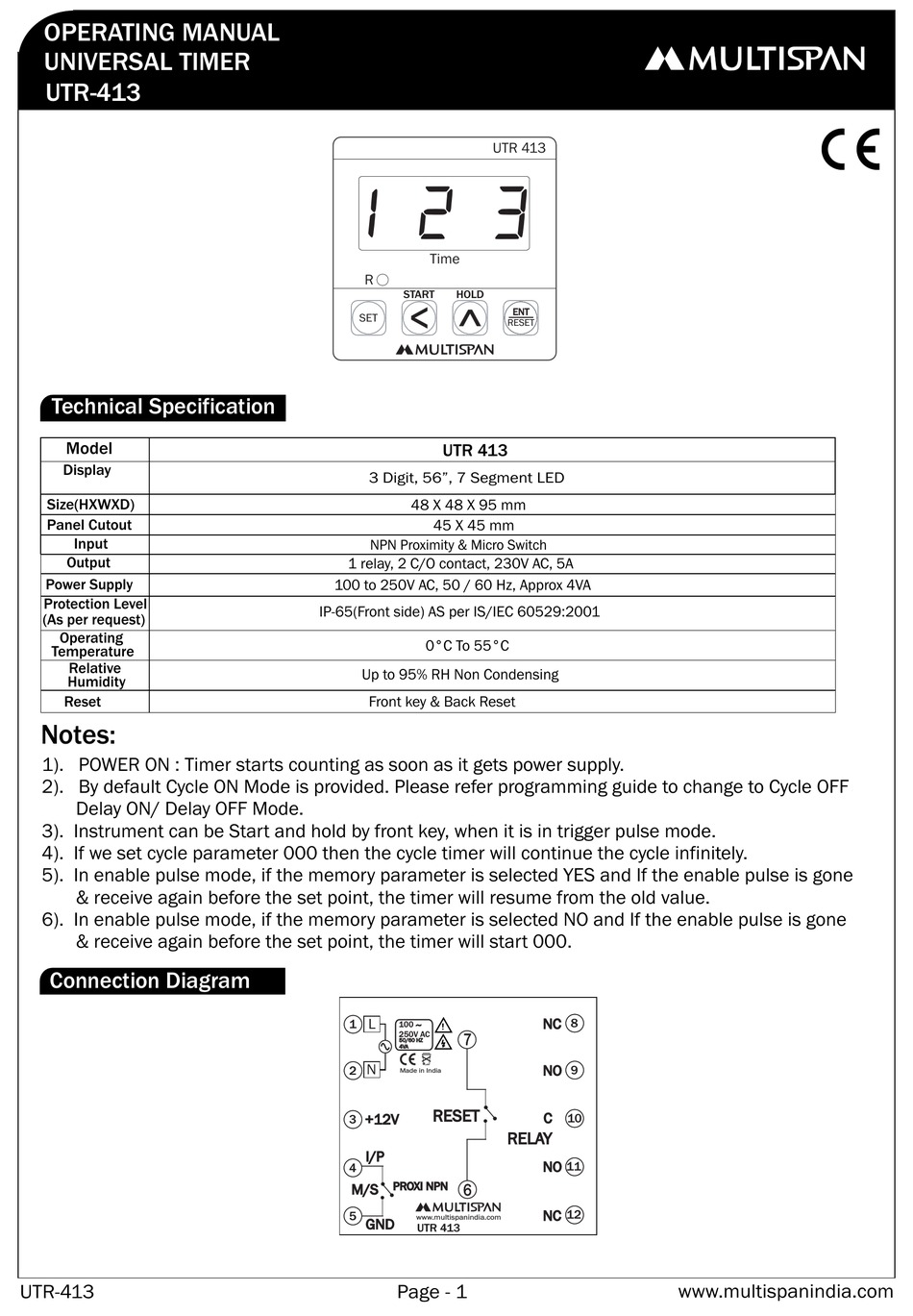

MULTISPAN UTR-413 Operating Manual

OPERATING MANUAL
UNIVERSAL TIMER
UTR-413
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Output
Power Supply
Protection Level
(As per request)
Operating
Temperature
Relative
Humidity
Reset
Notes:
1). POWER ON : Timer starts counting as soon as it gets power supply.
2). By default Cycle ON Mode is provided. Please refer programming guide to change to Cycle OFF
Delay ON/ Delay OFF Mode.
3). Instrument can be Start and hold by front key, when it is in trigger pulse mode.
4). If we set cycle parameter 000 then the cycle timer will continue the cycle infinitely.
5). In enable pulse mode, if the memory parameter is selected YES and If the enable pulse is gone
& receive again before the set point, the timer will resume from the old value.
6). In enable pulse mode, if the memory parameter is selected NO and If the enable pulse is gone
& receive again before the set point, the timer will start 000.
Connection Diagram
UTR-413
1 2 3
Time
R
START HOLD
SET
UTR 413
3 Digit, 56", 7 Segment LED
48 X 48 X 95 mm
45 X 45 mm
NPN Proximity & Micro Switch
1 relay, 2 C/O contact, 230V AC, 5A
100 to 250V AC, 50 / 60 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
Up to 95% RH Non Condensing
Front key & Back Reset
L
1
100
~
!
250V AC
7
50/60 HZ
4VA
N
2
Made in India
RESET
+12V
3
I/P
4
PROXI NPN
M/S 6
5
www.multispanindia.com
GND
UTR 413
Page - 1
UTR 413
ENT
RESET
NC 8
NO 9
C
10
RELAY
NO
11
NC 12
