OPERATING MANUAL
MULTIRANGE TIMER

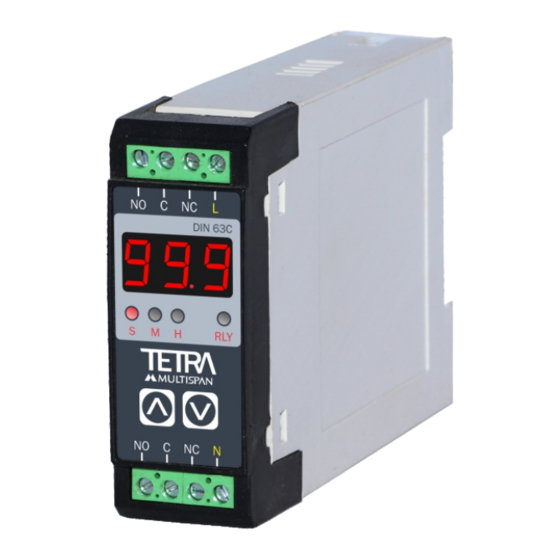

DIN-63C

LED

All Led are in Red color.
S
M
H
RLY

Connection Diagram

DIN-63C
Size (mm)
Display
Power Supply
Operating
Temperature
: Shows that the set time is in seconds.
: Shows that the set time is in minutes.
: Shows that the set time is in hours.
: Shows the relay status.

Technical Specification

Model
3 Digit Seven Segment LED Display
Dirction
0 to 999 Second/Minute/Hours and
Range
Decimal Point Selectable
Output
1 Relay with 2C/O (5 Amps/230V AC)o/p
Relative
Up to 95% RH Non Condensing
Humidity
Page-2
DIN-63C
76 (H) x 27 (W) x 116 (D) mm
Up & Down Selectable
100 to 270V AC, 50/60Hz
C
C
0° To 55°
