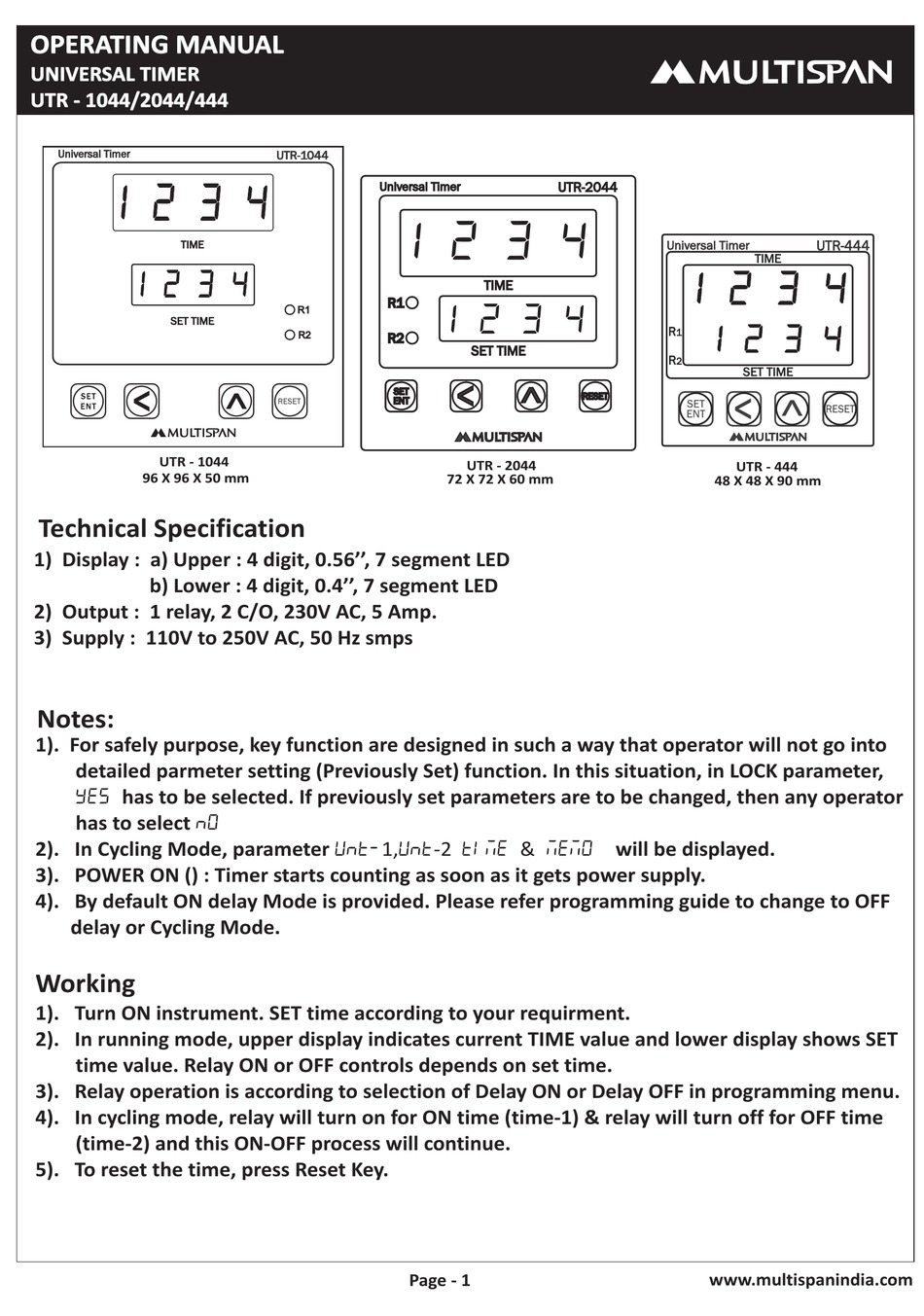

MULTISPAN UTR - 1044 Operating Manual

OPERATING MANUAL OPERATING MANUAL
UNIVERSAL TIMER UNIVERSAL TIMER
UTR - 1044/2044/444 UTR - 1044/2044/444

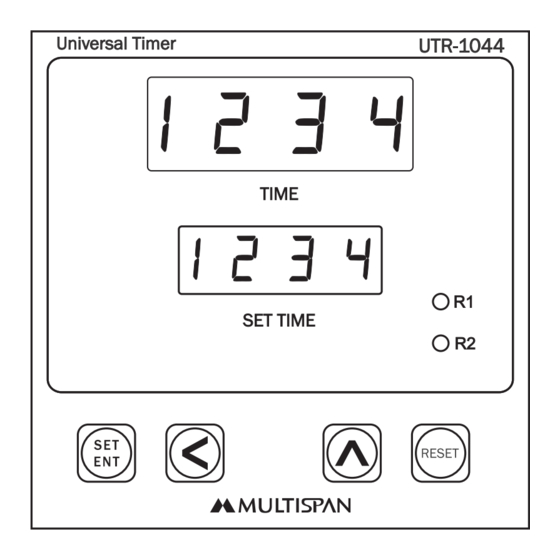

Universal Timer
1 2 3 4
TIME
1 2 3 4
SET TIME
UTR - 1044
96 X 96 X 50 mm
Technical Specification
1) Display : a) Upper : 4 digit, 0.56'', 7 segment LED
b) Lower : 4 digit, 0.4'', 7 segment LED
2) Output : 1 relay, 2 C/O, 230V AC, 5 Amp.
3) Supply : 110V to 250V AC, 50 Hz smps
Notes:
1). For safely purpose, key function are designed in such a way that operator will not go into
detailed parmeter setting (Previously Set) function. In this situation, in LOCK parameter,
YES
has to be selected. If previously set parameters are to be changed, then any operator
NO
has to select
2). In Cycling Mode, parameter
3). POWER ON () : Timer starts counting as soon as it gets power supply.
4). By default ON delay Mode is provided. Please refer programming guide to change to OFF
delay or Cycling Mode.
Working
1). Turn ON instrument. SET time according to your requirment.
2). In running mode, upper display indicates current TIME value and lower display shows SET
time value. Relay ON or OFF controls depends on set time.
3). Relay operation is according to selection of Delay ON or Delay OFF in programming menu.
4). In cycling mode, relay will turn on for ON time (time-1) & relay will turn off for OFF time
(time-2) and this ON-OFF process will continue.
5). To reset the time, press Reset Key.
UTR-1044
1 2 3 4
1 2 3 4
R1
R2
72 X 72 X 60 mm
UNT- UNT 1, -2
Page - 1
UTR - 2044
TIME & MEMO
will be displayed.
1 2 3 4
1 2 3 4
UTR - 444
48 X 48 X 90 mm
www.multispanindia.com
