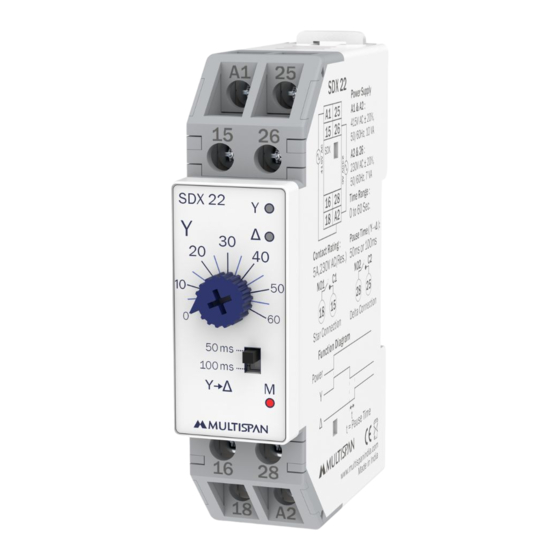

Star Delta Timer
SDX 22-02
Power Supply :
Output:
Time Range :
Pause Time :
230 V AC ±20%,50 Hz
:
415 V AC ±20% ,50 Hz
2 Relay O/P (1 C/O, 5A 230 VAC
1st Relay for star connection & 2nd Relay for delta
connection
0 to 60 sec
100 ms or 200 ms selection by front key
2 LED INDICATION
for visualisation of star or
delta connection output
KNOB
for time range selection
SLIDE SWITCH
for pause time selection
between star to delta
MAIN LED
for visualisation of power
supply status
)
Resistive Load
Advertisement
Table of Contents
Related Manuals for MULTISPAN SDX 22-02
Summary of Contents for MULTISPAN SDX 22-02
- Page 1 Star Delta Timer SDX 22-02 2 LED INDICATION for visualisation of star or delta connection output KNOB for time range selection SLIDE SWITCH for pause time selection between star to delta MAIN LED for visualisation of power supply status Power Supply : 230 V AC ±20%,50 Hz...
- Page 2 Terminal Connection: SDX 22-02 A2 & 26 : Power Supply A1 & A2 : 230V AC ± 20%, A1 25 50/60Hz, 7 VA 415V AC ± 20%, 50/60Hz, 10 VA Time Range : 15 26 0 to 60 Sec. Contact Rating : 5A,230V AC(Res.)
- Page 3 Dimension 22.5 NOTE: All dimension are in mm. 66.35 SAFETY PRECAUTION All safety related codifications, symbols and instructions that appear in this operating manual or on the equipment must be strictly followed to ensure the safety of the operating personnel as well as the instrument. If all the equipment is not handled in a manner specified by the manufacturer, it might impair the protection provided by the equipment.
- Page 4 5) Do not connect anything to unused terminals. Multispan reserves the right to change specifications without prior notice.Printing and typographical errors reserved. Product improvement and upgrade is a constant procedure.
