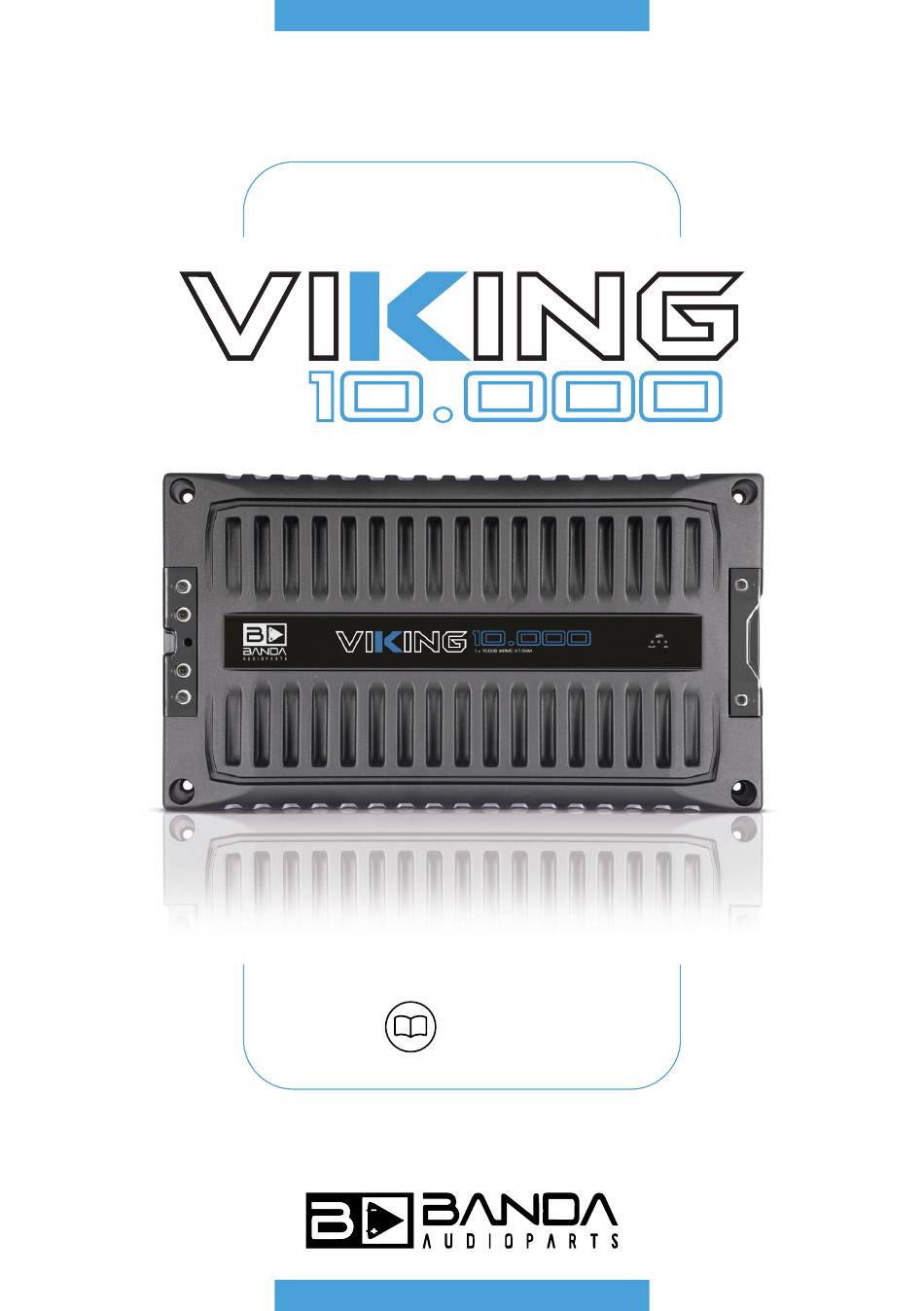

- Page 1 INSTRUCTION MANUAL Read before using...
- Page 2 TABLE OF CONTENTS Introduction Description Technical Specifications Protection System and Troubleshooting /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
- Page 3 INTRODUCTION Congratulations! You have just purchased a product with Banda Audioparts quality. Developed by qualified engineers and in a high-tech laboratory. To ensure optimal operation, please read this manual carefully before using the product. Keep the manual in a safe and accessible place for future reference.
- Page 4 DESCRIPTION 1. POWER SUPPLY UNIT Connect to vehicle chassis (Ground) 12VDC INPUT (+) Connect antenna (Remote) POSITIVE INPUT 12VDC NOTE: USE EXTERNAL FUSE 2. FRONT PANEL (LEDS) Blue (ON): Power On. Red (SHORT): Output distortion (clipping), clip short and thermal protection.
- Page 5 In this case, turn down the head unit volume. 3. SIDE WIRING EXAMPLE VIKING 10.000 - 1 ohm 4 Woofers or Subwoofers 4 ohms 2500Wrms each connected in parallel, resulting 10000Wrms @ 1 ohm...
- Page 6 DESCRIPTION WIRING EXAMPLE VIKING 10.000 - 1 ohm VIKING 10.000 - 1 ohm 2 Woofers or Subwoofers 8 Woofers or Subwoofers 2 ohms 5000Wrms each connected in parallel, 8 ohms 1250Wrms each connected in parallel, resulting 10000Wrms @ 1 ohm...
- Page 7 TECHNICAL SPECIFICATIONS MODEL VIKING 10.000 - 1 ohm 12,6V 1ohm - 10000Wrms 12,6V 2ohms - 6000Wrms Operation topology Full range class D 12dB/octave variable active Linkwitz-Riley crossover 18Hz – 8kHz Input impedance 47k ohms Frequency response 18Hz – 8kHz (-3dB) Variable subsonic filter 18Hz –...
- Page 8 PROTECTION SYSTEM AND TROUBLESHOOTING SHORT CIRCUIT PROTECTION If short circuit is detected in output terminals, the amplifier shuts down and the red LED lights up. The equipment must be turned off, solve the short circuit problem and turn the equipment on again. If the problem is solved, the blue LED must light up.
- Page 9 TROUBLESHOOTING OUTPUT NOISE Check if there is loose connection in signal input or in the RCA cable Check if there is ground connection in the radio/cd RCA output Check if RCA cables are wired separated from the power cables Check if the +12Vds that powers the amplifier is coming directly from the battery Check if ground cable is connected in car chassis as near as possible of the amplifier Both radio/cd and amplifier must be firmly connected to car chassis ground to avoid noises and voltage fluctuations at amplifier output...
-
Page 10: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Banda Audioparts dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. - Page 12 /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
