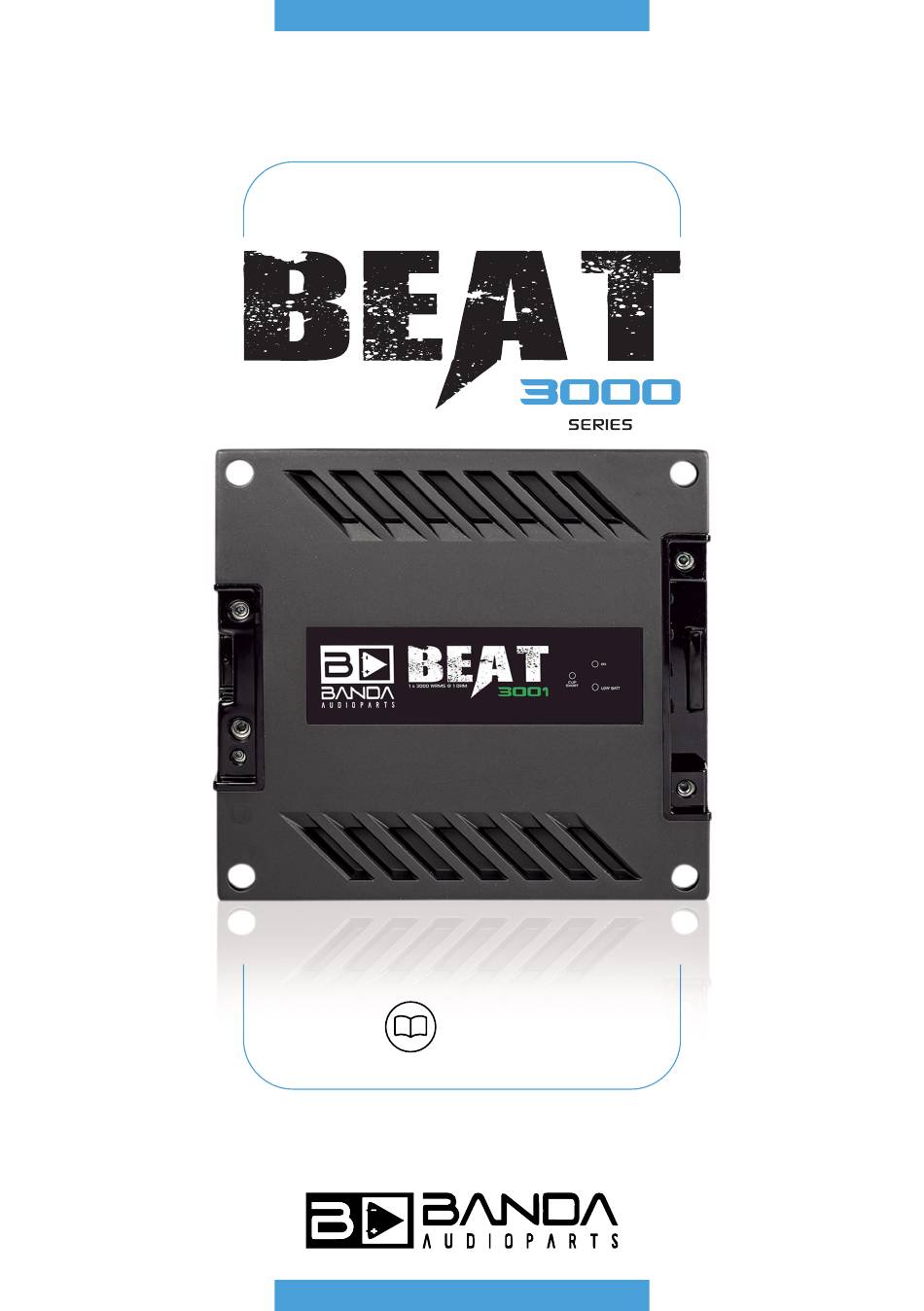

- Page 1 INSTRUCTION MANUAL Read before using...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Front Panel and Crossover Switch Connection Examples Solutions to possible problems Technical Specifications /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com... -
Page 3: Introduction
INTRODUCTION Congratulations! You have just purchased a product with Banda Audioparts quality. Developed by qualified engineers and in a high-tech laboratory. To ensure optimal operation, please read this manual carefully before using the product. Keep the manual in a safe and accessible place for future reference. -
Page 4: Front Panel And Crossover Switch
FRONT PANEL AND CROSSOVER SWITCH FRONT PANEL Blue LED: indicator of source and amplifier on Red LED: indicator of distortion at the output (clipping), short circuit and thermal protection. Yellow LED: indicator of battery voltage below the specified (flashing) CROSSOVER SWITCH Allows you to turn off or on the subsonic, Crossover and Bass Boost adjustments. - Page 5 CONNECTION EXAMPLES BEAT 3001 BEAT 3002 BEAT 3004 Woofer or subwoofer Woofer or subwoofer Woofer or subwoofer 2+2 Ohms connected in parallel 4+4 Ohms connected in parallel 8+8 Ohms connected in parallel resulting in 3000Wrms @ 1 resulting in 3000Wrms @ 2 resulting in 3000Wrms @ 4 Ohms Ohms...
-
Page 6: Solutions To Possible Problems
SOLUTIONS TO POSSIBLE PROBLEMS PROTECTION SYSTEM PROBLEM SOLUTION Install the device in a ventilated area and ensure that the The amplifier temperature has ventilation system Blue and Red LEDs on reached the operating limit obstructed. The amplifier will (approximately 85ºC outside) return to normal operation as soon as the temperature drops Check that there is no short... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS PARAMETERS BEAT 3001 BEAT 3002 BEAT 3004 Maximum Power 14.4v @ 1 Ohm 3900 WRMS Maximum Power 14.4v @ 2 Ohms 2900 WRMS 3500 WRMS Maximum Power 14.4v @ 4 Ohms 2600 WRMS 3600 WRMS Maximum Power 14.4v @ 8 Ohms 2400 WRMS Maximum Power 12.6v @ 1 Ohm 3000 WRMS... - Page 8 TECHNICAL SPECIFICATIONS NOTE *This amplifier does not have an internal fuse. An external 150 amp fuse is recommended. DIMENSIONS 243mm 3,5 kg Weight 209mm 54mm...
-
Page 10: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Banda Audioparts dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. -
Page 12: Bandaaudioparts /Banda_Audioparts
/Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
