Texmate CL-B101D40-DCA Manual

Hi accurancy programmable dc amp meter or dc volt meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Specifications

Input Specs: ������������������ Depends on Input signal conditioner
A/D Converter: �������������� 14 bit single slope
Accuracy: ���������������������� ±(0�05% of reading + 2 counts)
Temp. Coeff�: ����������������� 100 ppm/°C (Typical)
Warm up time: ��������������� 2 minutes
Conversion Rate: ���������� 10 conversions per second (Typical)
Digital Display: �������������� 4 digit 0.56" LED red (std), green (optn)
Range -1999 to 9999 counts�
Bargraph Display: ��������� 101 segment 235º circular red (standard),
Green (optional) or tricolor (optional) LED�
Polarity: ������������������������� Assumed positive� Displays - negative
Decimal Selection: �������� Front panel button selectable, X•X•X•X•
Positive Overrange: ������ Bargraph and top segments of digital display
flash�
Negative Overrange: ���� First segment of bargraph and bottom seg-
ments of digital display flash�
Relay Output: ���������������� Two 9 Amp Form C relays, two 4 Amp Form
A relays or 4 x 4 Amp Form A relays
Analog Output: ������������� Isolated 16 bit user scalable mA or V
OIC (mA out) �������������� 4-20 mA @ 0 to 500٠max loop resistance
OIV (volts out) �������������� 0-10 V DC @ 500 ٠or higher resistance
Power Supply: ��������������� AC/DC Auto sensing wide range supply
PS1 (std) �������������������� 85-265 VAC / 95-300 VDC, 50-400Hz 4.2W
PS2 ����������������������������� 18-48 VAC / 10-72 VDC, 50-400Hz 4�2W
Operating Temp�: ���������� 0 to 50°C
Storage Temp: ��������������� -20°C to 70°C
Relative Humidity: �������� 95% (non condensing)
Case Dimensions: �������� Bezel (4.48"x4.48") 113.8x113.8mm
Depth behind bezel (4.23") 107.46 mm
Plus (0�48") 12�24 mm for connectors
Weight: ��������������������������� 16 oz�, 1lb 4 oz when packed
Case Dimensions . . . . . . . . . . . . . . . . . . . . . . 13
Component Layout. . . . . . . . . . . . . . . . . . . . . 11
Controls and Indicators . . . . . . . . . . . . . . . . . . 2
CL-B101D40-DCA_DCV manual (d0216)
LEOPARD
FAMILY
0.56" LEDs

Table of Contents

Functional Diagram . . . . . . . . . . . . . . . . . . . . 10
General Features . . . . . . . . . . . . . . . . . . . . . . . 1
Installation guidelines. . . . . . . . . . . . . . . . . . . 12
Ordering Information . . . . . . . . . . . . . . . . . . . 14
CL-B101D40-DCA
20/50/100/200mV DC Full Scale
CL-B101D40-DCV
2/20/200V DC
Hi Accuracy Programmable DC Amp meter or
DC Volt meter. Tricolor or Mono-color Digital bar-
graph, Transmitter and Controller with optional
4-20mA or 0-10 VDC Output and Optional four
fully programmable set points.

General Features

•
- DCA used with external DCmV Shunts
ID02 : DC mV ±20mV, ±50mV, ±100mV, ±200mV w/24V Exc.
- DCV
ID01 : DC-Volts 2V/20V/200V w/24V Exc.
ID05 : DC-Volts 2V/20V/200V w/24V Exc. and Zero offset
adjustable pot
•
Optional isolated 16 bit analog output. User or factory scalable to 4
to 20 mA, 0 to 20 mA or 0 to 10 V across any desired digital span
from ± one count to the full scale range of - 1999 to 9999 (12000
counts).
•
A Programmable Tricolor (Red-Green-Orange) or mono color (red or
green), 101 segment high brightness bargraph.
•
Red 4-digit LED display with a range of -1999 to 9999 (12000
counts). Optional green digital display.
•
Front panel LED annunciators provide indication of setpoint status.
•
Two 9 Amp Form C, and two 4 Amp Form A or 4 x 4 Amp Form A
relays available.
•
Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-300 V DC (PS1) or 18-48 V AC / 10-72 V DC
(PS2).
•
Provision to connect an external programming lockout switch.
•
Provision for external DIM switch to reduce the brightest
display setting by 50%.
•
Automatic intelligent averaging, smooths noisy signals while
providing a fast display response to real level changes.

Software Features

•
The bargraph can display, full
scale, any desired portion of
the digital reading.
•
Setpoint 1 has delay-on-make
and delay-on-break plus a spe-
cial "pump on pump off" mode
that creates a Hysteresis Band
between SP1 and SP2.
•
Four programmable setpoints
with adjustable Hysteresis.
Range Selection Mode. . . . . . . . . . . . . . . . . . . 7
Programming Conventions. . . . . . . . . . . . . . . . 2
Software Features . . . . . . . . . . . . . . . . . . . . . . 1
Software Logic Tree . . . . . . . . . . . . . . . . . . . . . 3
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 1
Digital Rescaling Procedures . . . . . . . . . . . . . . 4
•
Bargraph center zero function.
•
Relay activation can be selected
to occur above (hi) or below (Lo)
each setpoint.
•
Digital display blanking.
•
Decimal point setting.
•
Four-level brightness control
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL-B101D40-DCA and is the answer not in the manual?

Questions and answers

Related Manuals for Texmate CL-B101D40-DCA

Summary of Contents for Texmate CL-B101D40-DCA

  • Page 1: Table Of Contents

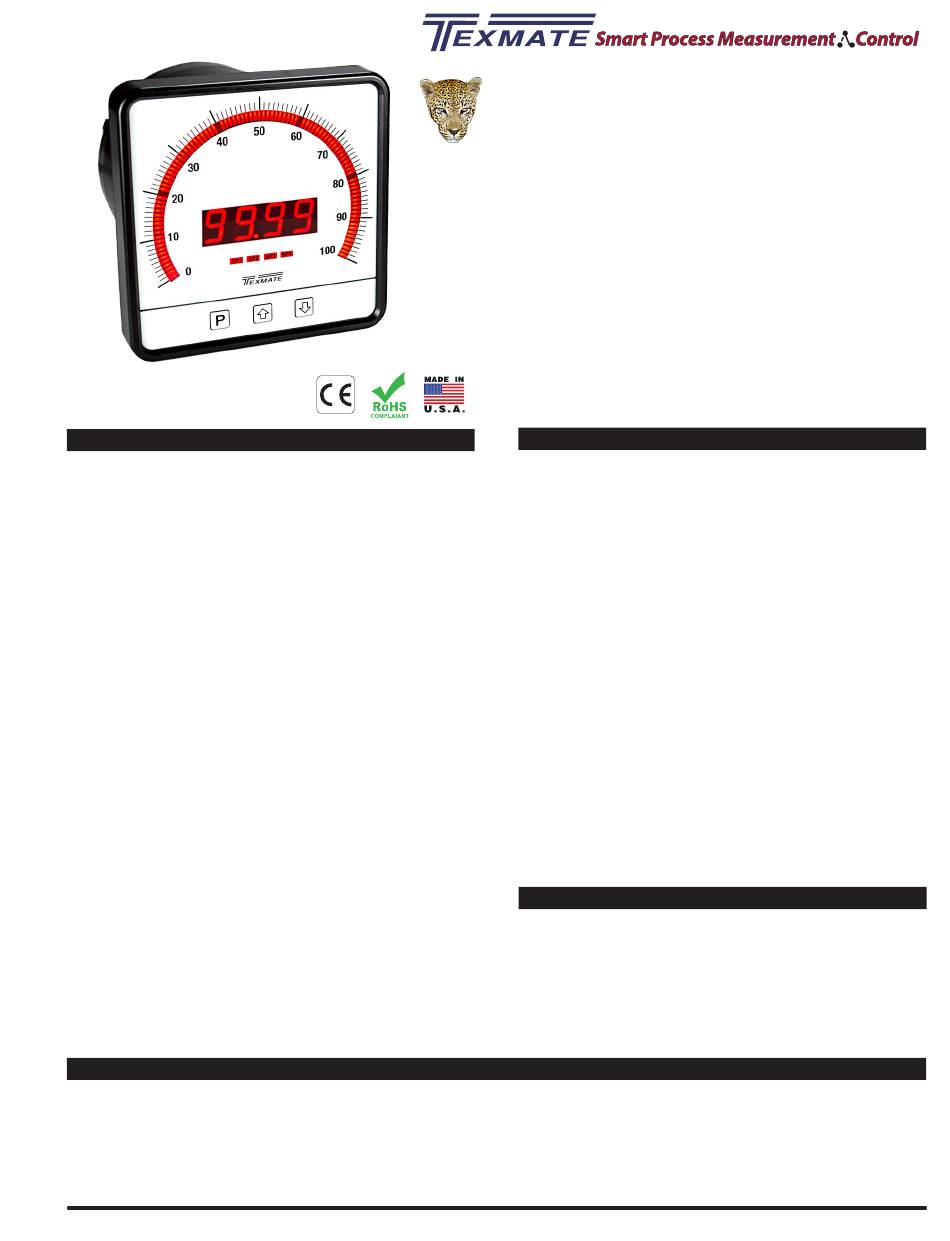

    CL-B101D40-DCA LEOPARD 20/50/100/200mV DC Full Scale FAMILY CL-B101D40-DCV 2/20/200V DC Hi Accuracy Programmable DC Amp meter or DC Volt meter. Tricolor or Mono-color Digital bar- 0.56” LEDs graph, Transmitter and Controller with optional 4-20mA or 0-10 VDC Output and Optional four fully programmable set points.

  • Page 2: Front Panel Controls And Indicators

    Controls and Indicators Front Panel Controls and Indicators Up Button When in the operational display, pressing the button allows you Setpoints indicated 101 Segment to view the setting of the saved Peak and Valley Values. Single or Tri-color by an OFF Segment Bargraph When setting a displayed parameter during programming, the Bargraaph Display button is used to increase the value of the displayed parameter.

  • Page 3: Software Logic Tree

    Software Logic Tree The CL-B101D40HZ is an intelligent bargraph meter with a hier- vWhen power is applied, all segments of the bargraph and archical software structure designed for easy programming and digital display light up for 3 seconds. The version number of operation, as shown below in the software logic tree.

  • Page 4: Digital Rescaling Procedures

    Two Point Digital Calibration Mode This mode enables the meter to be calibrated by applying a zero or low input signal, entering the desired reading for that signal, then applying a high input signal, and then entering the desired reading for that signal. The meter then automatically calculates and programs in the requisite scale factor, within the following parameters. 1. Positive and negative signals may be applied, but the difference between the low and the high signal inputs must be at least 1000 counts or Err will be indicated. 2. Positive and Negative values for the desired reading can be entered, but the scale factor created can not exceed the Digital Display Span capability of the meter which is 12,000 counts between –1999 to 9999.

  • Page 5: Decimal Point And Brightness Selection

    Digital Span Selection For Bargraph Display The bargraph can be set to display full scale (0-101 bars) any portion An example of setting the digital span of the bargraph of the digital reading from a minimum of 100 counts to a maximum of display to be different than 12,000 counts. This provides higher resolution bargraph indication for the digital display range No bargraph display those applications where the normal operating input signal range is less...

  • Page 6: Bargraph Center Point Display Mode Selection

    Digital Span Selection for Analog Range Output Digital Span Selection for Analog Range Output STEP E Selecting the [Anhi] Digital Value for Analog High Output 1) Using the buttons, adjust the display to the desired From Decimal Point and DIGITAL SPAN SELECTION Brightness Selection digital value at which the [chi] Calibrated Analog High output will FOR ANALOG RANGE OUTPUT...

  • Page 7: Case Dimensions

    Two Point Analog Output Range Setting and Calibration Two Point Analog Output Range Setting and Calibration Determine if the Analog Output Selection Header is in the 4 to 20mA (0-20mA) position or the 0 Operational Display to 10VDC position. If necessary, the module may have to be removed and the header position changed (see Component Layout below). Note: Always disconnect power from the meter before removing the analog output module to Sub-menu adjust the mA or Volts output selection header and reinstalling it. When power is reconnected, the MODE meter’s software will automatically detect the presence or absence of the analog output module.

  • Page 8: Setpoint Setting & Relay Configuration Mode

    Setpoint Setting and Relay Configuration Mode The following programming steps are required to enter the setpoint values and configure the relay functions Operational Display in a meter with four relays using four setpoints. Generally if less than four relays are installed, the setpoints without relays are operational in software for tri-color control or display only purposes. To remove unwanted STEP A setpoint indications, set them to 9999 or -1999 depending on the relay activation mode selected. SETPOINT SETTING STEP A Enter the Setpoint Mode AND RELAY CONFIGURATION MODE 1) Press the buttons at the same time. Display toggles between [SP1] and the previous SP1 setting. STEP B STEP B Set Setpoint 1 [SP1] 1) Using the buttons, adjust the display to the desired SP1 value.

  • Page 9: Bargraph Color Programming Mode

    Setpoint Setting and Relay Configuration Mode Continued STEP M Set Relay Activation mode [rLYS] for SP1 (h) High the relay energizes when the setpoint is exceeded. (L) Low the relay energizes below From From Step L of Setpoint Setting and Relay the setpoint. The setpoint is indicated from left to right SP1, SP2, SP3, SP4. Configuration Page 8 1) Using the buttons, select (L) or (h) for the first digit, which corresponds to SP1. 2) Press the button. The SP2 Relay Activation digit begins to flash, and its decimal point is lit. STEP N Set High (h) or Low (L) for SP2 STEP M 1) Using the...

  • Page 10: Connector Pinouts And Pin Descriptions

    Chassis Ground Tab for Optional Metal Case Connector Pinouts Connector Pinouts Standard plug-in screw terminal connectors provided by Texmate: Pinout Diagram The Rear View of the Meter diagram shows the meter with the relay configuration: dual 9 Amp Form C and dual 4 Amp Form A relays�...

  • Page 11: Component Layout

    Connector Pinouts continued Relay Modules with 2 Non-Isolated 4A Form A Relays, AC/DC Power Input- Pins 14 and 15 and 2 Non-Isolated 9A Form C Relays Auto-sensing AC/DC power supply� For voltages between 85-265 V AC/95-300 V DC (PS1) or 18-48 V AC/10-72 V DC (PS2). DL Series AC/DC Neutral.

  • Page 12: I-Series Input Signal Conditioning Modules

    I-Series Input Signal Conditioning Modules : to be used with 50mV/60mV/100mV/120mV Shunts DC AMPS INPUT MODULE Span Adj� Header ID02: DC Millivolts, 20/50/100/200mV DC Span Pot w/24V DC Exc Zero Offset Pot < Decrease Span Increase> (ID02) Input Range DCmV 24V EXC Header Exc.

  • Page 13: Case Dimensions

    Input Module Component Glossary Input and Output Pins SPAN RANGE Header On most modules Pin 1 is the Signal High input When this header is provided it works in conjunc- and Pin 3 is the Signal Low input. Typically Pin 2 tion with the SPAN ADJUST Header by splitting its is used for Excitation Voltage output.

  • Page 14: Ordering Information
