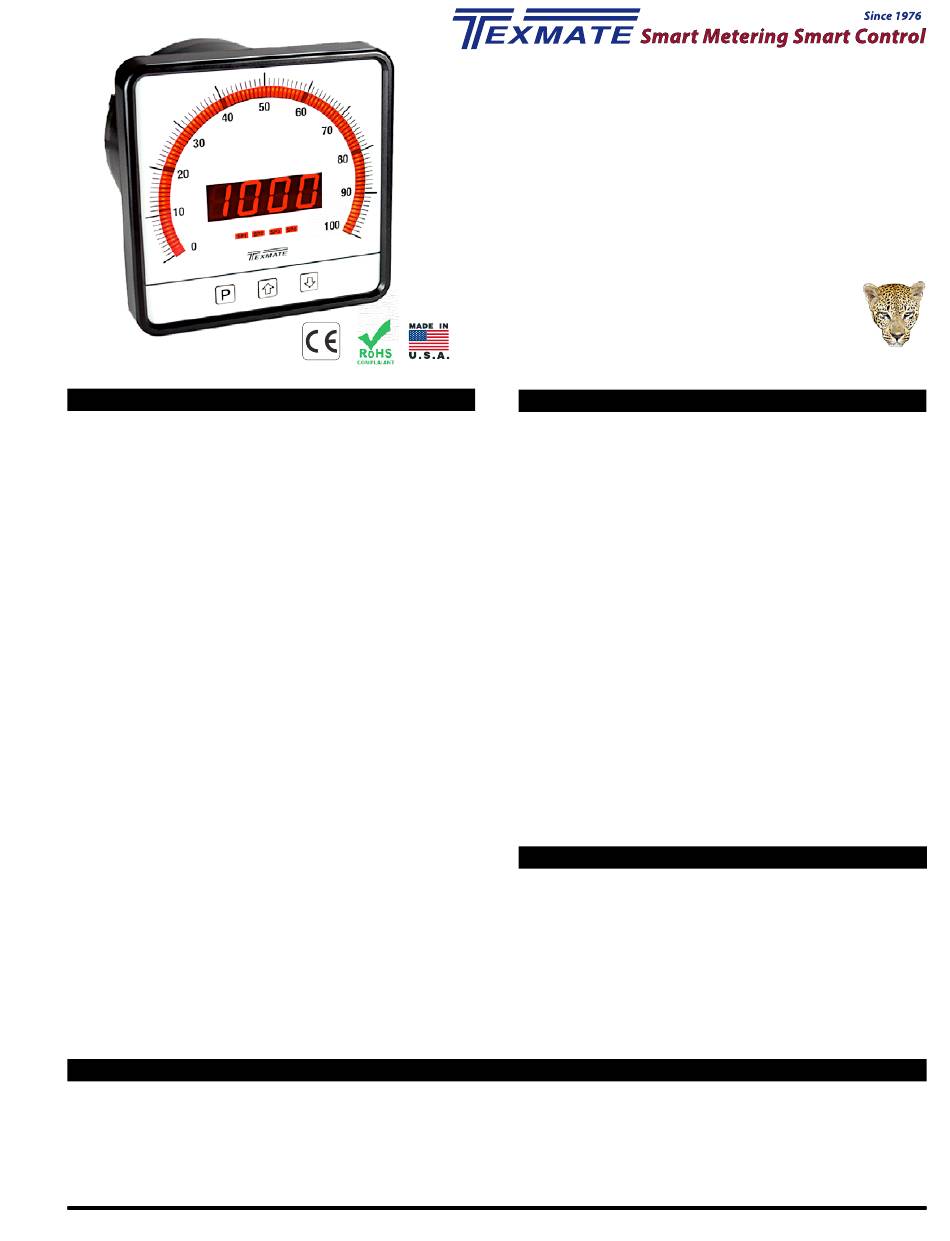

Texmate CL-B101D40RPM Manual

Smart 101 segment, 4 digit led tricolor or mono-color digital bargraph controller with four fully programmable set points in a switchboard style case for rpm measurement

Advertisement

Quick Links

Specifications

Input Specs: .................. Depends on Input signal conditioner
A/D Converter: .............. 14 bit single slope
Accuracy: ...................... ±(0.05% of reading + 2 counts)
Temp. Coeff.: ................. 100 ppm/°C (Typical)
Warm up time: . .............. 2 minutes
Conversion Rate: . ......... 10 conversions per second (Typical)
Digital Display: . ............. 4 digit 0.56" LED red (std), green (optn)
Range 0 to 9999 counts.
Bargraph Display: . ........ 101 segment 235º circular bar red (std),
green (optn)or tricolor (optn),
Polarity: ......................... Assumed positive. Displays - negative
Decimal Selection: . ....... Front panel button selectable, X•X•X•X•
Positive Overrange: . ..... Bargraph and top segments of digital display
flash.
Negative Overrange: .... First segment of bargraph and bottom seg-
ments of digital display flash.
Relay Output: ................ Two 9 Amp Form C relays, two 4 Amp Form
A relays or 4 x 4 Amp Form A relays.
Analog Output: ............. Isolated 16 bit user scalable mA or V
OIC (mA out) .............. 4-20 mA @ 0 to 500Ω max loop resistance
OIV (volts out) .............. 0-10 V DC @ 500 Ω or higher resistance
Power Supply: . .............. AC/DC Auto sensing wide range supply
PS1 (std) . ................... 85-265 VAC / 95-300 VDC, 50-400Hz 4.2W
PS2 . ............................ 18-48 VAC / 10-72 VDC, 50-400Hz 4.2W
Operating Temp.: .......... 0 to 50°C
Storage Temp: . .............. -20°C to 70°C
Relative Humidity: ........ 95% (non condensing)
Case Dimensions: ........ Bezel (4.48"x4.48") 113.8x113.8mm
Depth behind bezel (4.23") 107.46 mm
Plus (0.48") 12.24 mm for connectors
Weight: . .......................... 16 oz., 1lb 4 oz when packed
Case Dimensions . . . . . . . . . . . . . . . . . . . . . . . 7
Component Layout. . . . . . . . . . . . . . . . . . . . . 10
Controls and Indicators . . . . . . . . . . . . . . . . . . 2
CL-B101D40RPM(d0097) manual
CL-B101D40RPM
Smart 101 segment, 4 digit LED Tricolor or
0.56"
LEDs

General Features

This meter has been designed specifically for RPM measurements.
Just enter the pules per revolution and the CL-B01DRPM bargraph
will calculate and display the RPM reading.
Three ranges with resolution of 0.1 RPM, 1 RPM and 10 RPM
(99.99 x 1000 rpm max).
Optional isolated 16 bit analog output. User or factory scalable
to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any desired digital
span from ± one count to the full scale range of 0 to 9999.
Standard 101 segment Red Bar and Red 4-digit LED display with
a range of 0 to 9999. Optional Green Bar and Green Digital dis-
play. Also Optional Programmable Tricolor (Red-Green-Orange)
Bar is available.
Front panel LED annunciators provide indication of setpoint status.
Two 9 Amp Form C, and two 4 Amp Form A or 4 x 4 Amp Form A
relays available.
Provision to connect an external programming lockout switch.
Provision for external DIM switch to reduce the brightest
display setting by 50%.
Automatic intelligent averaging, smooths noisy signals while
providing a fast display response to real level changes.
24V excitation is available to power encoders or prox switches.

Software Features

The bargraph can display, full
scale, any desired portion of
the digital reading.
Setpoint 1 has delay-on-make
and delay-on-break plus
a special "pump on pump
off" mode that creates a
Hysteresis Band between SP1
and SP2.
Index
General Features . . . . . . . . . . . . . . . . . . . . . . . 1
Ordering Information . . . . . . . . . . . . . . . . . . . 13
Programming Conventions. . . . . . . . . . . . . . . . 2
Mono-color digital bargraph controller
with four fully programmable set points
in a switchboard style case for
RPM Measurement.
Software Features . . . . . . . . . . . . . . . . . . . . . . 1
Software Logic Tree . . . . . . . . . . . . . . . . . . . . . 3
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 1
LEOPARD
FAMILY
Four programmable setpoints
with adjustable Hysteresis.•
Bargraph center zero function.
Relay activation can be select-
ed to occur above (hi) or below
(Lo) each setpoint.
Decimal point setting.
Digital display blanking.
Four-level brightness control
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL-B101D40RPM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texmate CL-B101D40RPM

  • Page 1: Table Of Contents

    Controls and Indicators ....2 Programming Conventions....2 CL-B101D40RPM(d0097) manual Page 1...
  • Page 2: Controls And Indicators

    If an X appears through a digit, it means that gram indicates that programming branch any number displayed in that digit is not rel- will appear only when a particular option is evant to the function being explained. present. Page 2 CL-B101D40RPM(d0097) manual...
  • Page 3: Software Logic Tree

    Software Logic Tree Software Version is Displayed on Power-up The CL-B101D40RPM is an intelligent bargraph meter with a hier- archical software structure designed for easy programming and When power is applied, all segments of the bargraph and dig- operation, as shown below in the software logic tree.
  • Page 4 RPM), 1 (max. 9999 RPM) and 10 RPM (max. 99.99 x 10000 PULSES PER RPM) REVOLUTION, RANGE 2) Press the button. SELECTION STEP C PPR STEP D Range [0.1] [10] To Digital Span Selection for Bargraph Display Page 5 Page 4 CL-B101D40RPM(d0097) manual...
  • Page 5: Digital Span Selection For Bargraph Display

    [Cto] and [oFF], the software is detecting that the optional analog Example output hardware is NOT installed. To Digital Span Selection for Analog Range Output or Bargraph Center Point Display Mode Selection on Page 6 CL-B101D40RPM(d0097) manual Page 5...
  • Page 6: Bargraph Center Point Display Mode Selection

    If the digital display is selected to be off, pressing any button to make programming changes or to view setpoints activates the digital display. When the procedure is complete, the digital display will then automatically switch off. The Display/Bargraph settings are now complete. Operational Display Page 6 CL-B101D40RPM(d0097) manual...
  • Page 7: Case Dimensions

    See Digital Span Selection on page 6. Case Dimensions 16.30 0.642 0.276 13.70 2.60 screw-1/4”-28 UNF 0.539 0.102 119.70 113.79 4.713 42.85 42.85 17.50 4.480 1.687 1.687 13.70 0.689 0.539 Panel Cutout 1/4"-28UNF 16.30 0.642 4.80 0.189 13.70 screw-10-32 UNF 0.539 CL-B101D40RPM(d0097) manual Page 7...
  • Page 8: Setpoint Setting & Relay Configuration Mode

    [hYSt] value 2) Press the button. Display toggles between [rLYS] and the previous relay setting. STEP M Please Continue On Next Page. To Step N of Setpoint Setting and Relay Configuration Page 9 Page 8 CL-B101D40RPM(d0097) manual...
  • Page 9: Bargraph Color Programming Mode

    1) Using the buttons, select the desired bargraph color [grn], [oran] or [red] 2) Press the button. The meter exits the setpoint mode and returns to the operational display. The Bargraph Color programming mode is now complete. CL-B101D40RPM(d0097) manual Page 9...
  • Page 10: Component Layout

    Reserved for RS-485 the COMMON pin, the display brightness setting is halved. Pin 10 COMMON. To activate the LOCK or DIM functions from the rear of the meter, the respective pins have to be connected to the See Leopard Family Input Signal Conditioning Modules COMMON pin. This pin is connected to the internal power supply ground. Pin 9 No function Neutral Line – DC + DC Pin 8 LOCK. By connecting the LOCK pin to the Auto-sensing AC/DC power supply. For voltages between COMMON pin, the meter's programmed 85-265 V AC / 95-300 V DC (PS1) or 18-48 V AC / 10-72 V DC (PS2). parameters can be viewed but not changed. Page 10 CL-B101D40RPM(d0097) manual...
  • Page 11: I-Series Input Signal Conditioning Modules

    +24V MAG/AC Open Collector Proximity Switch Normally Pin 1 is at 24V LOGIC When sensor is activated Pin 1 goes to 0V 20KHz 2KHz 200Hz High Accuracy Digital Measurement IF05 Signal Type Header Low-pass Filter Header AC, mV or digital logic 20 kHz, 2kHz, 200Hz Please go to IF05 input module data sheet for more detail https://www.texmate.com/media/pdf/2018/09/Texmate_IF05.pdf CL-B101D40RPM(d0097) manual Page 11...
  • Page 12 (e.g., 15A or 20A). 5. See Case Dimensions section for panel cutout infor- mation. 6. See Connector Pinouts section for wiring. 7. Use 28-12 AWG wiring, minimum 90˚C (HH) tem- perature rating. Strip wire approximately 0.3 in. (7-8 mm). 8. Recommended torque on all terminal plug screws is 4.5 lb-in (0.51 N-m). Page 12 CL-B101D40RPM(d0097) manual...
  • Page 13: Ordering Information

    However, normal use and service for a period of one year from date of shipment. Texmate’s obligations since we have no control over the use of our products once they are shipped, NO WARRANTY...
