Texmate CL-B101D40 Manual

LEOPARD
FAMILY

Specifications

Input Specs: ������������������ Depends on Input signal conditioner
A/D Converter: �������������� 14 bit single slope
Accuracy: ���������������������� ±(0�05% of reading + 2 counts)
Temp. Coeff�: ����������������� 100 ppm/°C (Typical)
Warm up time: ��������������� 2 minutes
Conversion Rate: ���������� 10 conversions per second (Typical)
Digital Display: �������������� 4 digit 0.56" LED red (std), green (optn)
Range -1999 to 9999 counts�
Bargraph Display: ��������� 101 segment 235º circular red (standard),
Green (optional) or tricolor (optional) LED�
Polarity: ������������������������� Assumed positive� Displays - negative
Decimal Selection: �������� Front panel button selectable, X•X•X•X•
Positive Overrange: ������ Bargraph and top segments of digital display
flash�
Negative Overrange: ���� First segment of bargraph and bottom seg-
ments of digital display flash�
Relay Output: ���������������� Two 9 Amp Form C relays, two 4 Amp Form
A relays or 4 x 4 Amp Form A relays
Analog Output: ������������� Isolated 16 bit user scalable mA or V
OIC (mA out) �������������� 4-20 mA @ 0 to 500٠max loop resistance
OIV (volts out) �������������� 0-10 V DC @ 500 ٠or higher resistance
Power Supply: ��������������� AC/DC Auto sensing wide range supply
PS1 (std) �������������������� 85-265 VAC / 95-300 VDC, 50-400Hz 4.2W
PS2 ����������������������������� 18-48 VAC / 10-72 VDC, 50-400Hz 4�2W
Operating Temp�: ���������� 0 to 50°C
Storage Temp: ��������������� -20°C to 70°C
Relative Humidity: �������� 95% (non condensing)
Case Dimensions: �������� Bezel (4.48"x4.48") 113.8x113.8mm
Depth behind bezel (4.23") 107.46 mm
Plus (0�48") 12�24 mm for connectors
Weight: ��������������������������� 16 oz�, 1lb 4 oz when packed
Bargraph Center Point Display Mode Selection . . . 6
Bargraph Color Programming Mode . . . . . . . . 9
Case Dimensions . . . . . . . . . . . . . . . . . . . . . . . 7
Component Layout. . . . . . . . . . . . . . . . . . . . . 11
Connector Pinouts . . . . . . . . . . . . . . . . . . . . . 10
Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls and Indicators . . . . . . . . . . . . . . . . . . 2
Decimal Point and Brightness Selection . . . . . 5

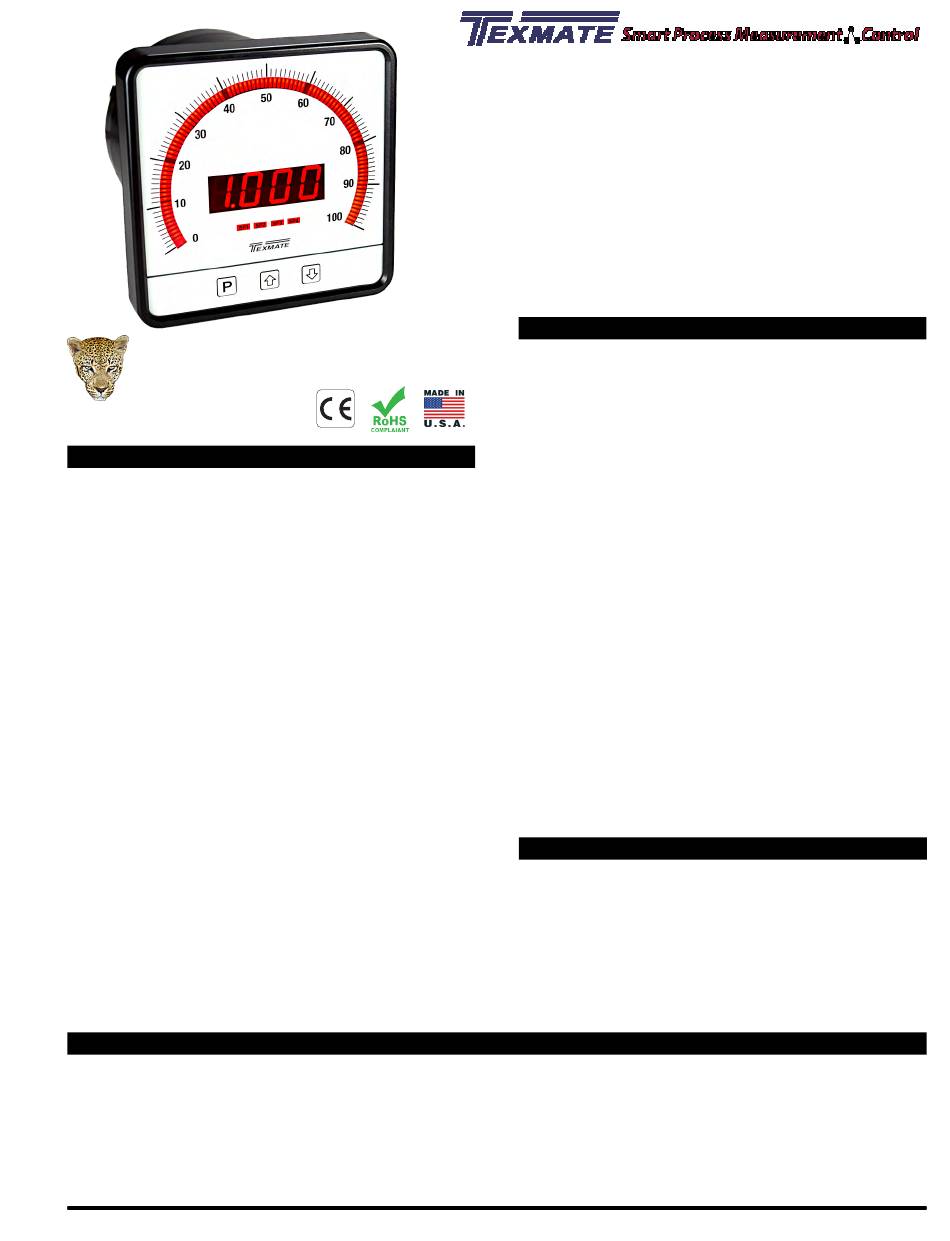

CL-B101D40 bargraph meter (d0094)_data sheet
Smart 101 segment, 4 digit LED Tricolor or Mono-
monitoring, measurement, and control applications.
0.56" LEDs

Table of Contents

Digital Span Selection for Display . . . . . . . . . . 5
Digital Span Selection for Analog Range Output. . . 6
Functional Diagram . . . . . . . . . . . . . . . . . . . . 10
General Features . . . . . . . . . . . . . . . . . . . . . . . 1
I-Series Input Signal Conditioning Modules . . . 12-14
Input Module Calibration Procedures . . . . . . 16
Input Module Component Glossary. . . . . . . . 15
Installation guidelines. . . . . . . . . . . . . . . . . . . 17
Ordering Information . . . . . . . . . . . . . . . . . . . 18
CL-B101D40
color digital bargraph controller with
four fully programmable set points
in a switchboard style case for

General Features

• External transmitters or signal conditioners can be eliminated by
direct connection of the sensor output to more than
40 Plug-in Input Signal Conditioners that include:
- AC/DC Current - Pressure
- AC/DC Voltage - Process
- Load Cell - Prototype
• Optional isolated 16 bit analog output. User or factory scalable to 4
to 20 mA, 0 to 20 mA or 0 to 10 V across any desired digital span
from ± one count to the full scale range of - 1999 to 9999 (12000
counts).
• A Programmable Tricolor (Red-Green-Orange) or mono color (red or
green), 101 segment high brightness bargraph.
• Red 4-digit LED display with a range of -1999 to 9999
(12000 counts). Optional green digital display.
• Front panel LED annunciators provide indication of setpoint status.
• Two 9 Amp Form C, and two 4 Amp Form A or 4 x 4 Amp Form A
relays available.
• Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-300 V DC (PS1) or 18-48 V AC / 10-72 V DC
(PS2).
• 24 V DC excitation is available to power external 4/20mA
transmitters and 5 or 10 V DC excitation is available for
resistance bridge type sensors.
• Provision to connect an external programming lockout switch.
• Provision for external DIM switch to reduce the brightest
display setting by 50%.
• Automatic intelligent averaging, smooths noisy signals while
providing a fast display response to real level changes.

Software Features

• The bargraph can display, full
scale, any desired portion of
the digital reading.
• Setpoint 1 has delay-on-make
and delay-on-break plus
a special "pump on pump
off" mode that creates a
Hysteresis Band between SP1
and SP2.
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . 10
Programming Conventions. . . . . . . . . . . . . . . . 2
Setpoint Setting & Relay Configuration Mode. . . . 8-9
Software Features . . . . . . . . . . . . . . . . . . . . . . 1
Software Logic Tree . . . . . . . . . . . . . . . . . . . . . 3
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 1
Two Point Analog Range Setting & Calibration . . . . 7
Two Point Digital Calibration Mode . . . . . . . . . 4
- Resistance
- Temperature
- 4 to 20 mA
• Four programmable setpoints
with adjustable Hysteresis.•
Bargraph center zero function.
• Relay activation can be select-
ed to occur above (hi) or below
(Lo) each setpoint.
• Digital display blanking.
• Decimal point setting.
• Four-level brightness control
Page 1
