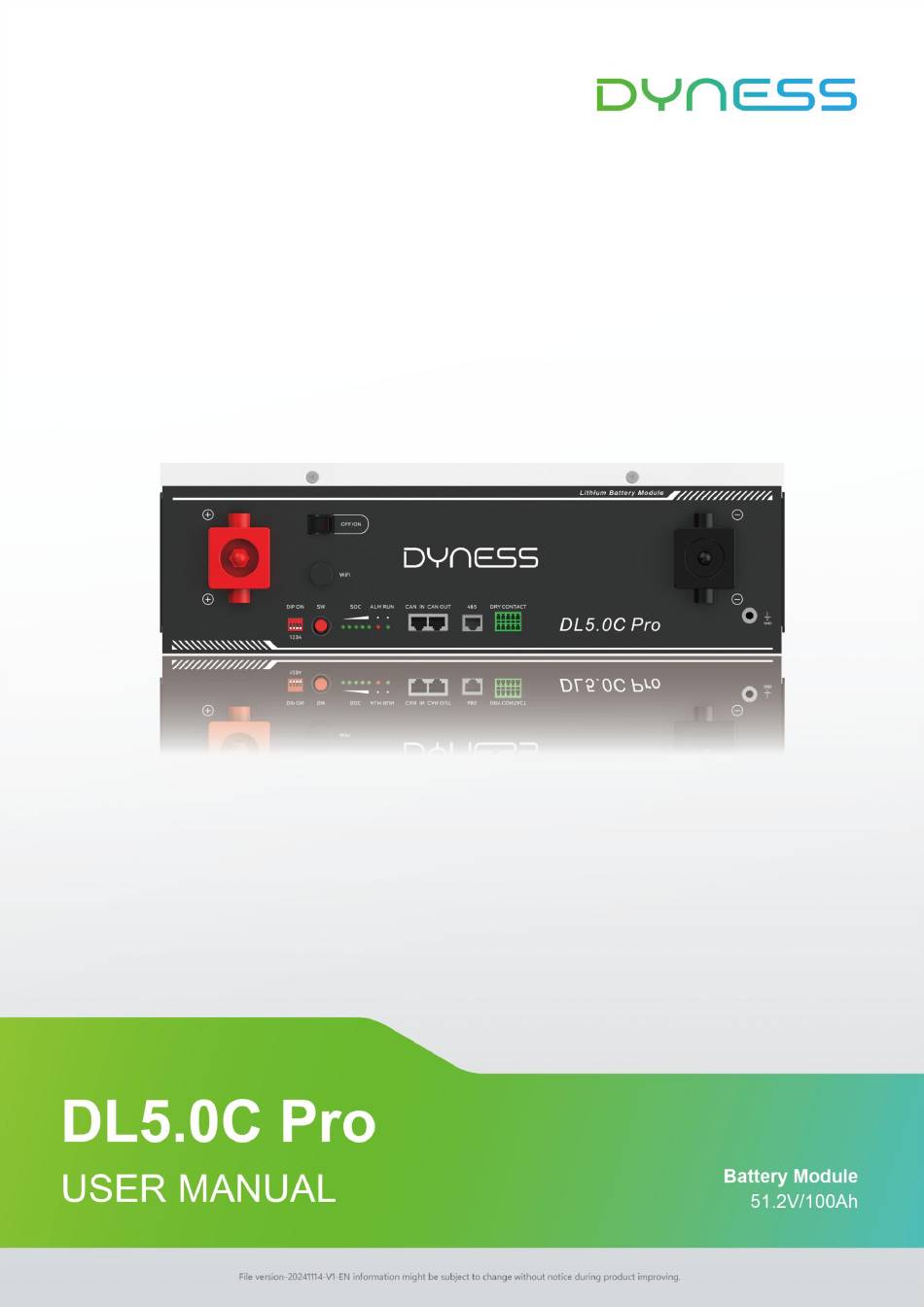

- Page 1 DL5.0C Pro User Manual © Dyness reserves the copyright of this document...
-
Page 2: Table Of Contents
Equipment Installation ..........................20 4 Use, Maintenance and Troubleshooting ..............24 Battery System Usage and Operation Instructions ............... 24 Alarm Description and Processing .......................25 Analysis and Treatment of Common Faults ..................26 © Dyness reserves the copyright of this document... -
Page 3: Statement Of Law
Copyright of this document belongs to Dyness Digital Energy Technology Co., LTD.. No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written permission of Dyness Digital Energy Technology Co., LTD.. -
Page 4: Safety Precautions
The surface of the product cabinet is affixed with a torn invalid label. Therefore, before opening the cover , you need to contact DYNESS and inform the product ID. DYNESS will record this battery ID and authorize the opening operation to be performed. Except for changing the DIP switch mode, no other operations are allowed. -
Page 5: Preface
DL5.0C Pro User Manual dealer or distributor of DYNESS for a new torn invalid sticker after tearing the original invalid label. When the operation is completed, paste the new one at a different position. Preface Manual declaration DL5.0C Pro lithium iron phosphate battery energy storage system can provide energy storage for photovoltaic power generation users through parallel combination. -
Page 6: Introduction
DL5.0C Pro lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of DL5.0C Pro according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. - Page 7 Do not place near open flame or incinerate. If catch fire, do not put out with water. If catch fire, do not put out with dry powder fire extinguisher. © Dyness reserves the copyright of this document...
-
Page 8: Product Specification
DL5.0C Pro User Manual Do not cut or spear with sharp objects. This battery product meets European directive requirements. 2 Product Specification Size and Weight Table 2-1 DL5.0C Pro Device size Nominal Nominal Product Dimension Weight Voltage Capacity DL5.0C Pro DC51.2V... - Page 9 Table 2-4 DIP switch definition and description DIP switch position (master communication protocol and baud rate selection) Baud rate selection Define different protocols； OFF：CAN: 500K,485: 9600 Distinguish between master and slave ON：CAN: 250K,485: 115200 © Dyness reserves the copyright of this document...
- Page 10 CAN interface. The host summarizes the information of the entire battery system and communicates with the inverter through CAN or 485. If the master is the latest DL5.0C Pro battery with DIP switch: 1. The communication cable from the master CAN IN to the inverter comm port should be the correct one.
- Page 11 6. When you setup the master DIP as setting 1~4, all the slaves keep the DIP 0000,no need to change. 7. If the energy storage system has only one DL5.0C Pro, it is the master itself, and still follow the above steps.
- Page 12 INT CANL PIN9 Orange/white Reserve PIN10 Orange Reserve PIN11 Green/white Reserve PIN12 Blue Reserve PIN13 Blue/white Reserve PIN14 Green Reserve PIN15 Brown/white INT CANH PIN16 Brown INT CANL Figure 2-3 485 Interface Definition © Dyness reserves the copyright of this document...
- Page 13 A special ALM light flashing state: when the communication between batteries is lost or abnormal,all the lights from SOC to RUN of the master battery will flash together. ●: means green light always on Flashing: means green light flashing © Dyness reserves the copyright of this document...
-
Page 14: Battery Management System(Bms)
When the charge current＞90A, current limit protection mode is activated, current will be limited to≤3A，protection is removed after rated time delaying 10S. Circulate like this until the current is lower than 90A. Over Current Protection in Discharging： © Dyness reserves the copyright of this document... - Page 15 When device connects no external loads and power supply and no external communication for over 72 hours, device will dormant standby automatically. CAUTION Battery’s maximum discharging current should be more than load’s maximum working current. © Dyness reserves the copyright of this document...
-
Page 16: Installation And Configuration
The ground for product arrangement shall be flat and level. • No flammable explosive materials near the installation site. • The optimal ambient temperature is 15 C~30 • Keep away from dust and messy zones Tools and data © Dyness reserves the copyright of this document... - Page 17 Firefighting equipment should be provided near the product, such as portable dry powder fire extinguisher. • Automatic fire fighting system shall be provided for the case where necessary. • No flammable, explosive and other dangerous materials are placed beside the battery. © Dyness reserves the copyright of this document...
- Page 18 /4AWG/L1500mm Power cable- Black negative /4AWG/L1500mm Black Communication /L2000mm/Double parallel cable RJ45 plug Black Communication /L2000mm /Double cable-to inverter RJ45 plug L500mm,4mm² Ground wire Screws With Screws M8 Shoulder Expansion Bolt M6*80 © Dyness reserves the copyright of this document...
- Page 19 Installation Preparation 1. Prepare equipment and tools for installation. 2. Check the DL5.0C Pro unit and confirm that the ON/OFF switch is in the "OFF" state to ensure the device is shut off. © Dyness reserves the copyright of this document...
- Page 20 Figure 3-4 5.Fixing the Support bracket on the wall with M6 bolts. Twisting force keeps 10N·m. Figure 3-5 6.Install the step screws into the screw holes on the rear of the battery case. © Dyness reserves the copyright of this document...
- Page 21 1.Use the positioning cardboard (provided in accessory package) and mark the screw hole positions on the wall, as shown four holes in the picture on the left. Figure 3-8 2.Repeat the wall installation steps 4-7 © Dyness reserves the copyright of this document...
-
Page 22: Equipment Installation
Equipment Installation Table 3-2 Installation steps Step 1 Installation preparation Confirm that the ON/OFF switch on the front panel of DL5.0C Pro unit is in the “OFF” state to ensure no live operation. Step 2 Mechanical installation 1. Battery placement position determination 2. - Page 23 It is better to add a circuit breaker between the inverter and the battery system. The selection of the circuit breaker requires: Voltage: U>60V Current: I =Inverter power/45V The circuit breaker is installed between the battery module and the inverter, as shown in Figure 3-9: © Dyness reserves the copyright of this document...
- Page 24 Power cable Negative Positive Parallel cable- Parallel cable - Positive Negative Parallel cable - Communication Master Setting 1 Master Setting 2 Master Setting 3 Master Setting 4 Slave Setting 1 Figure 3-9 Note: © Dyness reserves the copyright of this document...
- Page 25 After the battery system installation is completed and the running is normal, you need to log in to the DYNESS official website to register the product installation and use information to make the product warranty effective. Please follow the instructions on the website to register.
-
Page 26: Use, Maintenance And Troubleshooting
If it is normal, successfully complete the connection between the battery and the inverter. If the indicator light is abnormal, please refer to the inverter manual for the cause or contact the dealer. © Dyness reserves the copyright of this document... -
Page 27: Alarm Description And Processing
Alarm Description and Processing When protection mode is activated or system failure occurred, the alarm signal will be given through the working status indicator on the front panel of the DL5.0C Pro. The network management can query the specific alarm categories. -
Page 28: Analysis And Treatment Of Common Faults
Check these possible cable is incorrectly connected fault causes one by one at the battery communication port or the inverter communication port/The battery firmware version is too low to support the inverter © Dyness reserves the copyright of this document... - Page 29 Address: No.688, Liupu Road, Guoxiang Street, Wuzhong Economic Development Zone, Suzhou, Jiangsu, China Email: service@dyness-tech.com Tel: +86 400 666 0655 Web: www.dyness.com Official Website Digital version access...
