TM

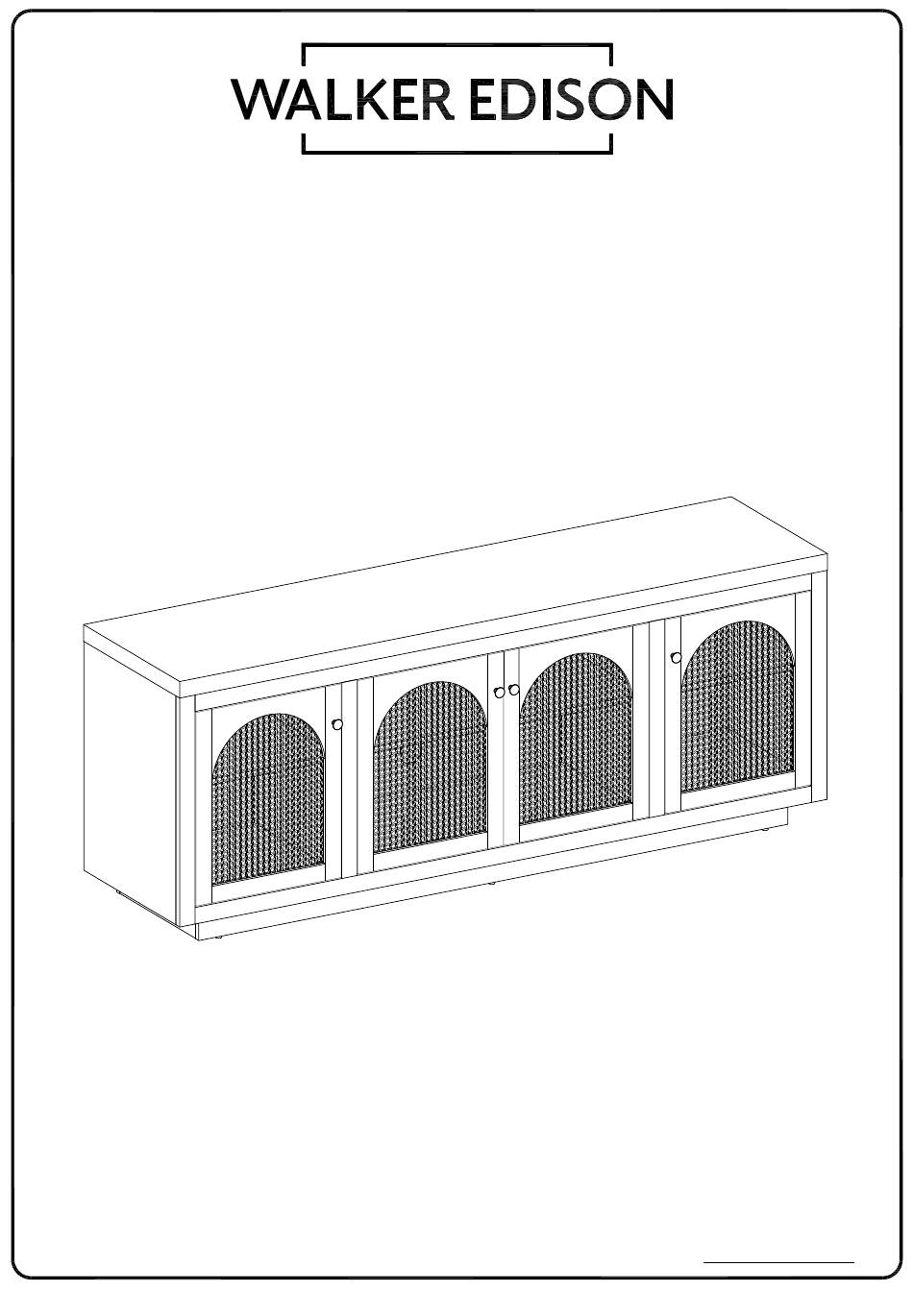

Sasha 70" Contemporary TV Stand
& Sideboard with Rattan Doors
SKU# WESAS21704
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Revised 30/12/2024 (F)
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
©
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison Sasha WESAS21704
Summary of Contents for Walker Edison Sasha WESAS21704
- Page 1 & Sideboard with Rattan Doors SKU# WESAS21704 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 30/12/2024 (F) Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.
-
Page 3: Parts List
Parts List Part Description Quantity Number Top Panel Bottom Frame Left Panel Right Panel Left Divider Panel Right Divider Panel Top Rail Back Panel Middle Adjustable Shelf Side Adjustable Shelf Long Apron Short Apron Left Door Right Door... -
Page 4: Hardware List
Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam Bolt 15x11mm Cam Lock 30mm Sticker 4x25mm Screw 4x50mm Screw 6x50mm Bolt Hex key 8x5x16mm Shelf Support Pin 26mm Hinge 3.5x14mm Screw 5/32"x25mm Bolt Ø26x22mm Handle... - Page 5 Hardware List Part Size Name Quantity Plastic Wedge 3x17mm Screw 4x25mm Screw 4x12mm Screw Plastic strap Wall Anchor Glue Tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
- Page 6 Step 1 Let’s get started! Insert the wooden dowels (A) into the Left Panel, Right Panel, Left Divider Panel and Right Divider Panel (3,4,5,6). Now, twist in the cam bolts (B) to the Left and Right Panels (3 & 4) with a Phillips head screwdriver. 1: The provided glue is to secure wood dowels in place.
- Page 7 Step 2 Insert those dowels (A) into the Bottom Frame (2) and the Top Rail (7).
- Page 8 Step 3 Screw in the cam bolts (B) to the Top Panel (1) and both Long Aprons (11).
- Page 9 Step 4 Using the hex key (H), secure the Left and Right Divider Panels (5 & 6) to the Bottom Frame (2) with bolts (G).
- Page 10 Step 5 Attach the Left Panel (3) to the Bottom Frame (2) and the Top Rail (7) using the cam locks (C). For added strength, pop in some screws (E). Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps.
- Page 11 Step 6 Repeat the previous step on the right side with the Right Panel (4).
- Page 12 Step 7 Unfold the Back Panel (8) and slide it gently into the grooves on the back of your furniture.
- Page 13 Step 8 Place the Top Panel (1) on top, making sure the cam bolts and dowels align perfectly. Lock it down with cam locks (C).
- Page 14 Step 9 Carefully turn the whole thing onto the Top Panel (1). Screw in cam bolts (B) to the Bottom Frame (2) and screws (F) into the Top Rail (7). To keep your product looking its best and scratch-free, try assembling it on a soft surface like carpet or a blanket.
- Page 15 Step 10 Secure the Short Aprons (12) to the Long Apron (11) with cam bolts (C).
- Page 16 Step 11 Attach the other Long Apron (11) to the Short Aprons (12) again with cam bolts (C). Plinth base is built!
- Page 17 Step 12 Place the plinth base you just built on the Bottom Frame (2) aligning with the cam bolts and secure with cam locks (C).
- Page 18 Step 13 Cover the cam locks with stickers (D).
- Page 19 Step 14 Carefully turn the whole thing upright. Insert the plastic wedges (P) into the edges of the back panels and secure them with screws (Q). Stability is key!
- Page 20 Step 15 Pop in the Shelf Support Pins (J), then place the shelves (9 & 10) into the case. Look at all that storage space! 9 OR 10...
- Page 21 Step 16 Attach the hinges (K) to the Doors (13 & 14) using screws (L). Then, add the handles (N) with the bolts (M).
- Page 22 Step 17 Secure the Left Door (13) to the case using screws (L). Adjusting The Cabinet Doors Adjust horizontal width Adjust depth position Adjust vertical height with this screw. by loosening the hinge arm via the screws in the mounting screw. mounting plate.
- Page 23 Step 18 Repeat Step 17 with the Right Door (14).
- Page 24 Step 19 Grab the tip kit and secure the plastic strap (T) to the Top Panel (1) using screws (S).
- Page 25 Step 20 Attach the other end of the plastic strap (T) to your wall with the wall anchor (U) and screw (R). No tipping over here— safe and secure! Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.
-
Page 26: Final Assembly
Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 27 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
