TM

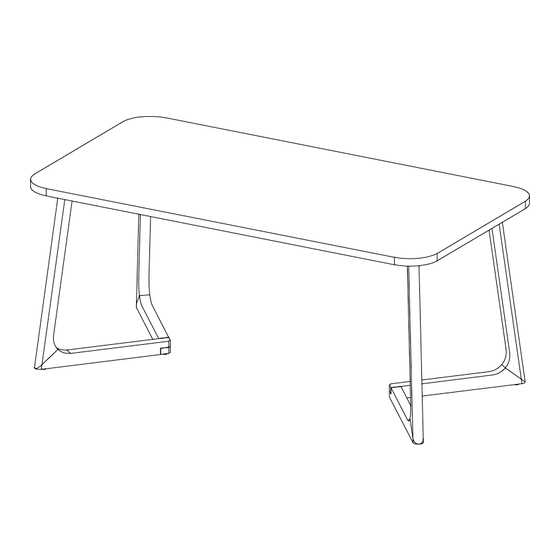

Ezra Rectangle Dining Table
SKU# WEEZR12704
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
Revised 13/06/2024 (F)
©
1
Advertisement
Related Manuals for Walker Edison Ezra WEEZR12704
Summary of Contents for Walker Edison Ezra WEEZR12704

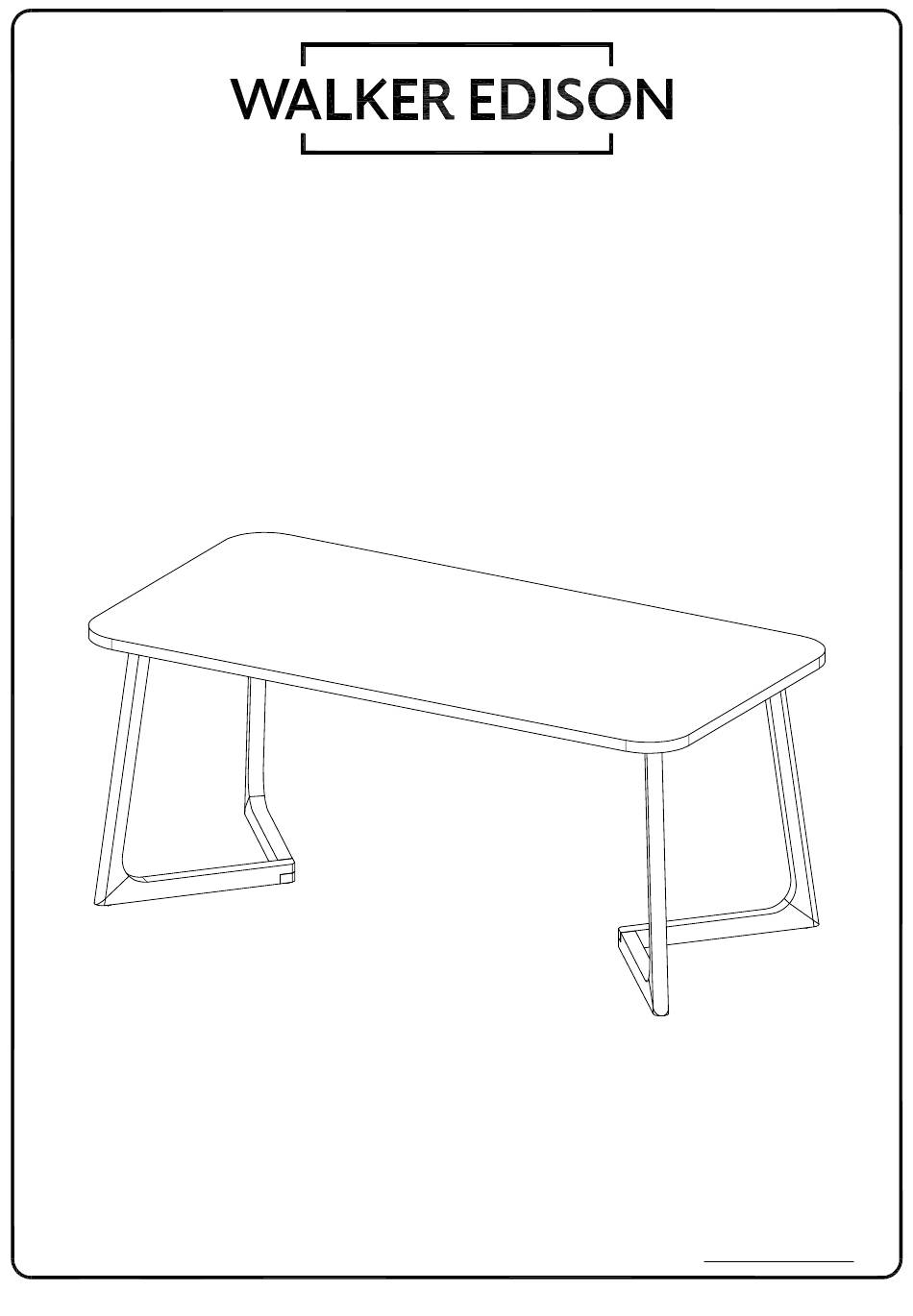

- Page 1 Ezra Rectangle Dining Table SKU# WEEZR12704 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 13/06/2024 (F) ©...
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’ warranty. Ezra Scan to get assembly tips and help!
-
Page 3: Parts List
Parts List Part Description Quantity Number Tabletop Upper Leg Lower Leg... -
Page 4: Hardware List
Hardware List Part Size Name Quantity Ø5/16"x45mm Bolt Ø5/16"x80mm Bolt Ø5/16" Lock washer Ø5/16"xØ22mm Washer Hex key The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included. - Page 5 Step 1 Let’s get started! Connect the Base Leg (3) to the Upper Leg (2) using a Bolt (A), Lock washer (C), and Washer (D). Repeat this for the other set of legs!
- Page 6 Step 2 Lie the Tabletop (1) face down. Connect the Leg frame (2) and (3) to the Tabletop (1) using the Bolt (B), Lock washer (C), and Washer (D).
- Page 7 Step 3 Now, repeat the process for the other side. Connect the Leg frame (2) and (3) to the Tabletop (1) using the Bolt (B), Lock washer (C), and Washer (D).
- Page 8 Step 4 Use the adjustable feet to ensure a level surface.
-
Page 9: Final Assembly
Final Assembly You did it! Enjoy your new table! Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 10 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
