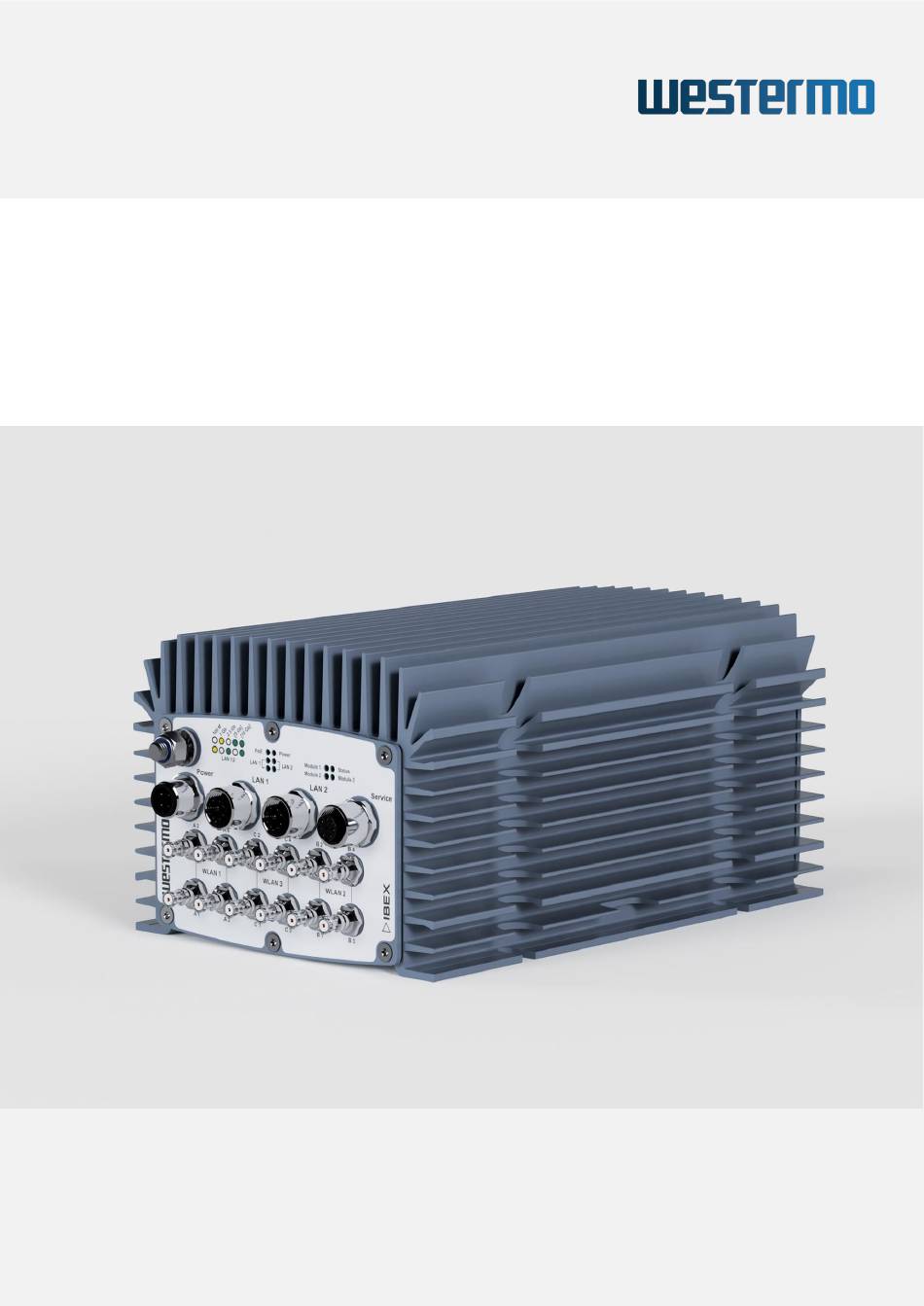

- Page 1 Ibex-4000 Series RAILWAY ACCESS POINT WITH WI-FI 6(E) TRIPLE RADIO INSTALLATION MANUAL Revision: 1.0 | Date: 21.03.2025...
-
Page 2: Safety Information
Westermo Eltec GmbH, regardless of how such acts are performed and what system is used (electronic, mechanic, photocopying, recording, etc.). All product and company names are registered trademarks of the respective companies. -
Page 3: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Westermo Eltec GmbH herewith declares that the device is compliant to the basic requirements of the directive 2014/53/EU. The full text of the EU declaration of... - Page 4 Ibex-4000 Series CONTACT Westermo Eltec GmbH Galileo-Galilei-Straße 11 55129 Mainz Germany +49 6131 918 100 Email info.eltec@westermo.com www.eltec.com www.westermo.com...
-
Page 5: Table Of Contents
Ibex-4000 Series CONTENTS ABOUT THIS DOCUMENT OVERVIEW Products HARDWARE Device Connectors 3.1.1 Power Supply Connectors 3.1.2 Ethernet Interfaces 3.1.3 Antenna Connectors Power Supply 3.2.1 Power Input 3.2.2 Power over Ethernet (PoE+, PoE++) M12 Service Interface Front Panel and Module-to-Antenna Connections 3.4.1 Assignment Front Panel Labelling –... - Page 6 Ibex-4000 Series LIST OF TABLES Table 1 Pin Assignment of Power Supply Connector (PWR) Table 2 Pin Assignment of M12 Ethernet Connectors (LAN1/2) Table 3 Pin Assignment of M12 Service Connector Table 4 Overview Front Panel Antenna Description Table 5...
- Page 7 Ibex-4000 Series LIST OF FIGURES Figure 1 Picture of Ibex-4000 Figure 2 Front Panel Overview Figure 3 Dimensions of the Ibex-4000 Housing Figure 4 Earth Cable Mounting on Earth Stud...
-
Page 8: About This Document
Ibex-4000 Series 1 ABOUT THIS DOCUMENT This installation manual is intended only for system developers and integrators; it is not intended for end users. It describes the hardware functions of the product, connection of peripheral devices and integration into a system. Additional information on special applications and the configuration of the product is available in a separate configuration manual which can be downloaded from the Download Center at www.eltec.com. -
Page 9: Overview
Ibex-4000 Series 2 OVERVIEW 2.1 PRODUCTS This installation manual comprises all information to set-up the following product. Figure 1 Picture of Ibex-4000... -
Page 10: Hardware
Pin Assignment of Power Supply Connector (PWR) 3.1.2 ETHERNET INTERFACES The two LAN-ports of the Ibex-4000 series are utilizing M12 X-coded connectors with the pin- assignment as shown in Table 2. Mating connectors are available from several manufacturers. SIGNAL NAME... -
Page 11: Antenna Connectors
Ibex-4000 Series 3.1.3 ANTENNA CONNECTORS The QLS antenna connectors are located at the bottom part of the front panel. The radio interface connectors are labeled as A1 to A4 for the first WLAN module, B1 to B4 for the second module, and C1 to C4 for the third module. -
Page 12: Power Supply
Ibex-4000 Series 3.2 POWER SUPPLY 3.2.1 POWER INPUT The Ibex-4000 can be powered by a DC power source connected to the internal power supply and I/O connector, shown in Table 1 . The nominal input voltage can vary between 24 V and 110 VDC. -
Page 13: Front Panel And Module-To-Antenna Connections
Ibex-4000 Series 3.4 FRONT PANEL AND MODULE-TO-ANTENNA CONNECTIONS The figure below provides an overview of the front panel. Figure 2 Front Panel Overview 3.4.1 ASSIGNMENT FRONT PANEL LABELLING – SOFTWARE The ports and LEDs “LAN 1” and “LAN 2” correspond respectively to the interfaces “eth0”... -
Page 14: Led Indicators
Ibex-4000 Series 3.5 LED INDICATORS The LEDs on the front panel of Ibex-4000 provide quick indication of the device status. 3.5.1 POWER LED LED COLOR STATE DESCRIPTION green Device is receiving correct input power Device is not powered Table 5 Power LED 3.5.2 STATUS LED... -
Page 15: Lan1 / Lan2 Led´s
Ibex-4000 Series 3.5.5 LAN1 / LAN2 LED´S LED COLOR STATE DESCRIPTION green static Indicates 10 Gbit Link established green green static Indicates 5 Gbit Link established static Indicates 2.5 Gbit Link established green yellow static Indicates 1 Gbit Link established... -
Page 16: Mounting
Ibex-4000 Series 4 MOUNTING This product uses convection cooling. Ensure it's installed within the specified ambient temperature range by avoiding airflow obstructions. Install it where natural airflow isn't blocked, with sufficient spacing. At high ambient temperatures, mount the product on a metallic base plate to improve heat dissipation by increasing the surface area. -
Page 17: Connecting An Earthing Cable
Ibex-4000 Series 4.1 CONNECTING AN EARTHING CABLE The M6 earthing stud on the front panel of the device (also refer to Figure 2) for protective earth connection is essential for the device security. Carry out the following steps to connect an earthing cable: Use an earthing cable with a cross-section of at least 2.5 mm²...
