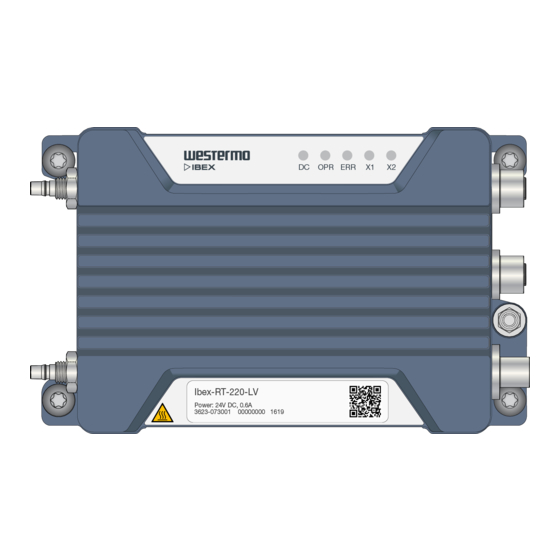

- Page 1 Ibex-RT-220 Series EN 50155 WLAN Client / Bridge / Access Point...
-
Page 2: Table Of Contents
4.5. Cooling ................19 4.6. Replacement of Product ............21 5. Specifications ................22 5.1. Interface Specifications ............22 5.2. Type Tests and Environmental Conditions ......... 25 6. Abbreviations and Terms ............... 27 7. Revision Notes ................29 Ibex-RT-220 Series... -
Page 3: General Information
Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety And Regulations
No personal injury Minor damage to the to avoid misuse of the product product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1. Warning levels Ibex-RT-220 Series... -
Page 5: Safety Information
The power supply wiring must be sufficiently fused. It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personnel. WARNING - POWER SUPPLY CONNECTION There are safety regulations governing the power source that can be used in conjunction with the product. -
Page 6: Care Recommendations
There may be a requirement on the minimum temperature rating of the cable to be connected to the field wiring terminals, see Interface Specifications. 2.3. Care Recommendations Follow the care recommendations below to maintain full operation of the product and to fulfill the warranty obligations: Ibex-RT-220 Series... -
Page 7: Product Disposal
If the product is not working properly, contact the place of purchase, the nearest Westermo distributor office or Westermo technical support. NOTE Devices not used shall be kept in the factory sealed moisture barrier bag. -
Page 8: Agency Approvals And Standards Compliance
To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this product and Ibex-RT-220 Series... -
Page 9: United States - Arema
L’exploitation est autorisée aux deux conditions suivantes: • l’appareil ne doit pas produire de brouillage. • l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Ibex-RT-220 Series... -
Page 10: Simplified Declaration Of Conformity
This product contains the IC Certification number 9301A-103902DT50. 2.5.5. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives and UK legislations. The full declaration of conformity and other detailed information is available at www.westermo.com/support/product-support. -
Page 11: Product Description
Figure 3. Ibex-RT-220-LV/Ibex-RT-220-HV block diagram The Westermo configuration management tool, WeConfig, can be used for discovery and basic configuration and maintenance. The configuration can be done via SNMP or via WebGUI. The status information is available in local LED status indicators, and through SNMP/WebGUI. -
Page 12: Available Models
Power input DC Front side label Warning symbol for surface temperatures above +60°C Antenna ports A1 and A2 Table 3. Location of interface ports and LED indicators 3.3.2. Front Side Label Ibex-RT-xxx-xx EU Power: 24VDC, 0.6A 3623-075001 00001089 2012 Ibex-RT-220 Series... -
Page 13: Rear Side Label
Default IP: 192.168.1.20 Type: Ibex-RT-xxx-xx EU IP66 Art. No: xxx-xxxxxx NPN: xxxxxx Max current: 0.6A Power: 24VDC (±30%) Westermo Neratec AG Country of origin: Switzerland Postfach 83, CH-8608 Bubikon Figure 4. Rear side label content 3.3.4. Interface Ports View Ibex-RT-220 Series... -
Page 14: Connector Information
Mbit/s and 100 Mbit/s operation. Automatic MDI/MDIX crossover is supported for 10BASE-T, 100BASE-T operation. Marking Position Direction Description X1/X2 In/Out In/Out In/Out DA-+ In/Out Housing Shield Chassis of product (ground) Table 7. M12 D-coded 4-pin female Ethernet connector according to IEC 61076-2-101 Ibex-RT-220 Series... -
Page 15: Antenna Ports
Any unused antenna ports must be properly terminated with 50 Ohm, otherwise the product might be damaged when power is applied to a non- terminated antenna port. NOTE To ensure specified IP protection, suitable QMA connectors/cables and terminations must be used. Ibex-RT-220 Series... -
Page 16: Led Indicators
Operation status Error status Ethernet status for X1 port Ethernet status for X2 port Table 9. LED indicators NOTE Refer to management guide for detailed LED status indication. 3.6. Dimensions Dimensions are stated in mm and are regardless variants. Ibex-RT-220 Series... - Page 17 Figure 6. Dimensional drawing Ibex-RT-220 Series...
-
Page 18: Installation
To reset the product into factory default settings, a reset adapter is needed which is plugged into one of the Ethernet ports X1 or X2 during startup. Art. no. Description 3623-0799 Factory Reset Plug, X-coded Factory reset procedure 1. Plug the factory reset adapter to one of the Ethernet interfaces. Ibex-RT-220 Series... -
Page 19: Earth Connection
4.5. Cooling This product uses convection cooling. Make sure that it is installed so that the ambient temperature is within the specified temperature range, e.g. by avoiding obstruction of the airflow around the product. Ibex-RT-220 Series... - Page 20 When operating the product at high ambient temperatures, it is recommended to mount the product to a metallic base plate to improve the heat dissipation. The base plate increases the surface to spread the heat. Figure 10. Improved heat transfer based on fixing plate and natural convection Ibex-RT-220 Series...
-
Page 21: Replacement Of Product
Be aware that the surface of this product may become hot. When it is operated at high temperatures, the external surface may exceed Touch Temperature Limit according to the product's relevant electrical safety standard. This product complies with Touch Temperature Limits throughout its operational temperature range. Ibex-RT-220 Series... -
Page 22: Specifications
Not required Recommended external supply current capability for proper startup PoE (PoE powered product - Ibex-RT-220-LV only on X2) Connector M12 D-coded female Device mode Rated voltage 48 VDC Operating voltage 37 to 57 VDC Power classification Class 3 Ibex-RT-220 Series... - Page 23 Max. conducted transmit power within the whole frequency range: 802.11b/g/n, up to +18 dBm for all data rates 802.11a/n, up to +18 dBm for all data rates NOTICE Depending on the installation country there are frequency/band restrictions and output power limitations. Ibex-RT-220 Series...
- Page 24 NOTICE Unused antenna port must be terminated with 50 Ohm terminations. NOTICE To avoid damages on the antenna interfaces, ensure that the far end side of the antenna cable and/or the antenna itself is connected to protective earth. Ibex-RT-220 Series...
-
Page 25: Type Tests And Environmental Conditions
EN 50155 Power port (DC) > 100 MOhm to all other ports Dielectric strength EN 50155 Power port (DC) Ibex-RT-220-LV: 750 VDC, 60 s to all other ports Ibex-RT-220-HV: 2250 VDC, 60 s Table 10. EMC and electrical conditions Ibex-RT-220 Series... - Page 26 The power and Ethernet cables need to be fastened 200 mm or closer to the unit. The same recommendation applies to the Antenna cables. Provided all connectors are connected with IP66 cabling or fitted with protective caps (delivered with the unit) and tightened to the specified torque Table 11. Environmental and mechanical conditions Ibex-RT-220 Series...
-
Page 27: Abbreviations And Terms
Ingress Protection International Standardization Organisation Local Area Network Light Emitting Diode Low Voltage MIMO Multiple Input, Multiple Output MTBF Mean Time between Failure MTTR Mean Time to Repair Operation Pulse Modulated Power over Ethernet Quick-connect RF Connectors Quick Response Ibex-RT-220 Series... - Page 28 Telephone Network Voltage Serial Number SNMP Simple Network Management Protocol Virtual Private Network WebGUI Web Graphical User Interface WeConfig Westermo Configuration Tool WEEE Waste Electrical and Electronics Equipment WLAN Wireless Local Area Network Table 12. Abbreviations and terms Ibex-RT-220 Series...
-
Page 29: Revision Notes
3.5 Led Indicatiors; illustration added, 4.2 Factory Reset moved from old chapter 3.6, 4,5 Cooling; illustrations updated. Rev. B 2021-04 Product illustrations updated to blue, text in illustrations removed, Westermo address updated, chapter 2.5.5 updated Rev. A 2019-11 First revision Ibex-RT-220 Series... - Page 30 Westermo • Metallverksgatan 6, SE-721 30 Västerås, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com 6623-2240 REV. C 2021 10 Westermo Network Technologies AB, Sweden...
