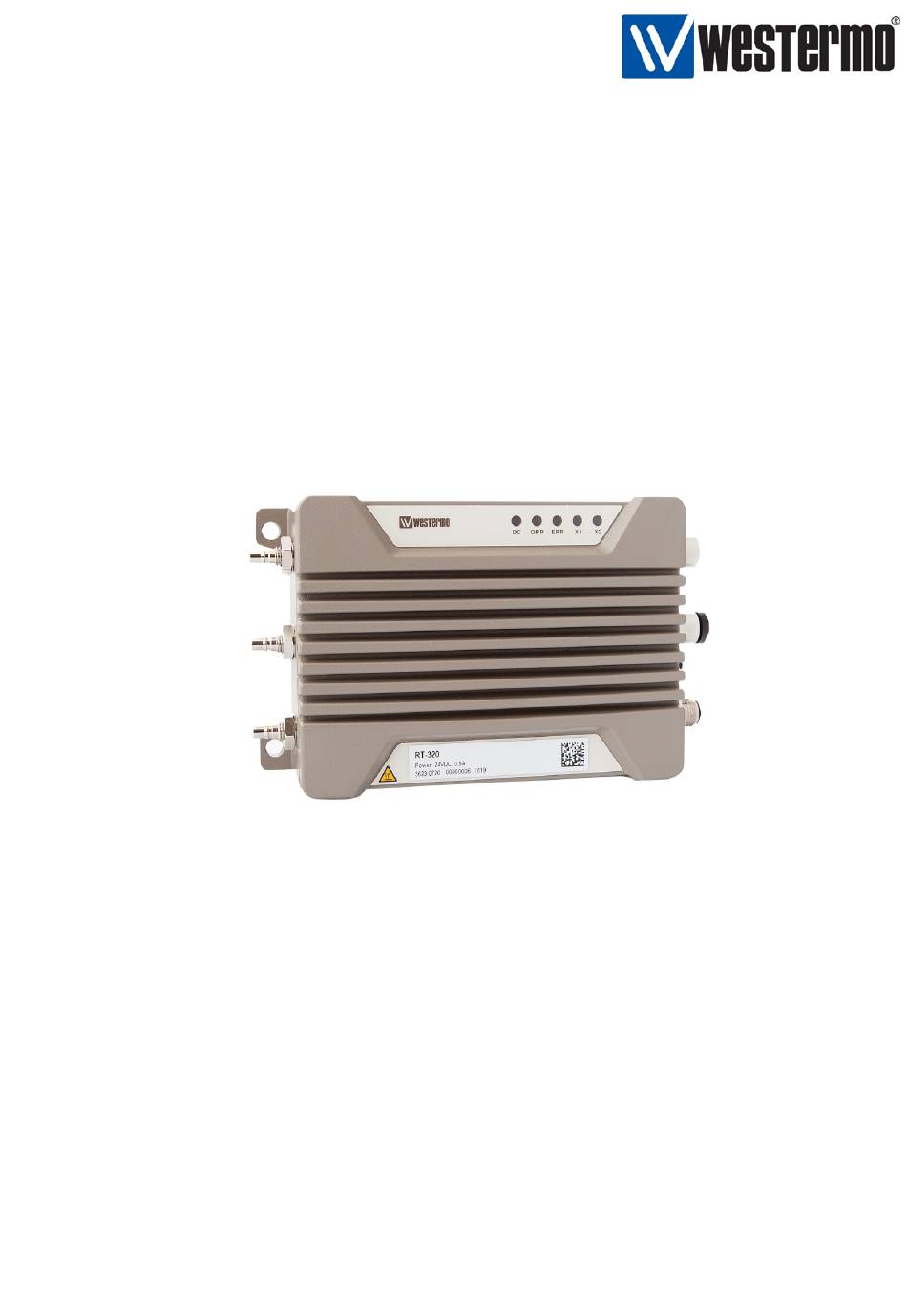

- Page 1 RT-310 / RT-320 User Guide REV. B 6623-2270 2018-05 Westermo Teleindustri AB, Sweden...
- Page 2 RT-310 / RT-320 User Guide Version History Version Date Comments 2018-03 First version 2018-05 Table 1 Dimensions and weight updated License and copyright for included Free/Libre Open Source Software This product includes software developed by third parties, including Free/Libre Open Source Software (FLOSS).
-
Page 3: Table Of Contents
1 Foreword ................................. 5 1.1 References ..............................5 1.2 Abbreviations and Terms........................... 5 2 RT-310 / RT-320 Introduction ......................... 6 2.1 Supported Product Versions, Variants and SW ..................7 2.2 Important Safety Notes ..........................8 2.3 RT-320 Delivery Content ........................... 9 2.4 RT-310 Delivery Content ........................... - Page 4 RT-310 / RT-320 User Guide Figures and Tables Figure 1 RT-320 Picture ............................. 6 Figure 2 RT-310 / RT-320 Block diagram........................6 Figure 3 RT-320 Product identification label position ....................12 Figure 4 RT-320 Product identification label example ....................12 Figure 5 RT-320 Product label example ........................
-
Page 5: Foreword
RT-310 / RT-320 User Guide 1 Foreword This document describes the installation procedure of the RT-310 and RT-320 devices. 1.1 References Title Software Management Guide RT-320 Datasheet RT-310 Datasheet 1.2 Abbreviations and Terms Abbreviation Description Access Point BSSID Basic Service Set ID... -
Page 6: Rt-310 / Rt-320 Introduction
2 RT-310 / RT-320 Introduction The RT-310 / RT-320 is a wireless communication product, developed for demanding industrial and railway applications. It is a radio device operating at 2.4 and 5 GHz WLAN bands, and configured either as Access Point or Station. -
Page 7: Supported Product Versions, Variants And Sw
RT-310 / RT-320 User Guide 2.1 Supported Product Versions, Variants and SW Supported product versions, variants and SW: Specification Value Notes Product Versions/ Variants RT-320 RT-310 Limited operating modes and output power in comparison to RT-320, please refer to product datasheet for... -
Page 8: Important Safety Notes
RT-310 / RT-320 User Guide 2.2 Important Safety Notes Danger! Do not use damaged equipment and/or accessories such as damaged power cord. Danger! Never try to open the device. There are no serviceable parts inside. Warning! Product warranty gets void and any liability will be disclaimed when opening the device. -
Page 9: Rt-320 Delivery Content
1 plastic protection cap for power connector • 3 plastic protection caps for antenna connectors Table 4 RT-320 delivery content 2.4 RT-310 Delivery Content The RT-310 delivery consists of following main components: Description Number of Parts Notes RT-310 Connector Dust Cap Temporary protection of connectors: •... -
Page 10: Installation Countries
RT-310 / RT-320 User Guide 2.5 Installation Countries Installation country regulatory limits and operating parameters are controlled by Software Country Code parameter. This product supports: Country Code Operating Frequency Ranges Notes Europe (EU) 2412 … 2472 MHz and Operation according to ETSI limitations 5180 …... -
Page 11: Canada (Ic)
1, 2 Table 7: FCC and IC certified antennas 2.7 Output power limitations The RT-310 and RT-320 have following output power limitations for ambient temperatures from -40°C to +70°C. Active antennas Max. output power with DC supply Max. output power with PoE supply... -
Page 12: Product Identification And Version Information
RT-310 / RT-320 User Guide 2.8 Product Identification and Version Information Product identification information is available at the product label. The product label is fixed to the device. Figure 3 RT-320 Product identification label position Figure 4 RT-320 Product identification label example... -
Page 13: Figure 5 Rt-320 Product Label Example
RT-310 / RT-320 User Guide At the rear side of the product further product specific information is printed to a second label. Figure 5 RT-320 Product label example Specification Value Notes Or respectively RT-310 Product Name RT-320 Part Number 3623-0720... -
Page 14: Technical Features
RT-310 / RT-320 User Guide 3 Technical Features Technical features are described in reference documents [2] and [3]. 4 Installation 4.1 Installation Procedure, Overview Order of Installation Step Description 1. Fixing The product is fixed in operating environment, ensuring that the environment complies with the installation environment constrains. -
Page 15: Dimensions For Fixing Points
RT-310 / RT-320 User Guide 4.2 Dimensions for Fixing Points 4.2.1 Mechanical Overview Figure 6 Mechanical overview Page 15 (30) - Page 16 RT-310 / RT-320 User Guide Parameter Value Notes Maximum dimensions 176 x 110 x 52 mm Length with antenna connectors 180mm App 300 x 110 x 52 mm Space needed for installation Maximum dimensions, with cables but not including antennas...
-
Page 17: Mechanical Integration, Fixing Points And Connector Positions
RT-310 / RT-320 User Guide 4.2.2 Mechanical Integration, Fixing Points and Connector Positions The product must be fixed with the four fixing points located at the corners of the product. M6 screws shall be used for the fixation of the product. The screws shall be tightened with min. 3.0 Nm (fixing screw ISO 898/1, quality class 8.8). -
Page 18: Considerations When Mounting The Device
RT-310 / RT-320 User Guide 4.3 Considerations When Mounting the Device 4.3.1 General Installation Considerations When planning an installation at least the following points shall be considered: • Indoor: protecting for dust (to ensure heat dissipation), vandalism, animals (rats, birds etc) •... -
Page 19: Installations At Very High Temperatures
RT-310 / RT-320 User Guide 4.3.4 Installations at Very High Temperatures For installations, where the product is operated close to its maximum specified ambient temperature (+55°C <TAmbient < +70°C), it must be ensured that the natural convection is not blocked by objects close to the product. -
Page 20: Figure 10 Improved Heat Transfer Based On Fixing Plate
RT-310 / RT-320 User Guide When operating the device at ambient temperatures above app. +60C it is recommended to mount the device to a metallic base plate to improve the heat dissipation. The base plate increases the surface to spread the heat. -
Page 21: Connecting The System Grounding
RT-310 / RT-320 User Guide 4.4 Connecting the System Grounding There is a single grounding connection point in RT-310/ RT-320. An M5 grounding screw at the housing is used for grounding (see Figure 11). NOTICE: The grounding is organized by connecting the grounding to the ground contact in the casing. For the grounding at the ground contact (M5 stud), a short wire with a cross section of at least 6.0 mm... -
Page 22: Rf Antenna Connectors
RT-310 / RT-320 User Guide 4.5.2 RF Antenna Connectors The antenna connectors are identified with the text markings A1 (Antenna 1), A2 (Antenna 2) and A3 (Antenna 3) in the mechanics. The antennas might be fixed in antenna connectors directly or using antenna cables fixed to the antenna connectors. -
Page 23: Connecting Ethernet Interface
RT-310 / RT-320 User Guide 4.6 Connecting Ethernet Interface RT-310/RT-320 has two Ethernet interfaces. M12 industrial standard connector with keying is used. The Ethernet connectors are identified with the text markings ETH1 (Ethernet 1) and ETH2 (Ethernet 2) in the mechanics. -
Page 24: Ethernet Connector
RT-310 / RT-320 User Guide 4.6.2 Ethernet Connector Connector Pin Signal name, Function Notes MX1 + Connector Type: Industrial ETHERNET M12-Socket “X”-coded MX1 - MX2 + MX2 - MX4 + MX4 - MX3 - MX3 + Housing Ground For possible cable protection/screening Table 17 Ethernet connector NOTICE: The pinning is compliant to IONA, Industrial Ethernet Planning and Installation Guide, Release 4.0. -
Page 25: Connecting The Power Feed
RT-310 / RT-320 User Guide 4.7 Connecting the Power Feed The power feed is connected to the POWER connector. The power supply interface is a galvanically isolated interface; it is protected against surge and ESD. The power connector is keyed ensuring correct connector position. -
Page 26: Power Consumption Examples
RT-310 / RT-320 User Guide 4.7.3 Power Consumption Examples The power consumption is dependent on the operational parameters, like RF output power, amount of routed traffic and the RX duty cycle. Test case Antennas TX duty cycle TX output Amb. Temp. -
Page 27: Configuration And Use
RT-310 / RT-320 User Guide 5 Configuration and Use The operation parameters in configuration files define the functionality. The complete configuration process is described in reference document [1]. 5.1 LED Indicators During Power Up Sequence LED behavior during power-up sequence is described in reference document [1] in the chapter Status Indication. -
Page 28: Factory Reset Procedure
RT-310 / RT-320 User Guide 5.2.2 Factory Reset Procedure The Factory Reset is performed with a factory reset adapter that is connected to one of the Ethernet ports during the start-up. Step Description Plug the factory reset adapter to one of the Ethernet interfaces. -
Page 29: Maintenance
6.1 Cleaning– Resistance to Chemicals In case the product is cleaned with cleaning chemicals, the resistance to chemicals of the plastic parts needs to be respected. The following plastic materials are used in the RT-310/ RT-320: Ethernet Connector Dust Cap... -
Page 30: Troubleshooting Based On Functional Behavior
RT-310 / RT-320 User Guide 6.2 Troubleshooting Based on Functional Behavior Please read the troubleshooting instructions in reference document [1]. 6.3 Repair Work This product is exchanged as a whole unit. On product level no repair work is done in the field. Broken units need to be returned to the supplier for repair.
