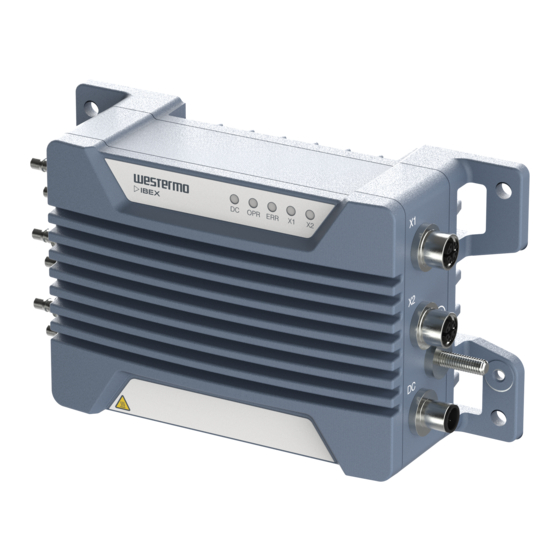

Table of Contents 1. General Information ................ 3 1.1. Legal Information ..............3 1.2. About This Guide ..............3 1.3. Software Tools ..............3 1.4. License and Copyright for Included FLOSS ......... 3 2. Safety and Regulations ..............4 2.1. Warning Levels ..............4 2.2.
Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
2. Safety and Regulations 2.1. Warning Levels Warning signs are provided to prevent personal injuries and/or damages to the product. The following levels are used: Level of warning Description Consequence Consequence personal injury material damage Indicates a potentially Possible death or major Major damage to the hazardous situation injury...
During installation, ensure a protective earthing conductor is first connected to the protective earthing terminal (only valid for metallic housings). Westermo recommends a cross-sectional area of at least 4 Upon removal of the product, ensure that the protective earthing conductor is disconnected last.
WARNING - RADIO PRODUCTS Observe the usage limitations of radio products at filling stations, in chemical plants, in systems with explosives or potentially explosive locations. The product may not be used in airplanes. Exercise particular caution near personal medical aids, such as pacemakers and hearing aids. Never perform work on the antenna system during a thunderstorm.
If the product is not working properly, contact the place of purchase, the nearest Westermo distributor office or Westermo technical support. NOTE Devices not used shall be kept in the factory sealed moisture barrier bag.
2.5.1. Agency Approvals and Standards Compliance Approvals and Standards Climate • EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock • EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signalling and telecommunications •...
persons during operation. To ensure compliance, operations at closer distances than this are not recommended. This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This product contains the IC Certification numbers 7849A-WLE600VX and 7849AWLE1216V520. 2.5.5. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives and UK legislations. The full declaration of conformity and other detailed information is available at www.westermo.com/support/product-support.
Figure 3. Ibex-RT-610-LV/Ibex-RT-610-HV block diagram The Westermo configuration management tool, WeConfig, can be used for discovery and basic configuration and maintenance. The configuration can be done via SNMP or via WebGUI. The status information is available in local LED status indicators, and through SNMP/WebGUI.
3.2. Available models Art. no. Model Region PoE Port Rated current 3623-073001 Ibex-RT-610-LV EU Europe 24 VDC 3623-073002 Ibex-RT-610-LV NA North America 24 VDC 3623-073101 Ibex-RT-610-HV EU Europe 72-110 VDC 3623-073102 Ibex-RT-610-HV NA North America 72-110 VDC Table 2. List of available models 3.3.
Description Description Antennas 1000Base-T Grounding point Power Table 5. Interface ports view 3.4. Connector Information 3.4.1. Power Input Connection Marking Position Direction Description Positive terminal Negative terminal Housing Shield Chassis of product (ground) Table 6. M12 A-coded 4-pin male power connector according to IEC 61076-2-101 NOTE If the product is powered by PoE, the protective dust cap which is part of the delivery must be closed to protect the power interface from water or...
Marking Position Direction Description X1/X2 In/Out In/Out In/Out In/Out In/Out In/Out In/Out In/Out Housing Shield Chassis of product (ground) Table 7. M12 X-coded 8-pin female Ethernet connector according to IEC 61076-2-109 Position Device mode A Device mode B Table 8. Ethernet PoE connection on X2 (LV-model only) NOTE PoE is supported on X2 for the LV product variant only.
A1 to A4 are used for WLAN Wave 2 communication at 5 GHz. At least A1 must be connected to an external WLAN antenna if Wave 2 module is used. The antenna configuration is made through the software interface. B1 and B2 are used for WLAN Wave 1 communication at 2.4 GHz/5 GHz. At least B1 must be connected to an external WLAN antenna if Wave 1 module is used.
4. Installation 4.1. Mounting The product is fixed with the four fixing points located at the corners of the product. M5 or M6 screws are used for the fixation of the product. The screws are tightened with min. 3.0 Nm (fixing screw ISO 898/1, quality class 8.8). NOTICE All four specified fixing points must be used for fixing.
2. Power the product. 3. Wait until factory reset adapter is detected. This is indicated by solid ORANGE OPR LED and RED ERR LED. 4. Remove factory reset adapter within 15 seconds. 5. Successful initiation of the factory reset is indicated by blinking ORANGE OPR LED and RED ERR LED.
4.5. Cooling This product uses convection cooling. Make sure that it is installed so that the ambient temperature is within the specified temperature range, e.g. by avoiding obstruction of the airflow around the product. It is recommended to install the product in areas where the natural convection airflow is not blocked and that there is enough spacing around the product.
NOTICE Limited air flow is rising the product temperature and may lower the upper limit of the operating temperature range. NOTICE Temperature is dependent on the operational parameters, like RF output power, amount of traffic. NOTICE This product has integrated temperature sensors for monitoring the internal device temperatures.
5. Specifications 5.1. Interface Specifications DC, Power port Ibex-RT-610-LV: Ibex-RT-610-HV: Connector M12 A-coded male Rated voltage 24 VDC, Class III 72 to 110 VDC, Class 1 Operating voltage 16 to 30 VDC 50 to 138 VDC Rated current 0.6 A 0.2 A Rated frequency Inrush current...
Page 23
Ethernet TX Connector M12 X-coded female Electrical specification IEEE std 802.3 Data rate 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, manual or auto Duplex Full or half, manual or auto Transmission range Up to 100 m with CAT5e cable or better Cabling Shielded cable CAT5e or better is recommended Conductive chassis...
Page 24
NOTICE Unused antenna port must be terminated with 50 Ohm terminations. NOTICE To avoid damages on the antenna interfaces, ensure that the far end side of the antenna cable and/or the antenna itself is connected to protective earth. Ibex-RT-610 Series...
5.2. Type Tests and Environmental Conditions Environmental Basic Description Test levels phenomena standard EN 61000-4-2 Enclosure Contact: ±6 kV Air: ±8 kV Fast transients EN 61000-4-4 DC power port ± 4 kV, direct coupling Ethernet ports ± 4 kV, capacitive coupling clamp Antenna ports L-E: ±...
Page 26
Environmental Basic Description Test levels phenomena standard Temperatures EN 60068-2-1 Operational -40 to +70°C (-40 to +158°F) EN 60068-2-2 Storage and -55 to +85°C (-67 to +185°F) EN 60068-2-14 transport Humidity EN 60068-2-30 Operational 5-95% relative humidity Storage and transport Altitude Operational 2000 m...
6. Abbreviations and Terms Abbreviation Description Amplitude Modulation AREMA American Railway Engineering and Maintenance-of-Way Association American Wire Gauge BPSK Binary Phase Shift Keying CAT5e Category 5 Enhanced Cable Conformité Européenne Central Processing Unit Direct Current Electromagnetic Compatibility European Standard Error Electro Static Discharge ETSI European Telecommunications Standards Institute...
Page 28
Quick Response Radio Frequency Telephone Network Voltage Serial Number SNMP Simple Network Management Protocol WebGUI Web Graphical User Interface WeConfig Westermo Configuration Tool WEEE Waste Electrical and Electronics Equipment WLAN Wireless Local Area Network Table 12. Abbreviations and terms Ibex-RT-610 Series...
7. Revision Notes Revision Date Change description Rev. D 2021-10 (User guide migrated to CMS tool), 2.2 Safety Information; information on cooling moved to chapter 4.5 Cooling, 2.5.1 Agency Approvals and Standards Compliance updated, 3.3.2 Front Side Label; callouts reversed order, 3.5 Led Indicatiors;...
