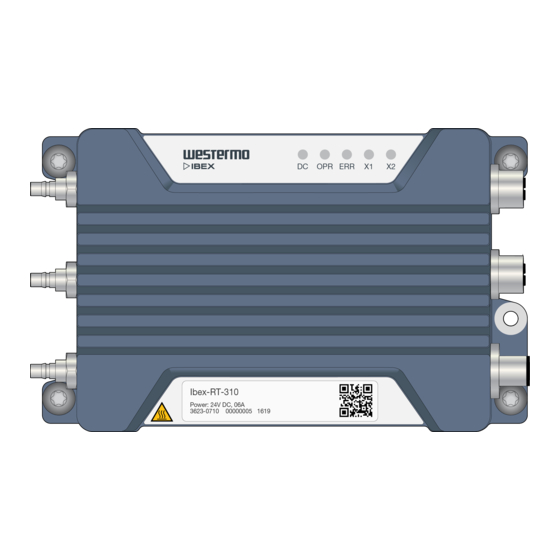

- Page 1 www.wester mo.com Ibex-RT-310 and -320 Series EN 50155 WLAN Client / Bridge / Access Point...
-
Page 2: Table Of Contents
Table of Contents 1. General Information ................ 4 1.1. Legal Information ..............4 1.2. About This Guide ..............4 1.3. Software Tools ..............4 1.4. License and Copyright for Included FLOSS ......... 4 2. Safety and Regulations ..............5 2.1. Warning Levels ..............5 2.2. - Page 3 7. Revision Notes ................30 Ibex-RT-310 and -320 Series...
-
Page 4: General Information
Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 5: Safety And Regulations
2. Safety and Regulations 2.1. Warning Levels Warning signs are provided to prevent personal injuries and/or damages to the product. The following levels are used: Level of warning Description Consequence Consequence personal injury material damage Indicates a potentially Possible death or major Major damage to the hazardous situation injury... -
Page 6: Safety Information
The power supply wiring must be sufficiently fused. It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personnel. WARNING - POWER SUPPLY CONNECTION There are safety regulations governing the power source that can be used in conjunction with the product. -
Page 7: Care Recommendations
WARNING - RADIO PRODUCTS Observe the usage limitations of radio products at filling stations, in chemical plants, in systems with explosives or potentially explosive locations. The product may not be used in airplanes. Exercise particular caution near personal medical aids, such as pacemakers and hearing aids. Never perform work on the antenna system during a thunderstorm. -
Page 8: Product Disposal
If the product is not working properly, contact the place of purchase, the nearest Westermo distributor office or Westermo technical support. NOTE Devices not used shall be kept in the factory sealed moisture barrier bag. -
Page 9: Agency Approvals And Standards Compliance
2.5.1. Agency Approvals and Standards Compliance Approvals and Standards Climate • EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock • EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signalling and telecommunications •... -
Page 10: United States - Arema
persons during operation. To ensure compliance, operations at closer distances than this are not recommended. This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 11: Certified Antennas For Fcc And Ic
Table 2. Certified antennas for FCC and IC 2.5.6. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives and UK legislations. The full declaration of conformity and other detailed information is available at www.westermo.com/support/product-support. -
Page 12: Product Description
GHz frequency bands. Figure 3. Ibex-RT-330 block diagram The Westermo configuration management tool, WeConfig, can be used for discovery and basic configuration and maintenance. The configuration can be done via SNMP or via WebGUI. The status information is available in local LED status indicators, and through SNMP/WebGUI. -
Page 13: Available Models
3.2. Available models Art. no. Model Region PoE Port Rated current 3623-071001 Ibex-RT-310-LV EU Europe 24 VDC 3623-071002 Ibex-RT-310-LV NA North America 24 VDC 3623-072001 Ibex-RT-320-LV EU Europe 24 VDC 3623-072002 Ibex-RT-320-LV NA North America 24 VDC 3623-072101 Ibex-RT-320-HV EU Europe 72-110 VDC 3623-072102... -
Page 14: Front Side Label
Type: Ibex-RT-xxx-xx EU IP66 Art. No: xxx-xxxxxx NPN: xxxxxx Max current: 0.6A Power: 24VDC (±30%) Westermo Neratec AG Country of origin: Switzerland Postfach 83, CH-8608 Bubikon Figure 4. Rear side label content 3.3.4. Interface Ports View Ibex-RT-310 and -320 Series... -
Page 15: Connector Information
Description Description Antennas 1000Base-T Grounding point Power Table 6. Interface ports view 3.4. Connector Information 3.4.1. Power Input Connection Marking Position Direction Description Positive terminal Negative terminal Housing Shield Chassis of product (ground) Table 7. M12 A-coded 4-pin male power connector according to IEC 61076-2-101 NOTE If the product is powered by PoE, the protective dust cap which is part of the delivery must be closed to protect the power interface from water or... -
Page 16: Ethernet Ports
3.4.2. Ethernet Ports The product includes two Ethernet ports X1 and X2 which supports auto-negotiated 10 Mbit/s, 100 Mbit/s and 1000 Mbit/s operation. Automatic MDI/MDIX crossover is supported for 10BASE-T, 100BASE-T, 1000BASE-T operation. Marking Position Direction Description X1/X2 In/Out In/Out In/Out In/Out In/Out... -
Page 17: Antenna Ports
3.4.3. Antenna Ports The antenna connectors are identified on the product with A1 to A3. QMA industrial standard connector is used. A1 to A3 are used for WLAN communication. At least A1 must be connected to an external WLAN antenna. The antenna configuration is made through the software interface. - Page 18 Figure 6. Dimensional drawing Ibex-RT-310 and -320 Series...
-
Page 19: Installation
4. Installation 4.1. Mounting The product is fixed with the four fixing points located at the corners of the product. M5 or M6 screws are used for the fixation of the product. The screws are tightened with min. 3.0 Nm (fixing screw ISO 898/1, quality class 8.8). NOTICE All four specified fixing points must be used for fixing. -
Page 20: Earth Connection
2. Power the product. 3. Wait until factory reset adapter is detected. This is indicated by solid ORANGE OPR LED and RED ERR LED. 4. Remove factory reset adapter within 15 seconds. 5. Successful initiation of the factory reset is indicated by blinking ORANGE OPR LED and RED ERR LED. -
Page 21: Cooling
4.5. Cooling This product uses convection cooling. Make sure that it is installed so that the ambient temperature is within the specified temperature range, e.g. by avoiding obstruction of the airflow around the product. It is recommended to install the product in areas where the natural convection airflow is not blocked and that there is enough spacing around the product. -
Page 22: Replacement Of Product
NOTICE Limited air flow is rising the product temperature and may lower the upper limit of the operating temperature range. NOTICE Temperature is dependent on the operational parameters, like RF output power, amount of traffic. NOTICE This product has integrated temperature sensors for monitoring the internal device temperatures. -
Page 23: Specifications
5. Specifications 5.1. Interface Specifications DC, Power port Ibex-RT-310-LV and Ibex-RT-320- Ibex-RT-320-HV: Connector M12 A-coded male Rated voltage 24 VDC 72 to 110 VDC Operating voltage 16 to 30 VDC 50 to 138 VDC Rated current 0.6 A 0.2 A Rated frequency Inrush current 39 mA... - Page 24 Ethernet TX Connector M12 X-coded female Electrical specification IEEE std 802.3 Data rate 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, manual or auto Duplex Full or half, manual or auto Transmission range Up to 100 m with CAT5e cable or better Cabling Shielded cable CAT5e or better is recommended Conductive chassis...
- Page 25 NOTICE Unused antenna port must be terminated with 50 Ohm terminations. NOTICE To avoid damages on the antenna interfaces, ensure that the far end side of the antenna cable and/or the antenna itself is connected to protective earth. Ibex-RT-310 and -320 Series...
-
Page 26: Type Tests And Environmental Conditions
5.2. Type Tests and Environmental Conditions Environmental Basic Description Test levels phenomena standard EN 61000-4-2 Enclosure Contact: ±6 kV Air: ±8 kV Fast transients EN 61000-4-4 DC power port ± 2 kV, direct coupling Ethernet ports ± 2 kV, capacitive coupling clamp Antenna ports L-E: ±... - Page 27 Environmental Basic Description Test levels phenomena standard Temperatures EN 60068-2-1 Operational -40 to +70°C (-40 to +158°F) EN 60068-2-2 Storage and -55 to +85°C (-67 to +185°F) EN 60068-2-14 transport Humidity EN 60068-2-30 Operational 5-95% relative humidity Storage and transport Altitude Operational 3000 m...
-
Page 28: Abbreviations And Terms
6. Abbreviations and Terms Abbreviation Description Amplitude Modulation AREMA American Railway Engineering and Maintenance-of-Way Association American Wire Gauge BPSK Binary Phase Shift Keying CAT5e Category 5 Enhanced Cable Conformité Européenne Central Processing Unit Direct Current Electromagnetic Compatibility European Standard Error Electro Static Discharge ETSI European Telecommunications Standards Institute... - Page 29 Telephone Network Voltage Serial Number SNMP Simple Network Management Protocol Virtual Private Network WebGUI Web Graphical User Interface WeConfig Westermo Configuration Tool WEEE Waste Electrical and Electronics Equipment WLAN Wireless Local Area Network Table 13. Abbreviations and terms Ibex-RT-310 and -320 Series...
- Page 30 Regulatory statements updated for public safety band in chapter 2.5.2, 2.5.4, 2.5.5 and table 13. Note in chapter 2.3 updated. Rev. D 2021-03 Product illustrations updated to blue, text in illustrations removed, Westermo address updated, chapter 2.5.5 updated Ibex-RT-310 and -320 Series...
- Page 31 Westermo • Metallverksgatan 6, SE-721 30 Västerås, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com 6623-2270 REV. G 2021 10 Westermo Network Technologies AB, Sweden...
